3.1.9 Removing the cassette deck mechanism

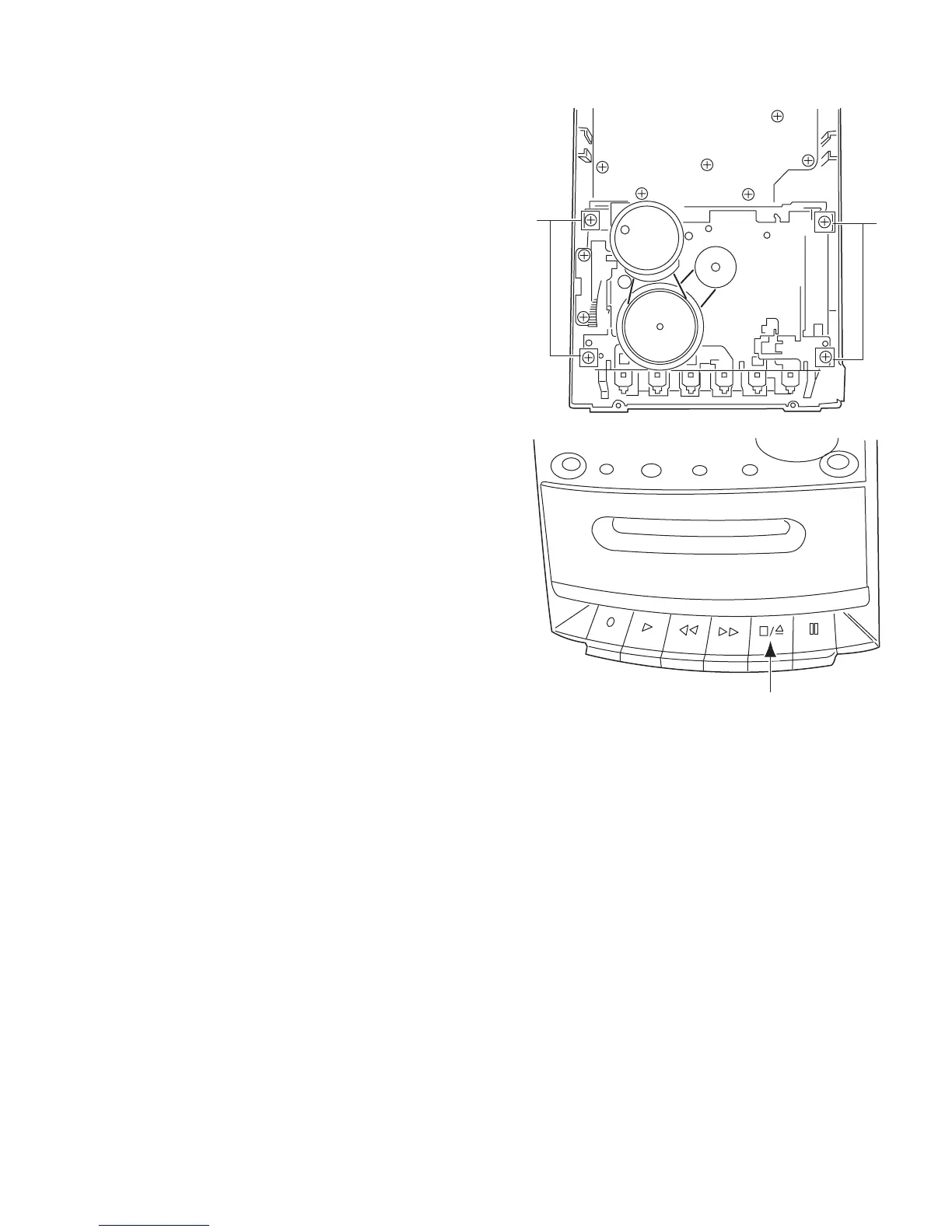

(See Fig.22 and 23)
• Prior to performing the following procedures, remove the rear
cover.
• Also remove the CD chassis assembly.
• Also remove the bottom base assembly.
(1) Remove the four screws J retaining the cassette deck
mechanism from the back of the front cabinet assembly.
Caution:
You must press the eject key before you remove the cassette
deck mechanism.
Fig.22
Fig.23
J
J
