1-8 (No.MB024)
3.1.3 Removing the CD player assembly
(See Fig.6,7)
• Prior to performing the following procedure, remove the rear
panel and the left and right side panels.
(1) Disconnect the card wires from the two connectors CN603
and CN604 on the CD servo control board.
(2) Remove the two screws D attaching the front panel as-
sembly on the both sides.
(3) Release the two joints a on the both sides of the front pan-
el assembly.
(4) Move the CD player assembly in the direction of the arrow.

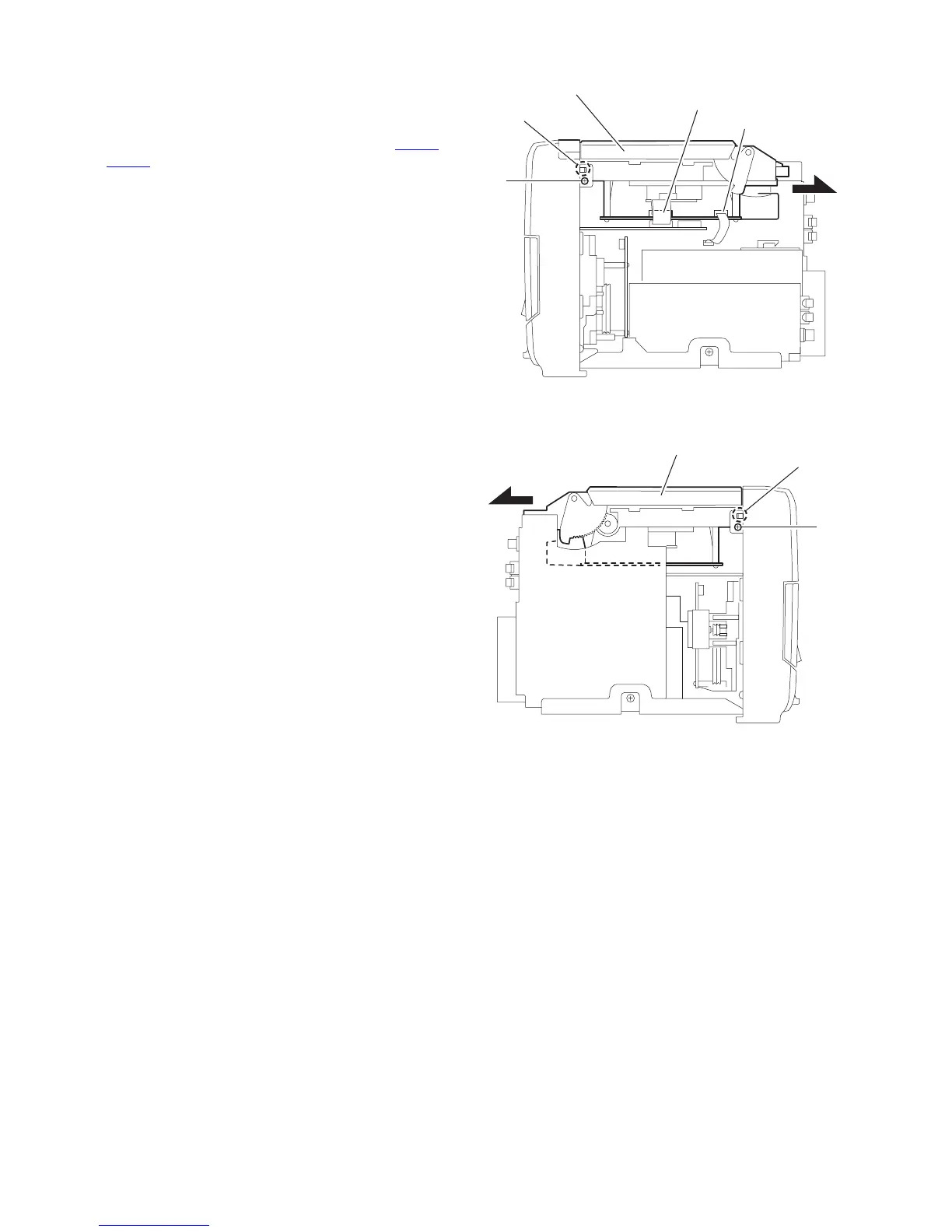

Fig.6
Fig.7
CD player assembly
CD servo control board
CN604
D
a
CN603
D
CD player assembly
a
