JVC UX-H300 Service Manual

1-10 (No.MB429)

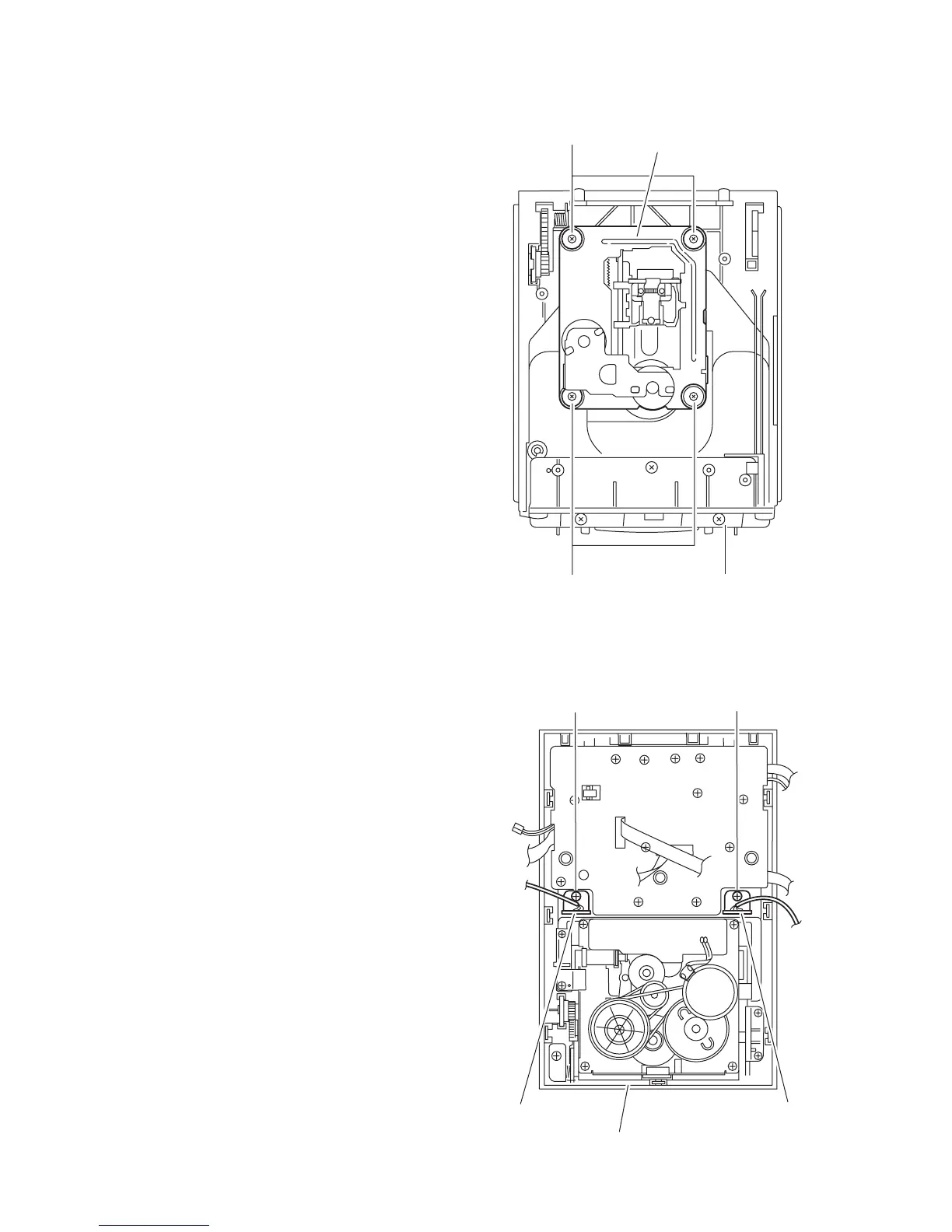

3.1.5 Removing the CD mechanism
(See Fig.14)
• Prior to performing the following procedure, remove the front
panel assembly, the main board, the CD mechanism assembly
and the CD mechanism board.
(1) Remove the four screws M attaching the CD mechanism.
Fig.14
3.1.6 Removing the headphone board/ AUX board
(See Fig.15)
• Prior to performing the following procedure, remove the front
panel assembly, the main board and the CD mechanism as-
sembly.
(1) Remove the screw N attaching the headphone board.
(2) Remove the screw P attaching the AUX board.
Fig.15
CD mechanism assembly
CD mechanism
M
M
Front panel assembly
A
UX board
Head phones board
P
N
