JVC UX-H300 Service Manual

(No.MB429)1-7

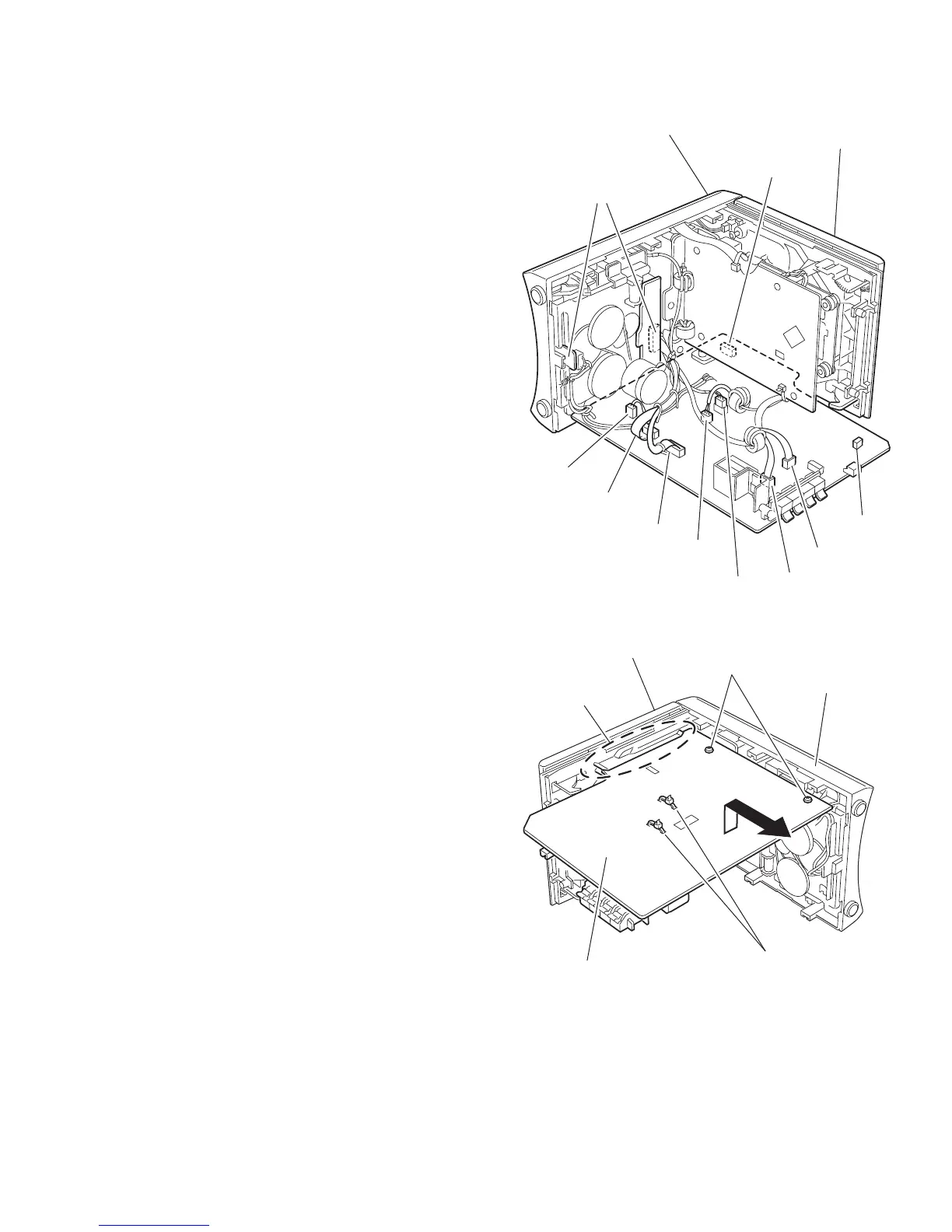

3.1.2 Removing the main board
(See Fig.7, 8)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Disconnect the wire from all connectors on the main board.
(2) Disconnect the wire from the two connectors on the cas-
sette mechanism assembly.
(3) Release the two bands attaching the wire to the main
board.
(4) Remove the two screws G from the front panel assembly.
Release the joint b.
Fig.7
Fig.8
CD mechanism assembly
CD mechanism assembly
Front panel assembly
CN203
CN481
Main board
CN303
CN602
CN301
CN401
CN102
CN603
CN103
Main board
Band
CD mechanism assembly
Front panel assembly
Joint b
G
