UX-J50
1-8 (No.22032)

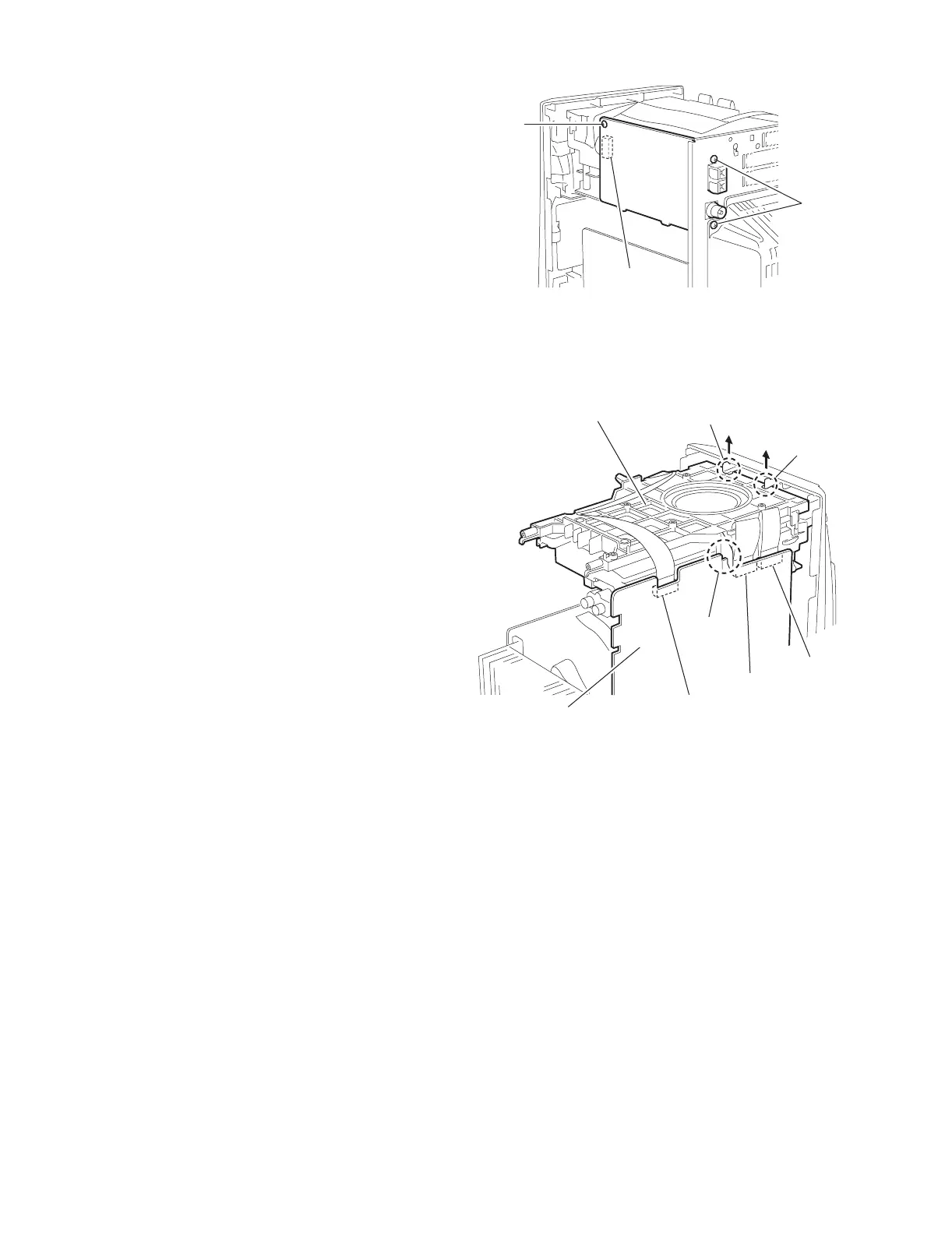

2.1.4 Removing the tuner board
(See Fig.7)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from the connector CN1 on the
tuner board.
(2) Remove the two screws F on the rear side and the screw
G in the side.
Fig.7
2.1.5 Removing the CD-R/RW mechanism assembly
(See Fig.8)
• Prior to performing the following procedure, remove the metal
cover, the rear cover, the rear panel and the tuner board.
(1) Disconnect the card wire from the connector CN903,
CN902 and CN904 on the main board.
(2) Pull the joint d in the direction of the arrow and remove the
CD-R/RW mechanism assembly backward while releasing
the joint e .
Fig.8
Tuner board
CN1
F
G
CN902
CN904
CN903
CD-R/RW mechanism assembly
Main board
d
d
e
