3.1.12 Removing the switch board
(See Fig.17,18)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws T attaching the switch board.
(2) Move the switch board in the direction of the arrow to
disconnect the wire from the connector CN762
and the
card wire from the connector CN761.
3.1.13 Remove the LCD board assembly
(See Fig.17)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws U attaching the LCD board
assembly.

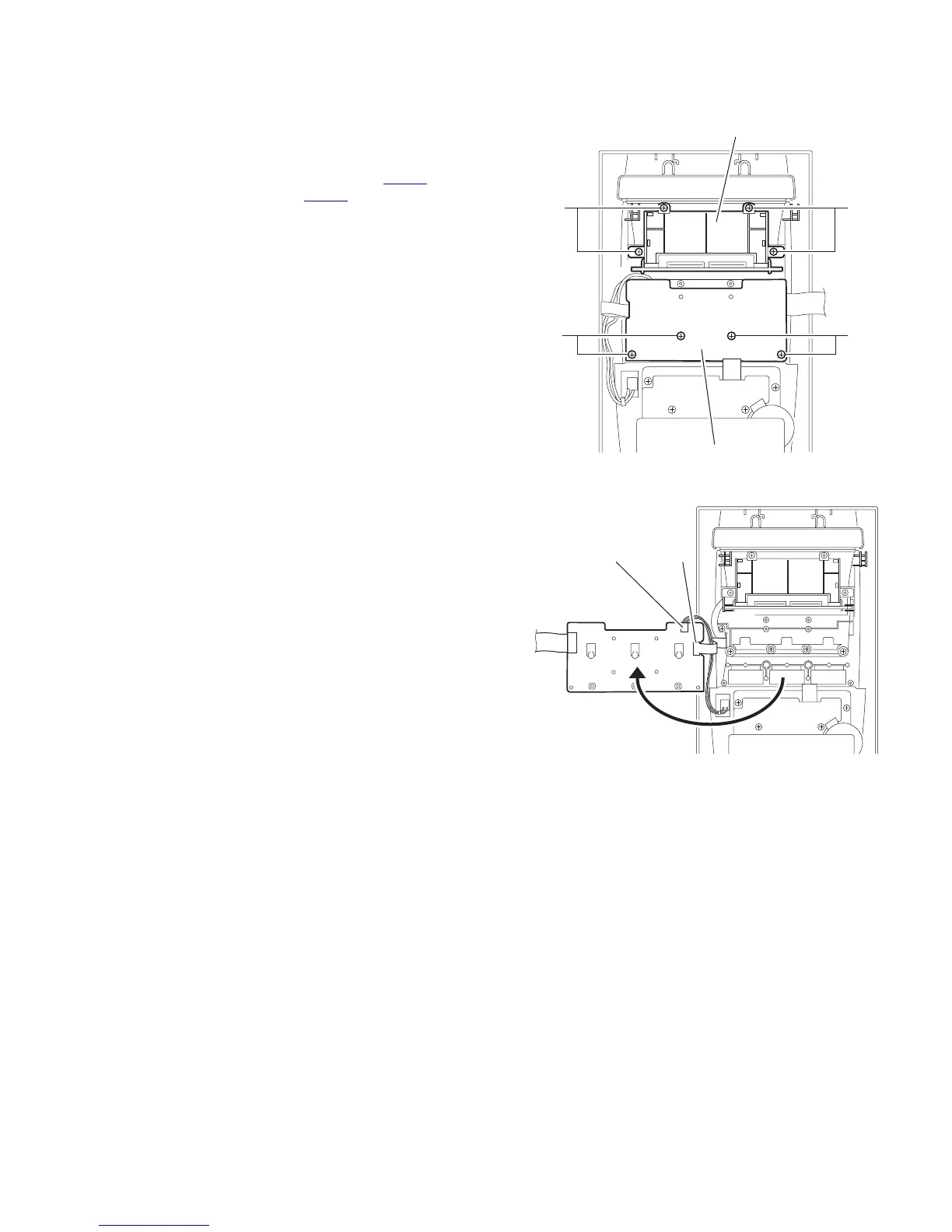

Fig.17
Fig.18
T
UU
T
Switch board
LCD board assembly
Switch board
CN762 CN761
