– 5 –
See pages in the parentheses for details.
Front Panel
1 STANDBY/ON button and STANDBY/ON lamp
(9, 17, 22)
2 Disc tray
3 For UX-L40R: SURROUND button (10)
For UX-L30R: REV.MODE (reverse mode) button (18 – 20)
4 REC (recording) button (19, 20)
5 Display window
6 VOLUME + / – control (10)
7 CD 3/8 (play/pause) button (9, 15, 17, 20)
Pressing this button also turns on the unit.
8 BASS button (10)
9 Cassette holder
p PHONES jack (10)
q Remote sensor
w 0 (disc tray open/close) button (15)
Pressing this button also turns on the unit.
e AHB (Active Hyper Bass) PRO button (10)
r CLOCK/TIMER button (9, 21, 22)
t AUX/MD button (9)
Pressing this button also turns on the unit.
y TAPE 2 3 button (9, 18, 19)
Pressing this button also turns on the unit.
u FM/AM button (9, 11, 12)
Pressing this button also turns on the unit.
i TREBLE button (10)
o 0 PUSH OPEN (cassette holder open) portion (18 – 20)
; Multi operation buttons
• 4 (reverse skip)/DOWN, 7 (stop)
and ¢ (forward skip)/UP

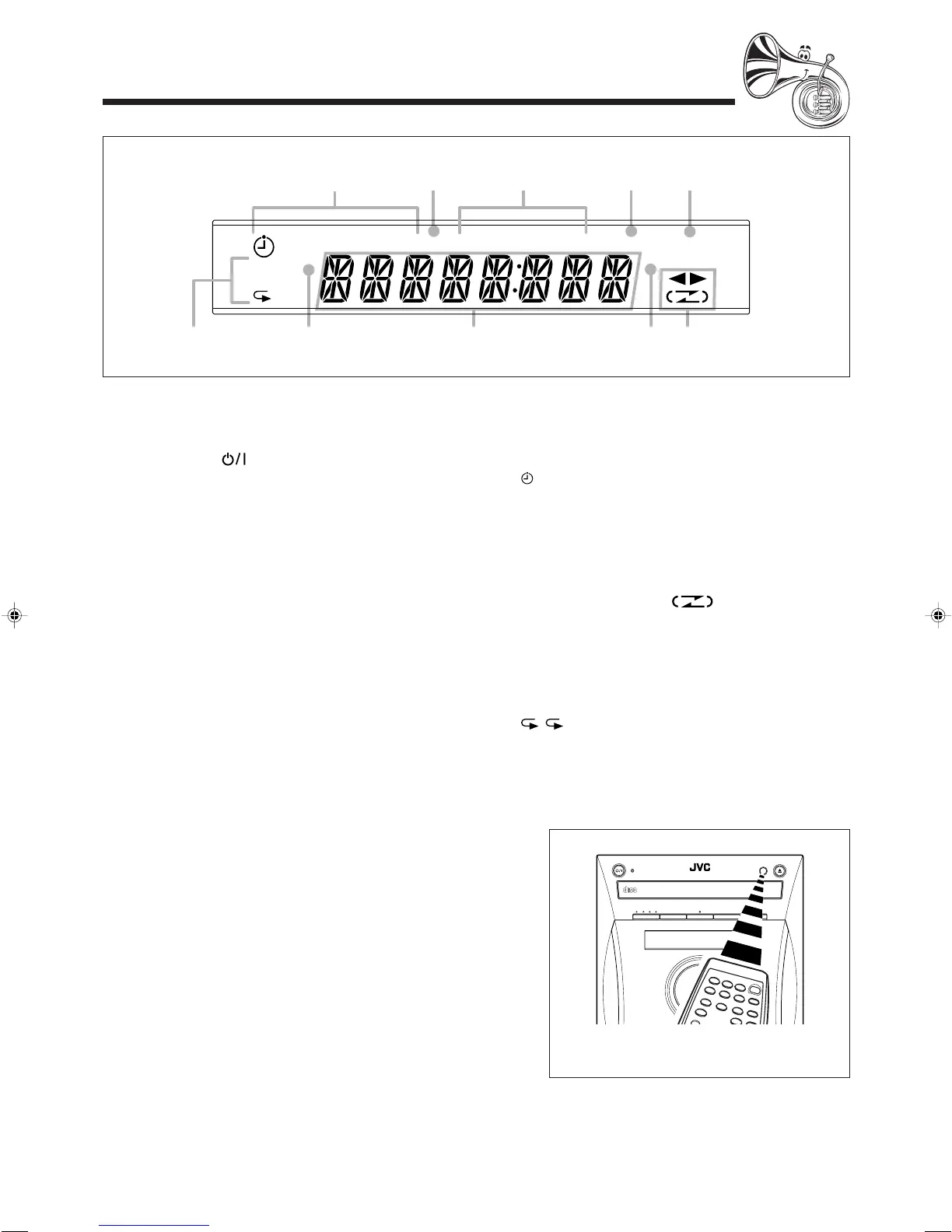

Display Window
Display Window
1 Timer indicators
• (timer), DAILY, REC and SLEEP
2 REC (recording) indicator
3 RDS operation indicators
• RDS and TA/News/Info
4 SURROUND indicator (ONLY FOR UX-L40R)
5 BASS indicator
6 Tape operation indicators
• 2 3 (tape direction) and (reverse mode)
7 MONO indicator
8 Main display
• Shows the source name, frequency, etc.
9 ST (stereo) indicator
p CD play mode indicators
• PRGM (program), RANDOM and
/ ALL (repeat one/repeat all)
[
DAILY REC SLEEP
]
REC
ST
PRGM
RANDOM
ALL
RDS
[
TA News Info
]
SURROUND
BASS
MONO
1
32
4
8
p
5
679
STANDBY / ON
COMPACT
DIGITAL AUDIO
CD-R / RW PLAYBACK
REC SURROUND AHB PRO
VOLUME
MICRO COMPORNENT SYSTEM UX-L40R
CLOCK/TIMER AUX/MD
When using the remote control, point it at
the remote sensor on the front panel.
EN01-14_UX-L40R&30R[B]f 02.1.8, 4:01 PM5
