JVC UX-L30UJ Service Manual

1-6
UX-L40R/UX-L30R
Remove the six screws A on the back of the main
body.
Remove the screw B on each side and remove the
cover in the direction of the arrow.
1.
2.
Disassembly method
<Main body>
Removing the Metal cover
(See Fig.1 to 3)

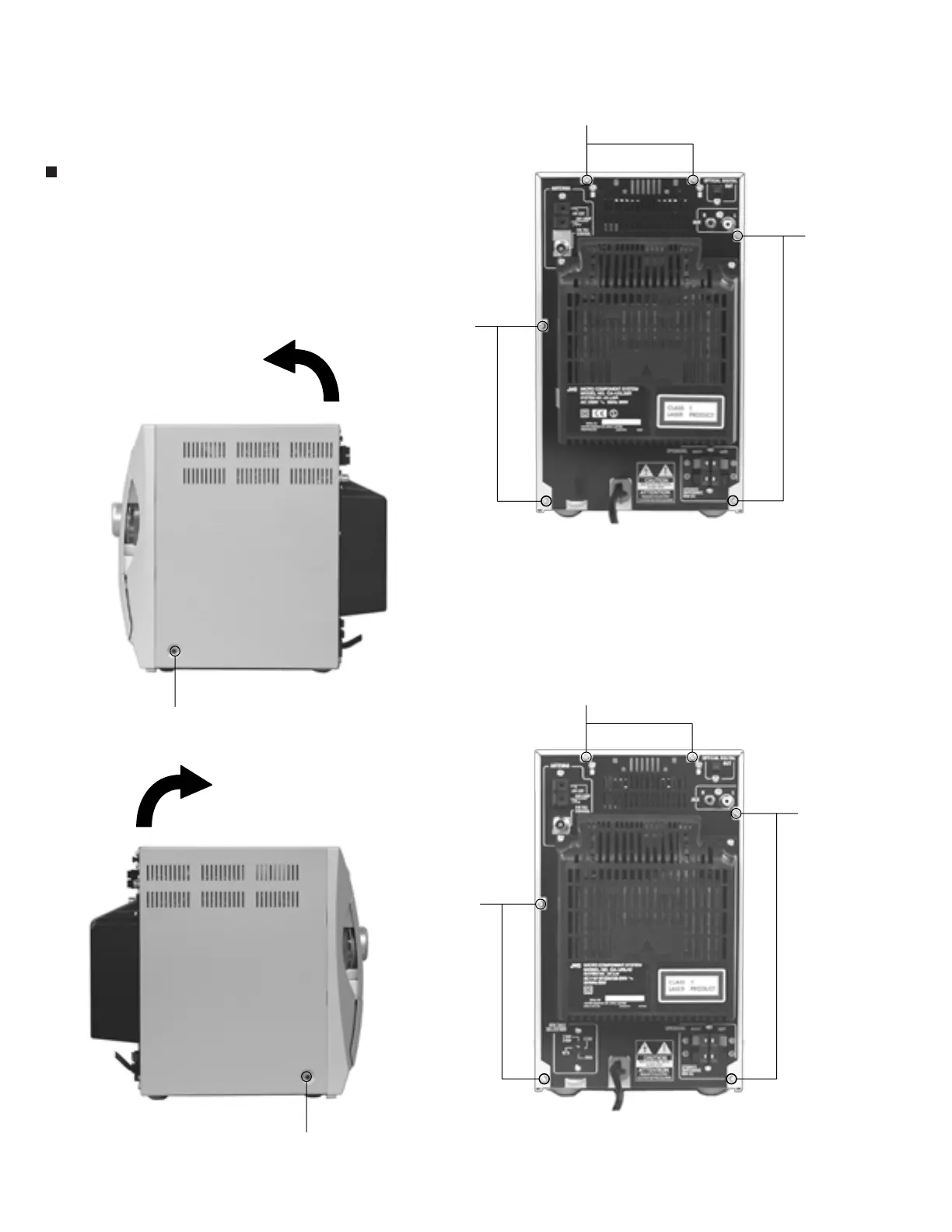

Fig.1(UX-L30RE)
Fig.1(UX-L40RE)
Fig.2
Fig.3
B
B
A
A
A
A
A
A
