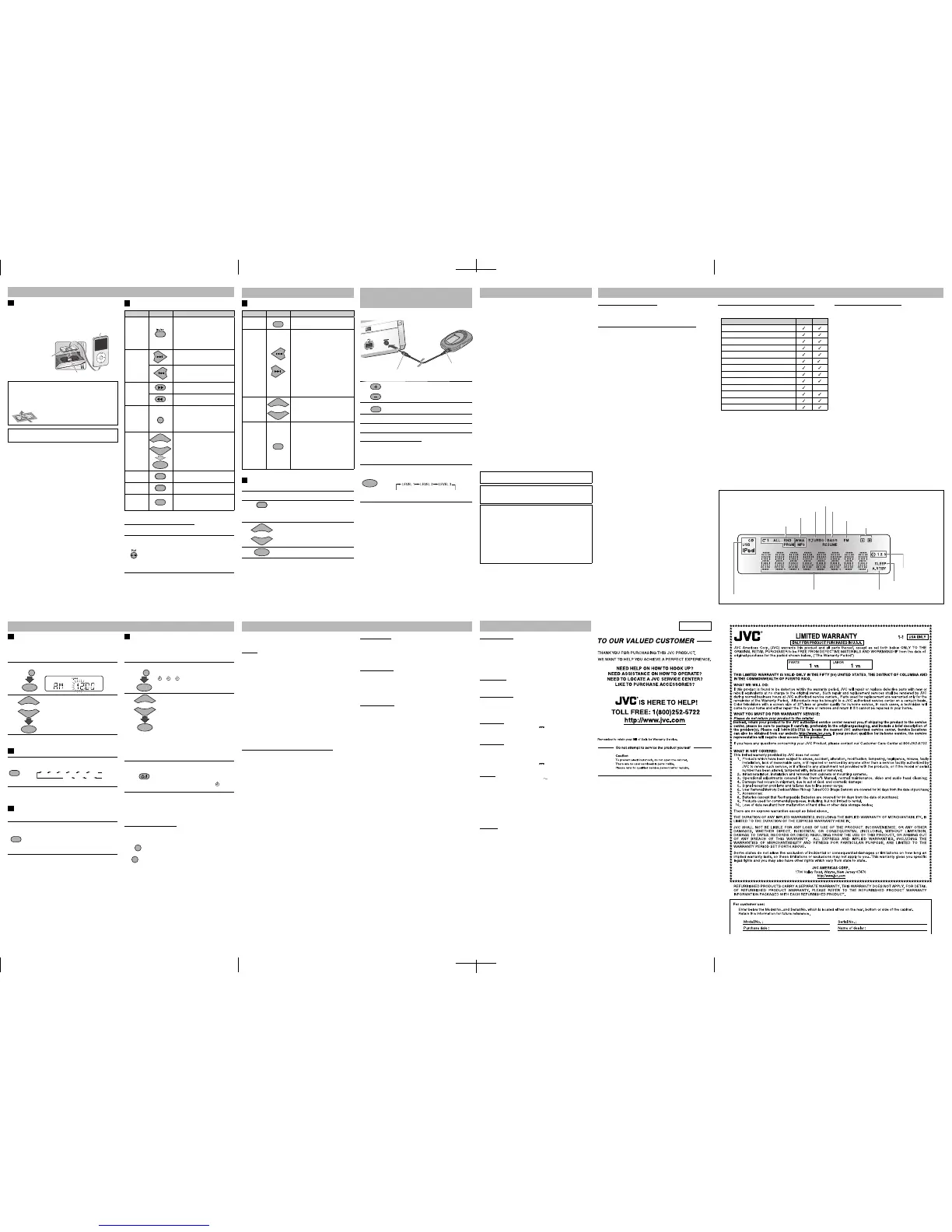

Setting the Clock
Without setting the built-in clock, you cannot use Daily
Timer and Sleep Timer.
• “AM12:00” flashes on the main display until you set the
clock.
1
Press and hold to activate the clock
setting mode.
2
Adjust the hour, then the minute.
• To go back to the previous step, press MENU/CANCEL.
Setting the Sleep Timer
Press repeatedly to specify the time (in minutes) as
follows:
10 20 30 9060 120
150180OFF
The SLEEP indicator lights up.
• To check the remaining time until the System shuts off,
press once.
Turning Off the System Automatically
—AUTO STANDBY
(only for CD/USB)
Press and hold until the A.STBY indicator lights on
the display.
• The A.STBY indicator starts flashing after playback
stops.
If no operation is done for about 3 minutes, the
System turns off.
To cancel this function, press and hold again.
Setting the Daily Timer
Using Daily Timer, you can wake up with your favorite music.
• You can store three Daily Timer settings.
• Tune into a station, place a CD, or connect a USB mass
storage class device/iPod to the System beforehand.
1
Press CLOCK/TIMER repeatedly to
display the desired Daily Timer number (
1/ 2/ 3 lights up), then press SET
during DAILY 1, DAILY 2 or DAILY 3 is
displayed.
2
1 Adjust the hour then the minute for
on-time.
2 Adjust the hour then the minute for
off-time.
3 Select the playback source—“CD,”
“USB,” “TUNER FM,” or “IPOD.”
4 Select the volume.
• You can select the volume level
–“VOLUME 0” (VOL MIN) to
“VOLUME 40” (VOL MAX). If you
select “VOLUME – –,” the volume
is set to the last level when the
System is turned off.
3
Turn off the System.
• When the on-time comes, the System
sets the volume gradually to the preset
level.
• While Daily Timer is activated,
indicator lights on the display.
• To exit from the timer setting, press MENU/CANCEL as
required.
• To correct a misentry during the process, press MENU/
CANCEL. You can return to the previous step.
To Turn Off the Daily Timer
1 Press repeatedly to select “DAILY 1,” “DAILY 2,” or
“DAILY 3.”
Basic Tuner Operations
To Press Indication/Result
Select FM
band
Press repeatedly until FM band is
selected.
Select a
frequency
or
Press and hold for more than 2
seconds.
The System starts searching for
stations and stops when a station
of sufficient signal strength is
tuned in.
• If an FM program is broadcast
in stereo, the ß (stereo)
indicator lights up (only when
the reception is good).
• Press during searching to stop.
• Press repeatedly to change the
frequency step by step.
Tune in to
a preset
station
Press to select its preset number.
• For presetting stations, see
below.
Change
the FM
reception
mode
(When an
FM stereo
broadcast
is hard to
receive)
Press to improve reception.
The ˜ (mono) indicator lights
up.
Stereo effect will be lost.
To restore the stereo effect,
press again.
Presetting Stations
You can preset 30 FM stations manually.
1
Tune in to a station you want to preset.
2
Press to activate the preset number entry
mode.
• Finish the following steps while the
indication on the display is flashing.
3
Press to select a preset number for the
station you want to store.
4
Press to store the station.
5 7
6 8
Maintenance
Specifications
Listening to Other
Equipment
Learning More about This System
Listening to an iPod/Viewing Images on the iPod (see
page 5)
• Compatible iPod models:
Made for Audio Video
iPod touch (4th generation)
iPod touch (3rd generation)
iPod touch (2nd generation)
iPod touch
iPod classic
iPod nano (6th generation) *
iPod nano (5th generation)
iPod nano (4th generation)
iPod nano (3rd generation)
iPod nano (2nd generation) –
iPhone 4
iPhone 3GS
iPhone 3G
* Only for still picture
• Sound distortion may occur when playing back audio
sources with high recording levels. When distortion occurs,
it is recommended to turn off the equalizer of the iPod. For
information on operating the iPod, see the iPod instruction
manual.
To get the best performance of the System, keep your discs
and mechanism clean.
Handling discs
• Remove the disc from its case by holding it at the edge
while pressing the center hole lightly.
• Do not touch the shiny surface of the disc, or bend the disc.
• Put the disc back in its case after use.
• Be careful not to scratch the surface of the disc when
placing it back in its case.
• Avoid exposure to direct sunlight, temperature extremes,
and moisture.
To clean the disc:
• Wipe the disc with a soft cloth in a straight line from center
to edge.
Cleaning the System
• Stains should be wiped off with a soft cloth. If the System is
heavily stained, wipe it with a cloth soaked in water-diluted
neutral detergent and wrung well, then wipe clean with a
dry cloth.
• Since the System may deteriorate in quality, become
damaged or get its paint peeled off, be careful about the
following:
– DO NOT wipe it hard.
– DO NOT wipe it with thinner or benzine.
– DO NOT apply any volatile substance such as insecticides
to it.
– DO NOT allow any rubber or plastic to remain in contact
for a long time.
JVC bears no responsibility for any loss of data in USB mass
storage class device or iPod while using this System.
Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
• “Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and has been
certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of
this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with
iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
Setting the Clock and Using Timers
Amplifier section
OUTPUT POWER:
35 W per channel, min. RMS, driven into 4 Ω at 1 kHz with no
more than 10% total harmonic distortion
Speaker Impedance: 6 Ω – 16 Ω
Audio input: AUDIO IN: STEREO MINI x 1
Digital input: USB MEMORY
Tuner section
FM tuning range: 87.5 MHz - 108.0 MHz
CD player section
Dynamic range: 88 dB
Signal-to-noise ratio: 85 dB
Wow and flutter: Immeasurable
iPod section
iPod output power: DC 5 V 1 A
VIDEO OUT: Composite
USB storage
USB specification: Compatible with USB 2.0 Full Speed
Compatible device: Mass storage class
Compatible file system: FAT16, FAT32
Bus power supply: DC 5 V 500 mA
General
Power requirements: AC 120 V , 60 Hz
Power consumption: 35 W (power on)
Approx. 8 W (Daily Timer mode)
0.50 W or less (standby mode)
Dimensions (approx.): 165 mm x 259 mm x 258 mm
(6-1/2 inches x 10-1/4 inches x 10-
3/16 inches) (W x H x D)
Mass (approx.): 2.0 kg (4.4 lbs)
Speakers
Speaker units: 10 cm (3-15/16 inches) x 1; 1.5 cm
(5/8 inch) x 1
Impedance: 6 Ω
Dimensions (approx.): 140 mm x 250 mm x 188 mm
(5-9/16 inches x 9-7/8 inches x 7-
7/16 inches) (W x H x D)
Mass (approx.): 1.4 kg (3.1 lbs) each
Specifications and appearance are subject to change without
prior notice.
Stereo mini plug cord (not supplied)
1
Turn the volume to minimum.
2
Press repeatedly to select “AUDIO IN.”
3
Start playing the connected equipment.
4
Adjust the volume.
To Adjust the Audio Input Level
If the sound from the other equipment connected to the
AUDIO IN jack is too loud or too quiet, you can change
the audio input level through the AUDIO IN jack (without
changing the volume level).
Press and hold for more than 2 seconds while
“AUDIO IN” is selected as the source.
You can select one of three levels as follows:
As the number increases, the sound becomes
louder.
Basic and Common Operations (see page 3)
• Pressing one of the source buttons also turns on the System
and starts playing back if the source is ready or connected.
Playing Back a Disc/USB Mass Storage Class Device
(see page 4)
• This System cannot play “packet write” discs.
• For MP3/WMA playback...
– In this manual, “file” and “track” are interchangeably used
for MP3/WMA operations.
– This System can show the Tag data (Version 1).
– MP3/WMA discs are required a longer readout time than
regular CDs. (It depends on the complexity of the group/
file configuration.)
– Some MP3/WMA files cannot be played back and will be
skipped. This result from their recording processes and
conditions.
– When making MP3/WMA discs, use ISO 9660 Level 1 or
Level 2 for the disc format.
– This System can play back MP3/WMA files with the
extension code <.mp3> or <.wma> (regardless of the
letter case—upper/lower).
– It is recommended that you make each MP3/WMA file at a
sampling rate of 44.1 kHz and at bit rate of 128 kbps. This
System cannot play back files made at bit rate of less than
64 kbps.
– Playback order of MP3/WMA tracks may be different from
the one you have intended while recording. If a folder
does not include MP3/WMA tracks, they are ignored.
• Do not use the following USB devices...
– Whose rating is other than 5 V and exceeds 500 mA.
– Equipped with special functions such as data security
functions.
– Divided by 2 or more partitions.
• For the USB mass storage class device playback...
– When connecting a USB mass storage class device, also
refer to its manual.
– Connect one USB mass storage class device to the System
at a time. Do not use a USB hub.
– This System is compatible with USB 2.0 Full Speed.
– You can play back MP3/WMA files in a USB mass storage
class device (maximum data transfer rate: 2 Mbps).
– You cannot play back a file larger than 2 Gigabyte.
– This System may not play back some USB mass storage
class devices and does not support DRM (Digital Rights
Management).
• This System can recognize up to 255 groups in a disc. The
total number of groups and tracks (in a disc) that can be
recognized by the System is 512 (for MP3/WMA).
• This System can recognize up to 99 groups and 999 tracks
(with a maximum number of 255 tracks in a group) in a USB
mass storage class device.
iPod Operations
The iPod does not play, but “CONNECT” appears on the
display.
\ The iPod battery is low or exhausted. Charge the iPod
battery.
Radio Operations
Hard to listen to broadcasts because of noise.
\ Antenna connections are incorrect or loose.
\ The FM antenna is not properly extended and positioned.
\ Electrostatic discharge from your body may cause noise. If
this happens, turn off and on the System again.
Timer Operations
Daily Timer does not work.
\ The System has been turned on when the on-time comes.
Timer starts working only when the System is turned off.
Display Information
Play mode indicators (See page 4.)
Main display A.STBY (Auto Standby) indicator (See page 6.)
Timer mode indicators
(See page 6.)
SLEEP indicator (See page 6.)
File type indicators (See page 4.)
FM reception indicators (See page 5.)
Tuner indicator
S.TURBO (Sound Turbo) indicator (See page 3.)
Front view
LVT2263-002A EN_UX-LP55[J/C]1
RESUME indicator (See page 4.)
To audio output (or
headphone out, etc.)
Digital Audio Player, etc.
BASS indicator (See page 3.)
Listening to an iPod/Viewing Images on the iPod
Connecting an iPod
Push PUSH-OPEN to open the direct dock for iPod.
Front view
To detach the dock adapter from the dock:
Pull up the dock adapter with your fingernail or sharp
pointed tool using the slot.
• Be careful not to injure your fingertips or damage the
terminal of the dock.
When the iPod touches the unit, attach the protection
sheet (supplied) to the panel of the unit.
• Use the Dock adapter (supplied with your iPod or to be
purchased) when connecting an iPod.
• When you close the direct dock, remove the dock adapter.
• Be sure to reduce the volume on the System to the
minimum level before connecting an iPod. Adjust the
volume after starting playback.
• DO NOT connect or disconnect the iPod when the System
is turned on.
• You cannot send any data to your iPod from the System.
• Do not carry the System with the iPod connected. You
might drop it or it might cause damages to the iPod dock.
• Do not touch or hit the iPod terminal pins or connector
pins in the iPod dock directly. It might cause damages to
the connector part.
• Before viewing a video/picture from your iPod on your
monitor, make the appropriate video setting on the iPod.
For details of the setting, see the instruction manual for
iPod.
Basic iPod Operations
To Press Indication/Result
Play back
an iPod
The System detects the iPod
and starts playback.
• During playback, press again
to pause.
• To turn off the iPod, press
and hold.
Select a
track
Press to select the next tracks
during playback.
Press to go back to the
beginning of the current or
previous tracks during playback.
Forward
search/
Reverse
search
Press and hold to fast-forward
the track during playback.
Press and hold to fast-reverse
the track during playback.
Display the
menu/Go
back to the
previous
menu
—
Select an
item on
the menu
• The UP/DOWN buttons work
in the same way as operating
the click wheel of iPod
counterclockwise/clockwise.
(Refer to the instruction
manual for the iPod for
details.)
Play back
at random
• Refer to the instruction
manual for the iPod for details.
Play back
repeatedly
• Refer to the instruction
manual for the iPod for details.
Change
display
information
Press repeatedly.
Setting the video output of the iPod
Before playing a video, select the appropriate video output
to view a video/picture on the monitor or the iPod.
Press and hold for more than 2 seconds to
switch the video output when the System
is turned on. (“VOUT ON” is selected when
shipped from the factory.)
• VOUT ON: Displays video/picture on the
connected monitor.
• VOUT OFF: Displays video/picture on the iPod.
Source indicators
Listening to FM Broadcasts
If you are having a problem with your System, check this list
for a possible solution before calling for service.
General
Power does not come on.
\ Power plug is not inserted securely. Plug in securely.
Adjustments or settings are suddenly canceled before you
finish.
\ There is a time limit. Repeat the procedure again.
Operations are disabled.
\ The built-in microprocessor may malfunction due to
external electrical interference. Unplug the AC power cord
and then plug it back in.
Unable to operate the System from the remote control.
\ The path between the remote control and the remote
sensor on the System is blocked.
\ The batteries are exhausted.
No sound is heard.
\ Speaker connections are incorrect or loose.
\ Headphones are connected.
Disc/USB Mass Storage Class Device Operations
The disc/USB mass storage class device does not play.
\ The disc is placed upside down. Place the disc with the
label side up.
\ The disc is recorded with the “packet writing (UDF file
system).” It cannot be played. Check the files you want to
play back.
\ The USB mass storage class device is not connected
properly.
MP3/WMA groups and tracks are not played back as you
expect.
\ Playing order is determined when the groups and tracks
were recorded. It depends on the writing application.
The disc/USB mass storage class device sound is
discontinuous.
\ The disc is scratched or dirty.
\ MP3/WMA files have not been properly copied into the
USB mass storage class device.
Sounds from USB mass storage class device are interrupted.
\ Noise and static electricity may stop the sound. In this
case, disconnect and connect the USB mass storage class
device again after turning off the System.
The disc tray does not open or close.
\ The AC power cord is not plugged in.
\ Disc ejection is prohibited (see page 4).
Troubleshooting
Setting the Clock and Using Timers (see page 6)
• You can set the clock and Daily Timer while the System
is turned on. While setting the clock or Daily Timer, the
display is turning on.
• The clock may gain or lose 1 to 2 minutes per month. If this
happens, readjust the clock.
• When you unplug the AC power cord or if a power failure
occurs, the clock and the timer will be canceled. You need
to set the clock first, then the timer again.
Timer Priority:
• If you activate the Sleep Timer after Daily Timer starts
playing the selected source, Daily Timer is canceled.
Connector pins
Apple iPod
(separately
purchased)
Insert the iPod directly
to the connector pins.
Dock adapter (supplied
with the iPod or sold
separately)
USA ONLY
BT-51018-6
(1008)
To Previous Page
Loading...
Need help?
General
