1-8 (No.MB049)
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the metal cover

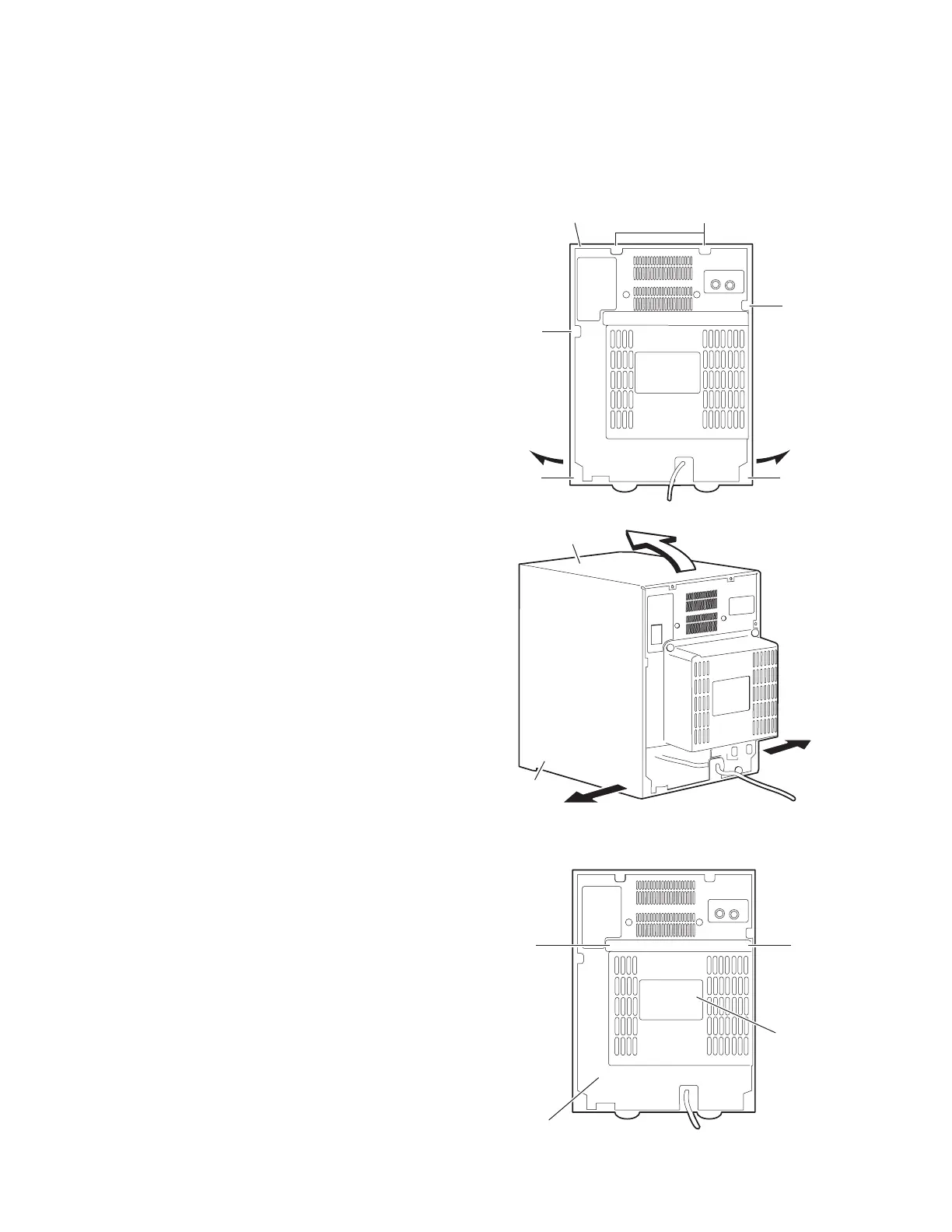

(See Fig.1 and 2)
(1) Remove the six screws A on the back of the body.
(2) Remove the two screws B on the side of the body.
(3) Pull both sides of the metal cover outward and lift the rear
part of the cover.
Fig.1
Fig.2
3.1.2 Removing the rear cover
(See Fig.3)
Prior to performing the following procedure, remove the metal
cover.
(1) Remove the two screws C on the back of the body.
Fig.3
A
A
A
A
A
Metal cover
Metal cover
B
x2
C
Rear cover
Rear panel
C
