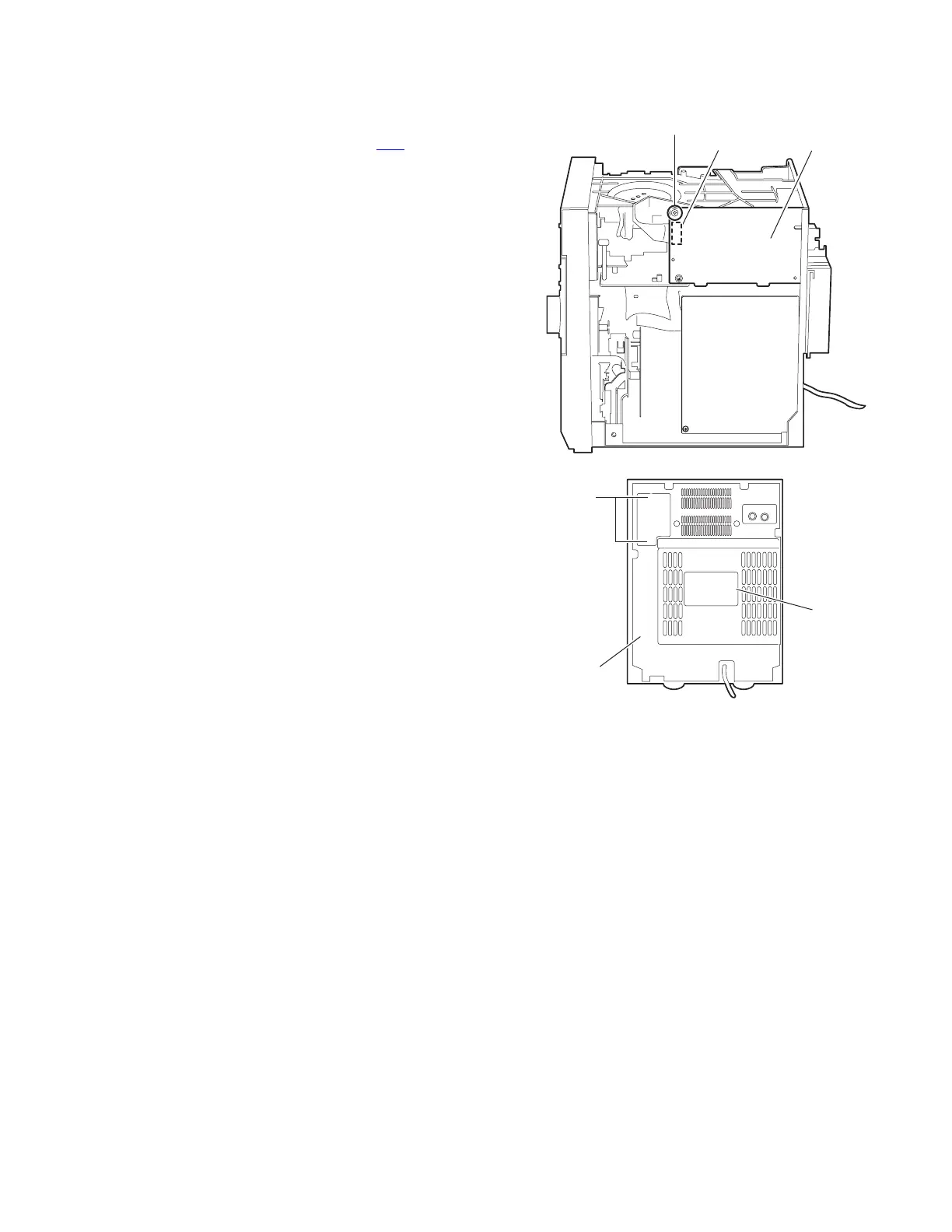

3.1.3 Removing the tuner board
(See Fig.4 and 5)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from connector CN1
on the tuner
board.
(2) Remove the screw D on the right side of the body.
(3) Remove the two screws E on the rear panel.
Fig.4
Fig.5
D
CN1
Tuner board
E
Rear cover
Rear panel
