JVC UX-P30 Series Service Manual

1-10 (No.MB049)
3.1.4 Removing the CD mechanism assembly
(See Fig.6 to 8)
• Prior to performing the following procedure, remove the metal
cover and the rear cover.
(1) Disconnect the card wires from connector CN903, CN904
on the main board on the upper side of the body.
(2) Remove the screw D attaching the tuner board and the CD
mechanism on the right side of the body.
(3) Remove the two screws F attaching the rear panel and the
CD mechanism on the back of the body.
(4) Move the rear part of the CD mechanism assembly
upwards to disengage the two joints a and release from the
rear panel. Pull the front panel toward the front and move
the rear part of the CD mechanism assembly upwards.
Then pull out the CD mechanism assembly from the front
panel backward.
REFERENCE:
To remove the CD mechanism assembly efficiently,
disconnect the card wireconnecting the tuner board with the
main board in advance.

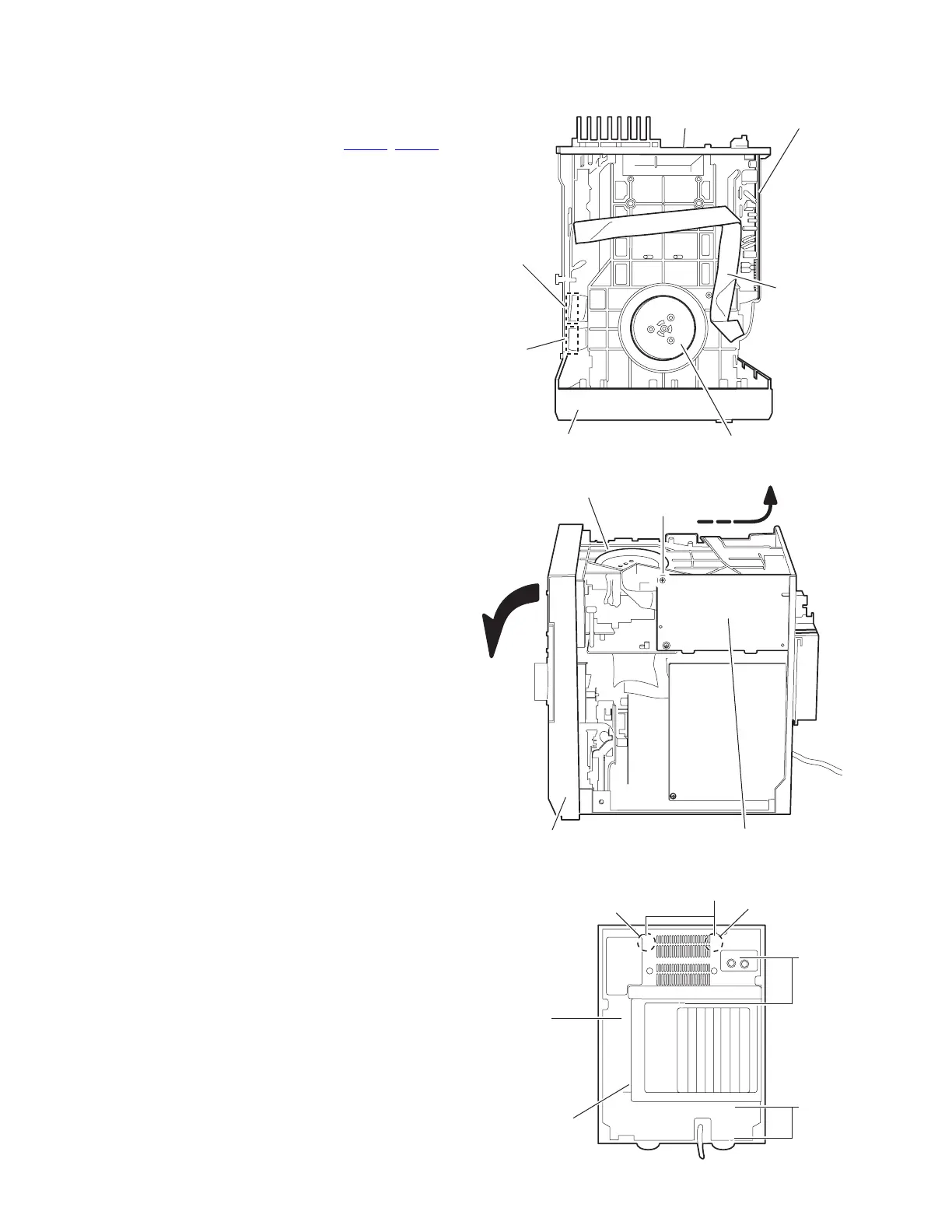

Fig.6
Fig.7
Fig.8
Front panel assembly
CD mechanism assembly
Tuner board
Main board
CN904
Card wires
CN903
Rear panel
D
Front panel assembly
CD mechanism assembly
Tuner board
F
G
G
Rear panel
Joint a
Joint a
G
