JVC UX-P400

(No.MB262)1-11

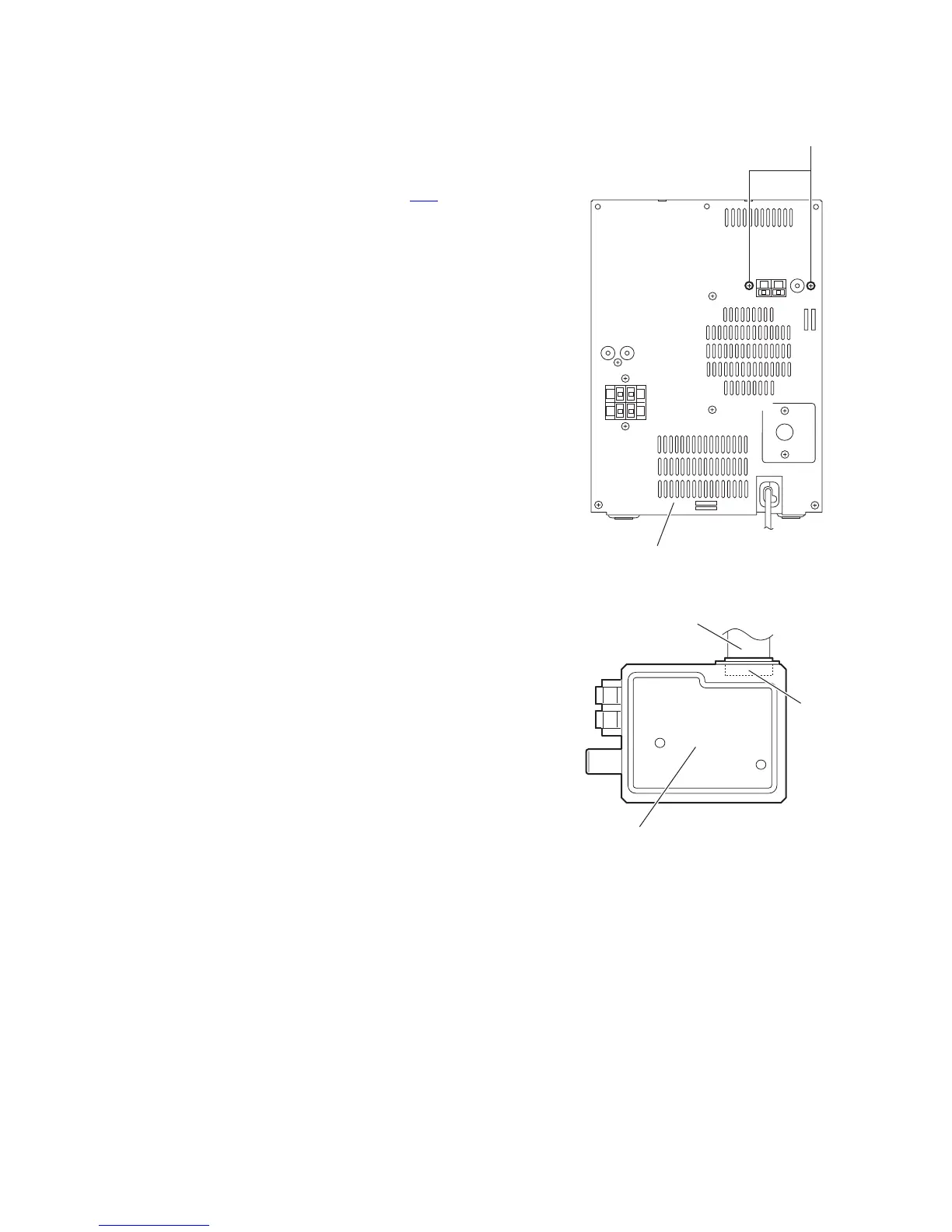

3.1.5 Removing the tuner
(See Figs.12 and 13)
• Prior to performing the following procedures, remove the side
panel L.
(1) From the back side of the main body, remove the two
screws F attaching the tuner to the rear panel. (See
Fig.12.)
(2) Disconnect the card wire from the connector CN1
on the
tuner. (See Fig.13.)
Fig.12
Fig.13
F
Rear panel
Card wire
CN1
Tuner
