JVC XV-521BK Service Manual

XV-521BK/523GD/525BK/421BK
1-13
It is not necessary to remove the traverse
mechanism unit.
Solder soldering d on the flexible board next to the
pickup unit.
From the bottom of the traverse mechanism unit,
disconnect the flexible wire from CN10 on the pickup
board.
1.
2.
Unsolder soldering h, i and j of each harness on the
pickup board.
Remove the screw E attaching the pickup board and
release the two joints k.
3.
4.

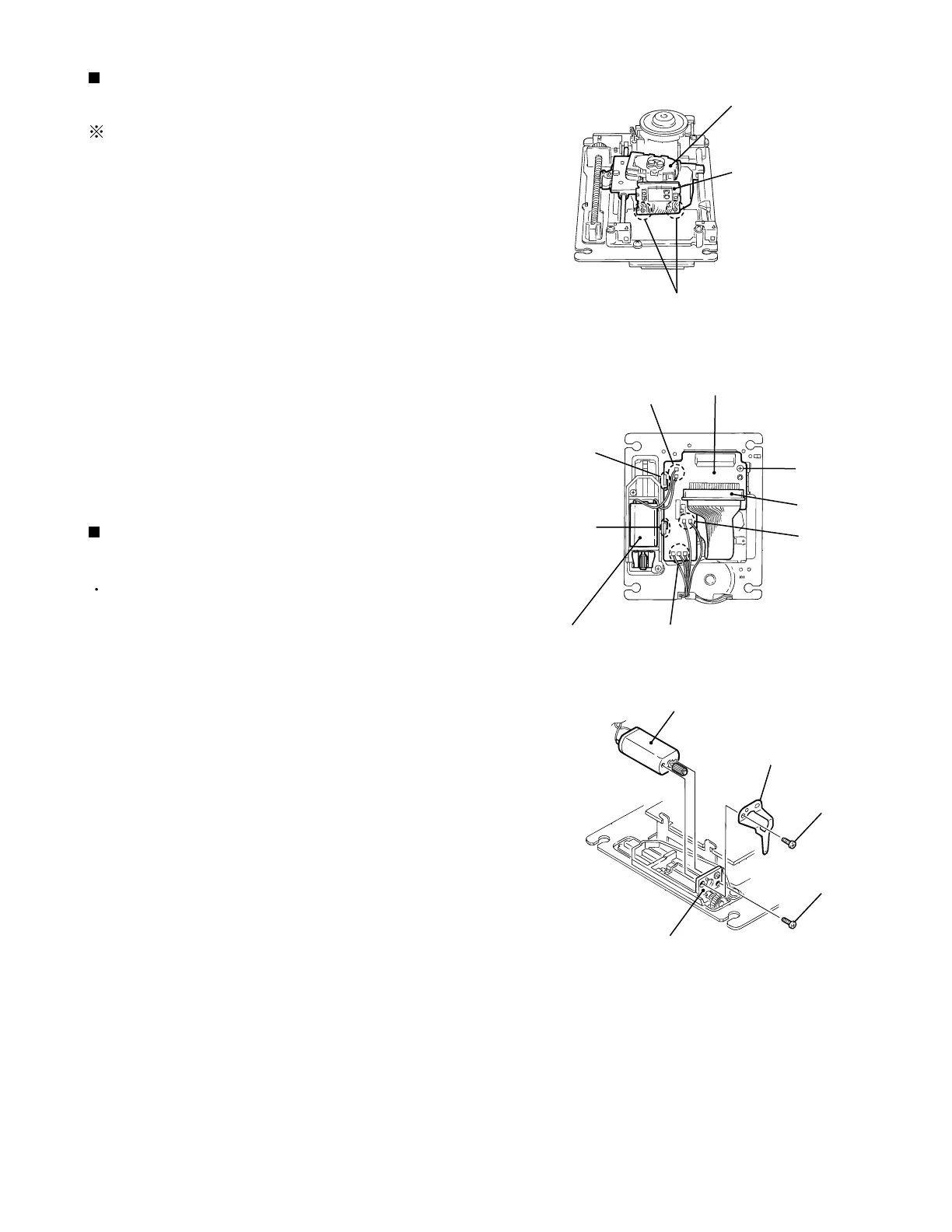

Removing the pickup board
(See Fig.5 and 10)
Disconnecting the flexible wire without
soldering may cause damage to the
pickup.
ATTENTION:
Prior to performing the following procedure, remove
the traverse mechanism unit.
Solder soldering d on the flexible board next to the
pickup unit.
From the bottom of the traverse mechanism unit,
disconnect the flexible wire from CN10 on the pickup
board.
1.
2.
Unsolder soldering h of the motor harness on the
pickup board.
Remove the two screws F attaching the feed motor
assembly and remove the thrust spring. Move the
feed motor assembly in the direction of the arrow to
pull it out from the feed holder.
3.
4.
Removing the feed motor assembly
(See Fig.5, 10 and 11)
Disconnecting the flexible wire without
soldering may cause damage to the
pickup.
ATTENTION:
Fig.10
Fig.11
Pickup board
Feed motor assembly
Feed motor assembly
Thrust spring
Feed holder assembly
CN10
i
j
h
Joint k
Joint k
E
F
Fig.5
Pickup unit
Flexible board
d
F
