XV-521BK/523GD/525BK/421BK
1-5
Remove the four screws A on both side of the body.
Remove the two screws B on the back of the body.
Lift up the rear part of the top cover while pulling the
lower part of the sides, then detach upward.
1.
2.
3.

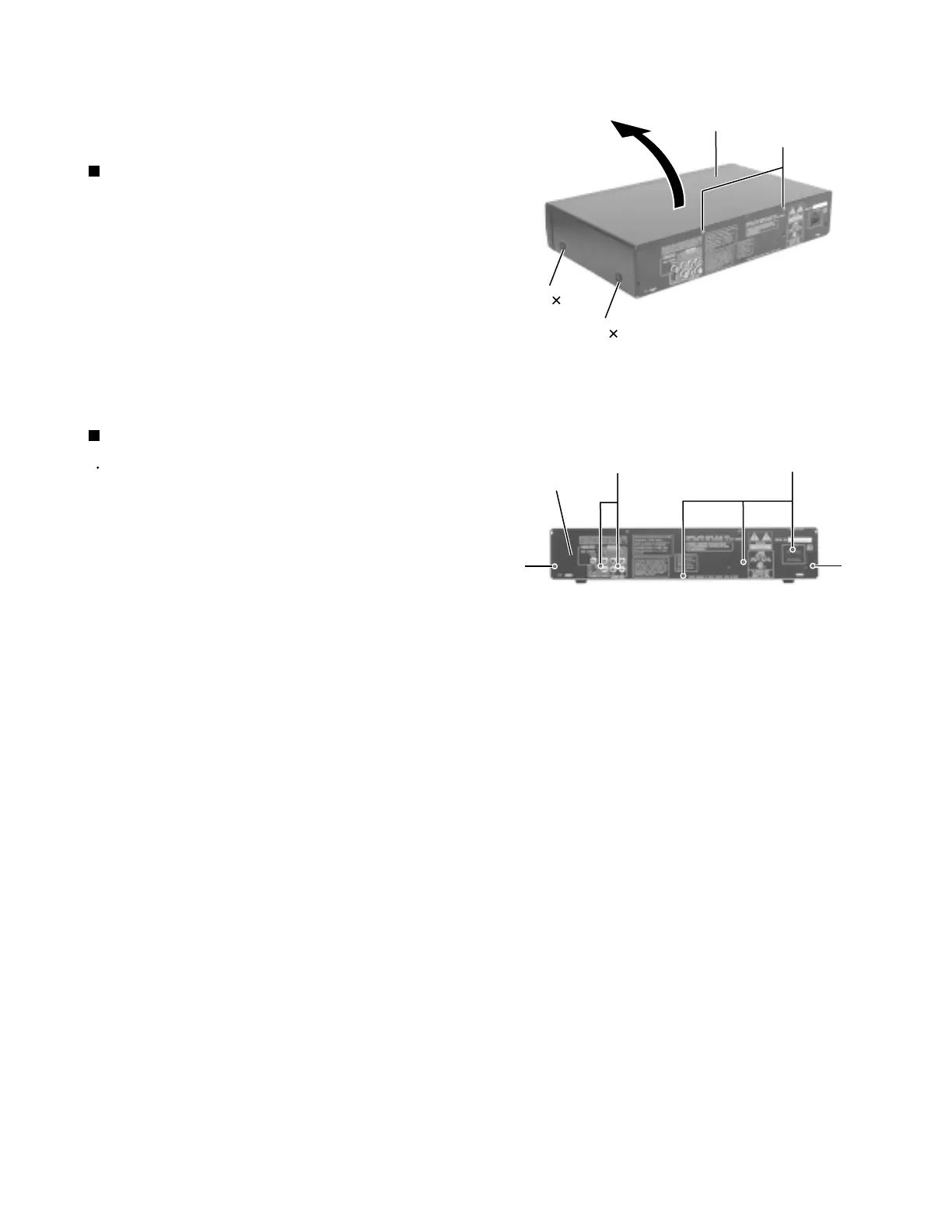

Disassembly method
< Main body>
Removing the top cover (See Fig.1)
Prior to performing the following procedure, remove
the top cover.
Remove the seven screws C on the back of the
body.
1.
Removing the rear panel (See Fig.2)
Fig.1
Fig.2
Top cover
Rear panel
B
C
C
A
2
A
2
C
C
To Next Page
