Prior to performing the following procedure, remove
the top cover.
by hand
Turn over the body. Insert a screwdriver into the hole
of the bottom chassis and turnit. The loading tray will
be ejected out of the front panel assembly.
Pull the loading tray toward the front.
Remove the fitting upward from the loading tray at
the joints b.
Push and return the loading tray.
1.
2.
3.
4.

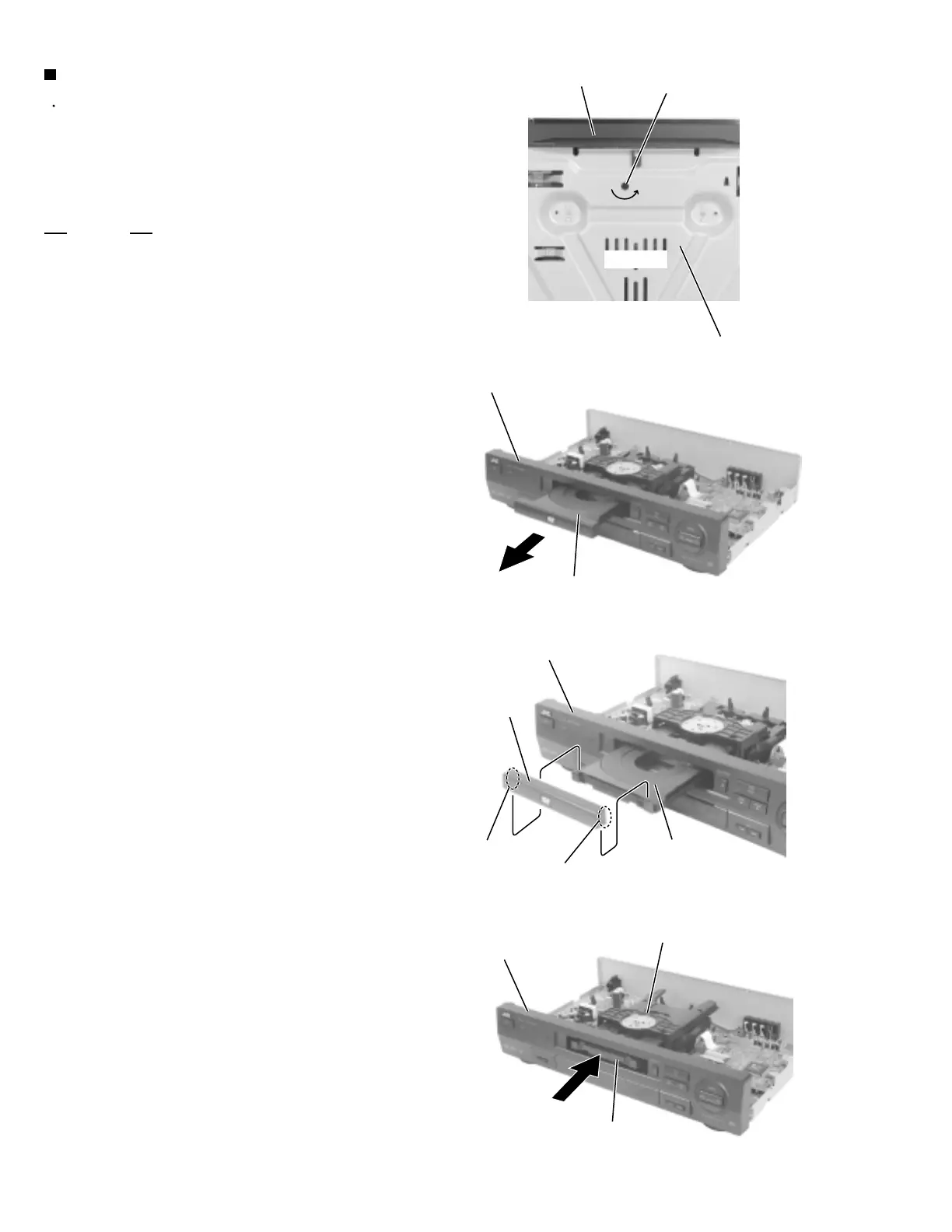

Removing the fitting (See Fig.3 to 6)
To remove the front panel assembly
and the DVD mechanism assembly,
remove the fitting in advance.
ATTENTION:
Front panel
Front panel assembly
Loading tray
Hole
Bottom chassis
(Bottom)
Fig.3
Fig.4
Fig.5
Fig.6
Front panel assembly
Fitting
Joint b
Joint b
Loading tray
Loading tray
Front panel assembly
DVD mechanism assembly
TRAY OPEN
