JVC XV-521BK Service Manual

XV-521BK/523GD/525BK/421BK
1-14
Prior to performing the following procedure, remove
the traverse mechanism unit.
Solder soldering d on the flexible board next to the
pickup unit.
From the bottom of the traverse mechanism unit,
disconnect the flexible wire from CN10 on the pickup
board.
1.
2.
Unsolder soldering i and j of the harness extending
from the turning table assembly to the pickup board.
Remove the screw G attaching the shaft stopper (F)
on the upper side of the traverse mechanism unit.
Pull the side of the shaft stopper (F) outward to
release the joint l and remove it upward. Remove the
spring at the same time.
Remove the screw H attaching the turn table
assembly.
Move the turn table assembly outward and pull out
from the shaft. Then remove it from the base chassis.
3.
4.
5.
6.

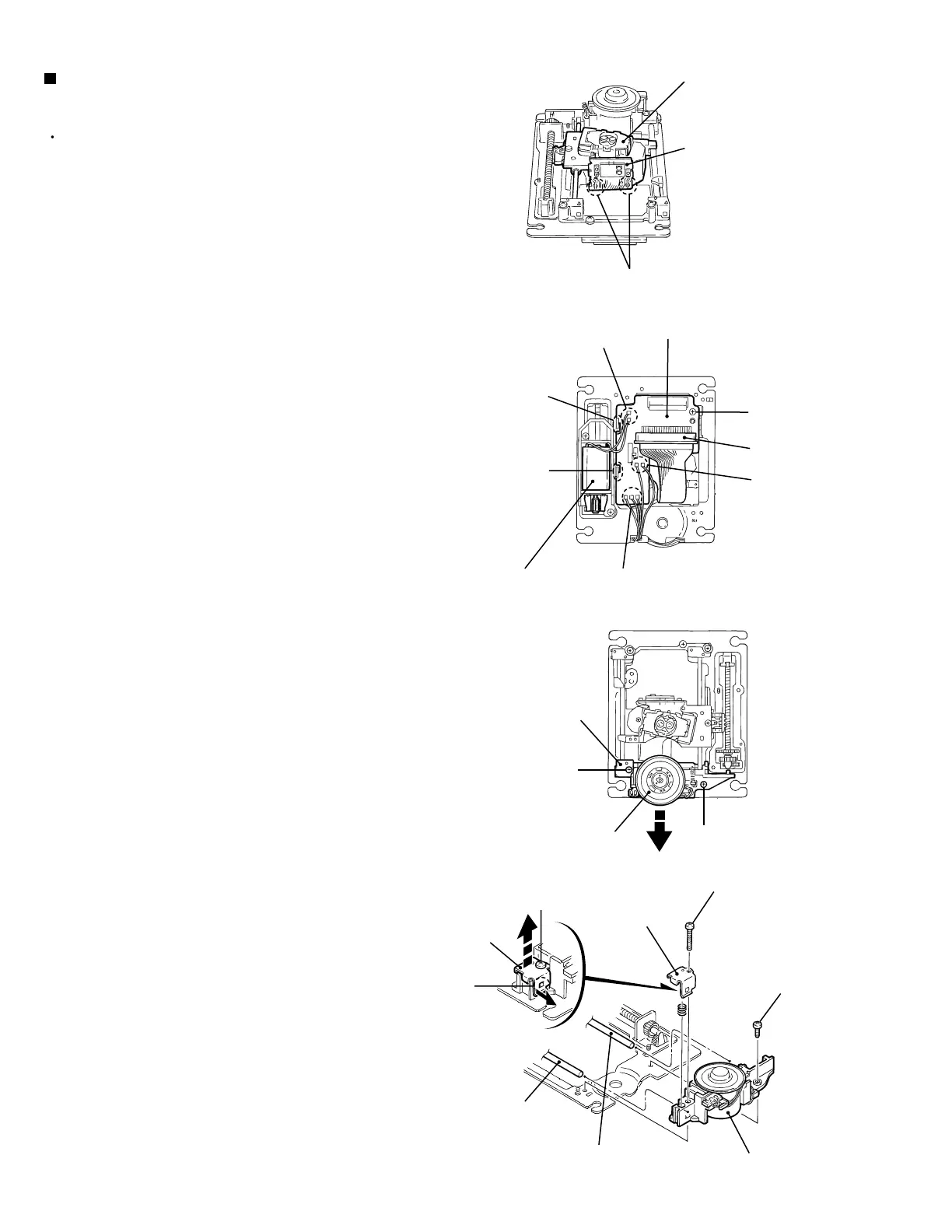

Removing the turn table assembly
(See Fig.5, 10, 12 and 13)
Disconnecting the flexible wire without
soldering may cause damage to the
pickup.
ATTENTION:
Fig.12
Fig.13
Fig.10
Pickup board
Feed motor assembly
Turn table assembly
Turn table assembly
Shaft stopper (F)
Shaft stopper (F)
Shaft
Shaft
Joint l
Shaft stopper (F)
CN10
i
j
h
Joint k
Joint k
E
G
H
H
G
G
Fig.5
Pickup unit
Flexible board
d
