XV-M565BK/M567GD
1-6

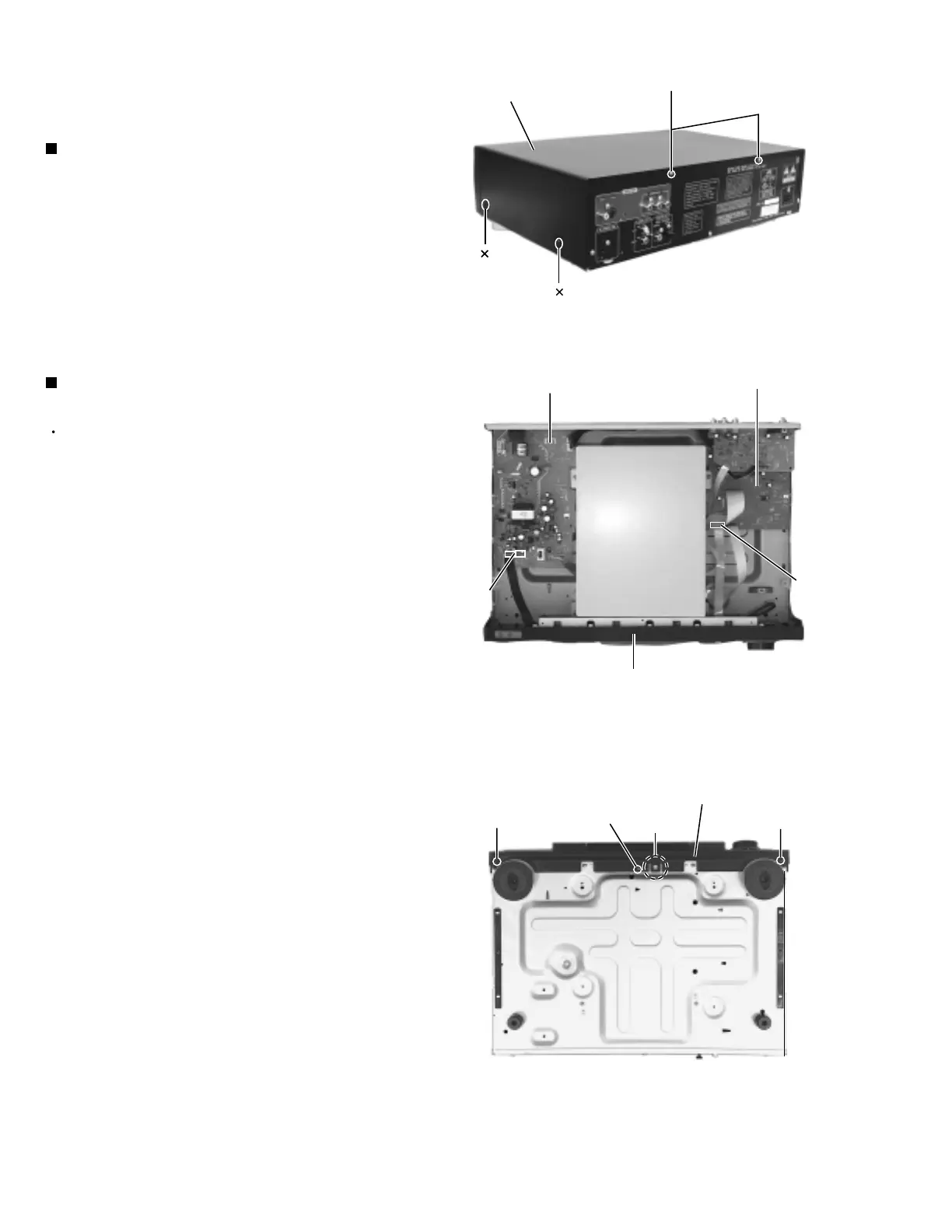

Remove the two screws A attaching the top cover
on the back of the body.
Remove the four screws B attaching the top cover
on both sides of the body.
Pull the lower parts of the top cover sides and
remove the top cover in the direction of the arrow.
1.
2.
3.
Disassembly method
Removing the Top cover (See Fig.1)
<
Main body
>
Prior to performing the following procedure, remove
the top cover.
Disconnect the harness from connector CN971 and
CN972 on the power supply board.
Disconnect the card wire from connector CN703 on
the system control board.
Remove the three screws C attaching the front
panel assembly on the bottom of the body.
Release the joint a on the bottom and the two joints
b on both sides of the body. Remove the front panel
assembly toward the front.
1.
2.
3.
4.
Removing the Front panel assembly
(See Fig.2 to 5)
Fig.1
Fig.2
Fig.3
Top cover
B
2
B
2
A
Front panel assembly
CN971
CN972
CN703
Power supply board
System control board
C
C
C
Joint a
Front panel assembly
To Next Page
