Additional information
Names of parts and controls

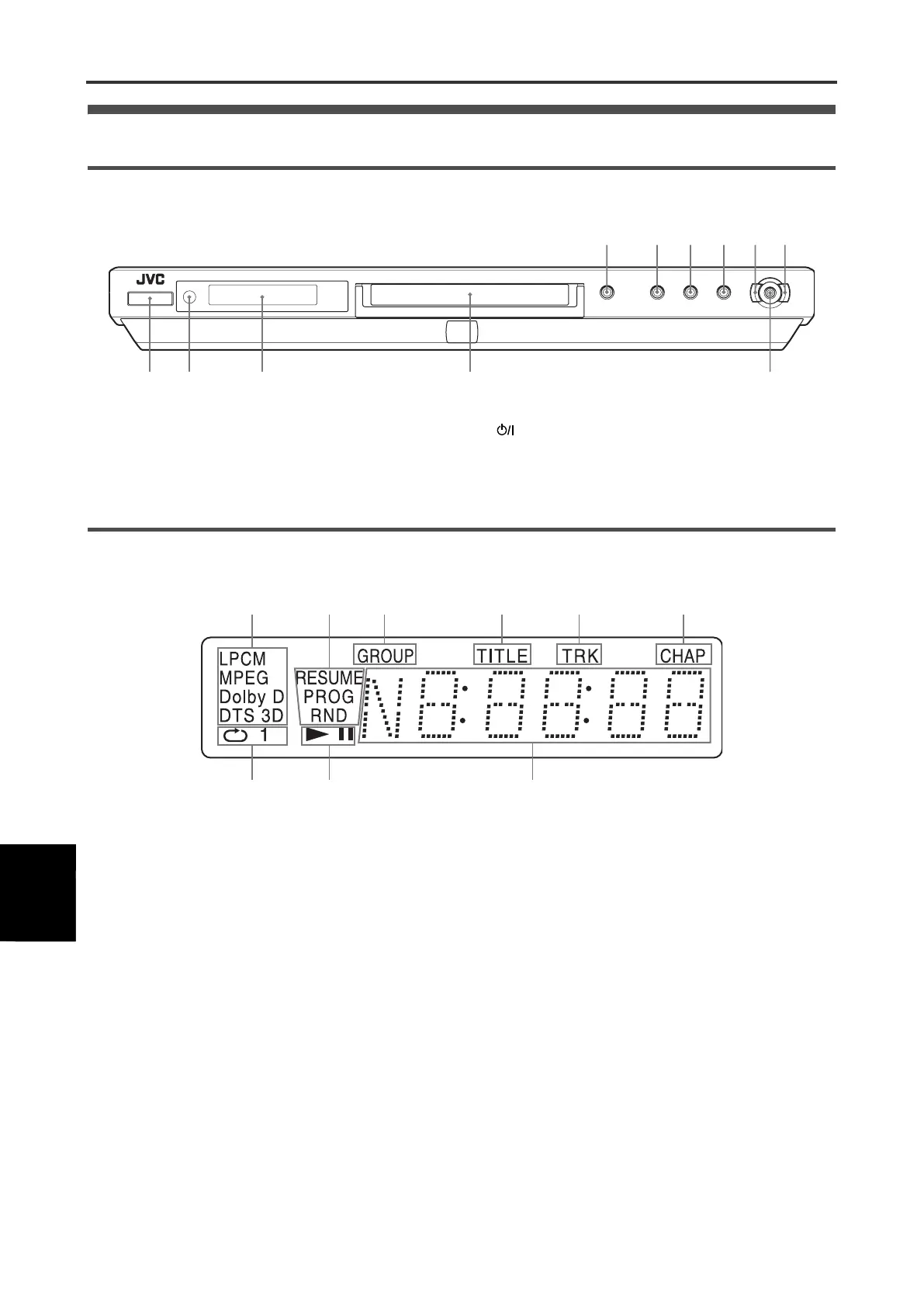

Front panel
1 0 button (7)
2 7 button (7, 8)
3 3 button (7, 9)
4 8 button (8, 9)
5 4 button (9, 10)
6 ¢ button (9, 10)
7 STANDBY/ON button (6)
8 Remote sensor (5)
9 Display window (see the illustration below)
0 Disc tray (7)
- QUICK PLAYBACK button (9)
Display window
1 Audio format indicators
2 Resume/Program/Random indicators
3 Group indicator
4 Title indicator
5 Track indicator
6 Chapter indicator
7 Repeat mode indicator
8 3(play) / 8(pause) indicators
9 Multi-information window
0-7 8 9
12 6543
1
7
3 4 5 62
8 9
