XV-N40BK,XV-N44SL
1-8 (No.A0040)
2.1.3 Removing the mechanism assembly (See Figure 2, Figure 5)
• Prior to performing the following procedure, remove the top
cover.
• There is no need to remove the front panel assembly.
(1) Insert a kind of screwdriver in a hole located in the right
side of mechanism assembly, and push a lever until it can-
not be inserted any further.
(2) And then, a tray will come out. Remove the tray in an upper
direction, with slightly opening the lower part of fitting in an
outward direction.
(3) Remove the three screws C attaching the mechanism as-
sembly.
(4) Disconnect the wire from connector CN501,CN502,CN503
on the servo control board respectively.
(5) Remove the mechanism assembly by lifting the rear part of
the mechanism assembly.

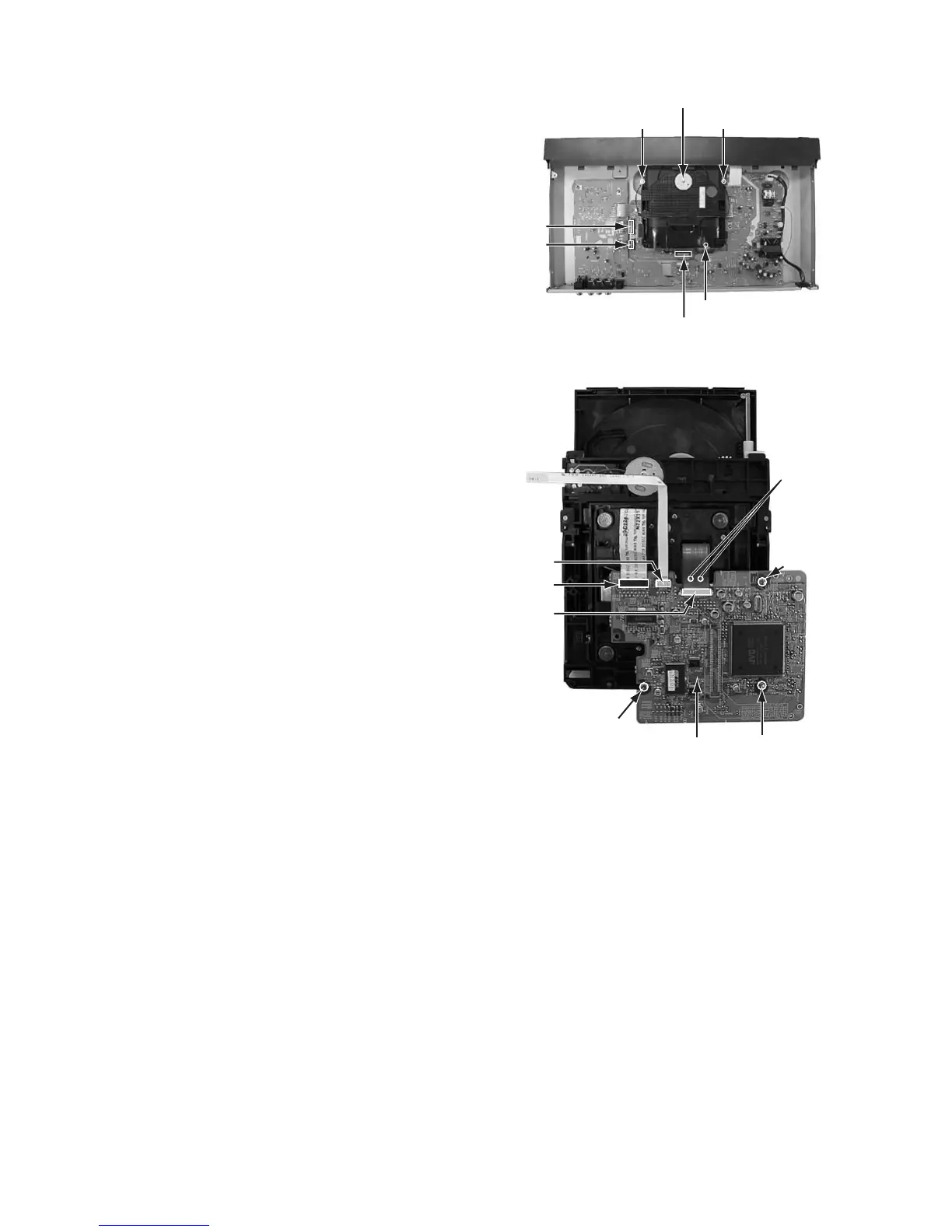

Fig.5
2.1.4 Removing the servo control board (See Figure 6)
• Prior to performing the following procedure, remove the mech-
anism assembly.
(1) Remove the three screws D attaching the servo control
board.
(2) Disconnect the card wire from connector CN201,CN202 on
the servo control board.
(3) Disconnect the flexible wire from connector CN101 on the
servo control board from pick-up unit.
ATTENTION:
At this time, please extract the wire after short-circuited
of two places on the wire in part c with solder. Please re-
move the solder two places of part c after connecting the
wire with CN101 when reassembling.
Fig.6
C
Mechanism assembly
CN501
C
C
CN502
CN503
CN201
D
Part c
CN202
CN101
Servo control board
D
D
To Next Page
