XV-N50BK,XV-N55SL
1-12 (No.A0041)

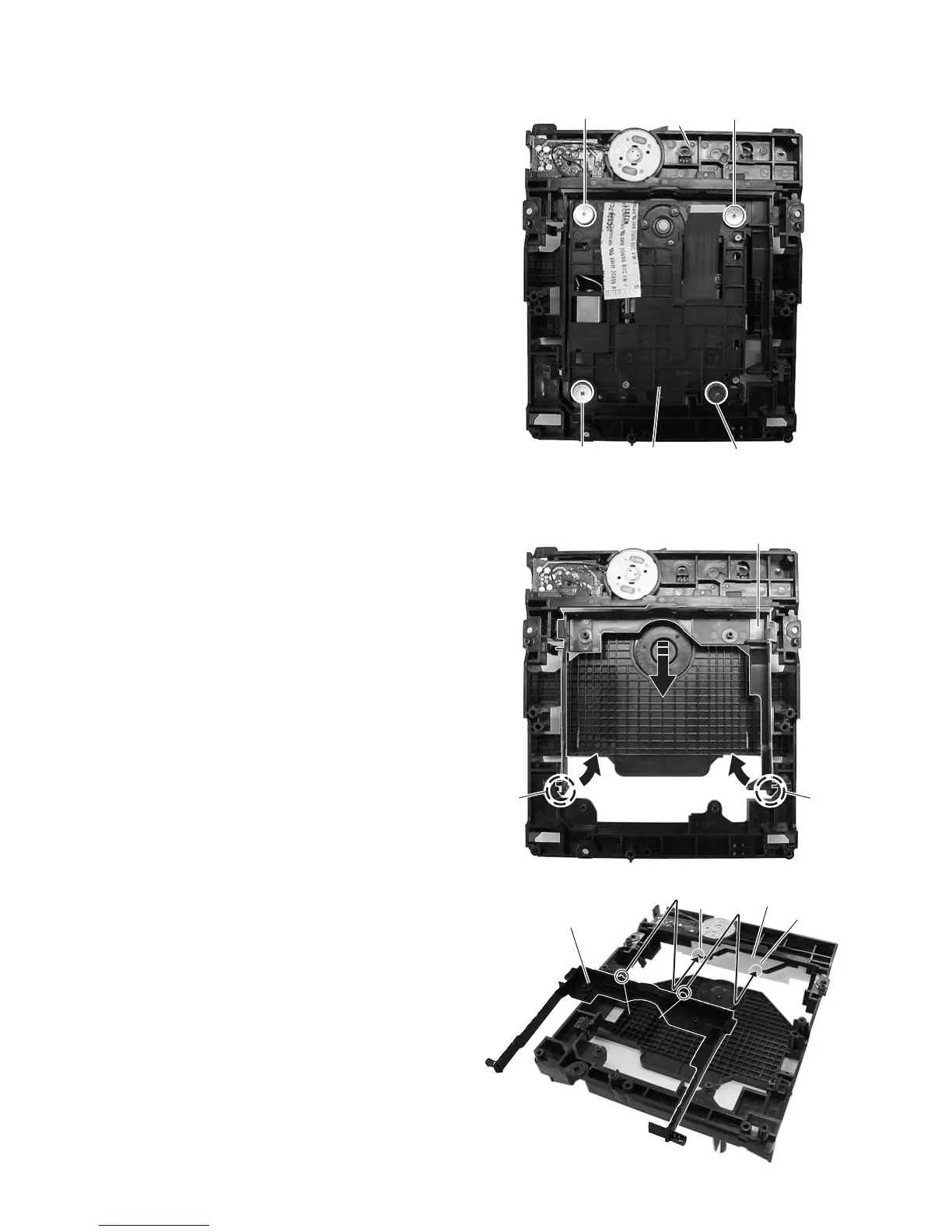

2.2.2 Removing the traverse mechanism assembly (See Figure 7)
Reverse the loading mechanism assembly. Remove the four
screws B attaching the traverse mechanism assembly. Remove
the traverse mechanism assembly upward.
Fig.7
2.2.3 Removing the elevator (See Figure 8 and Figure 9)
• Prior to the following procedure, remove the traverse mecha-
nism assembly.
(1) Remove the two arms of the elevator from the two parts f
by moving the arms in a direction of the arrow.
(2) Pull out the elevator in a rear direction.
Attaching the elevator:
Engage the two holes g to the two shafts on the front part of
the elevator. And then, attach the elevator.
Fig.8
Fig.9
Loading mechanism
assembly
B
B
B
B
Traverse mechanism
assembly
Part f
Part
To Next Page
