JVC XV-N50BK Service Manual

XV-N50BK,XV-N55SL
(No.A0041)1-13

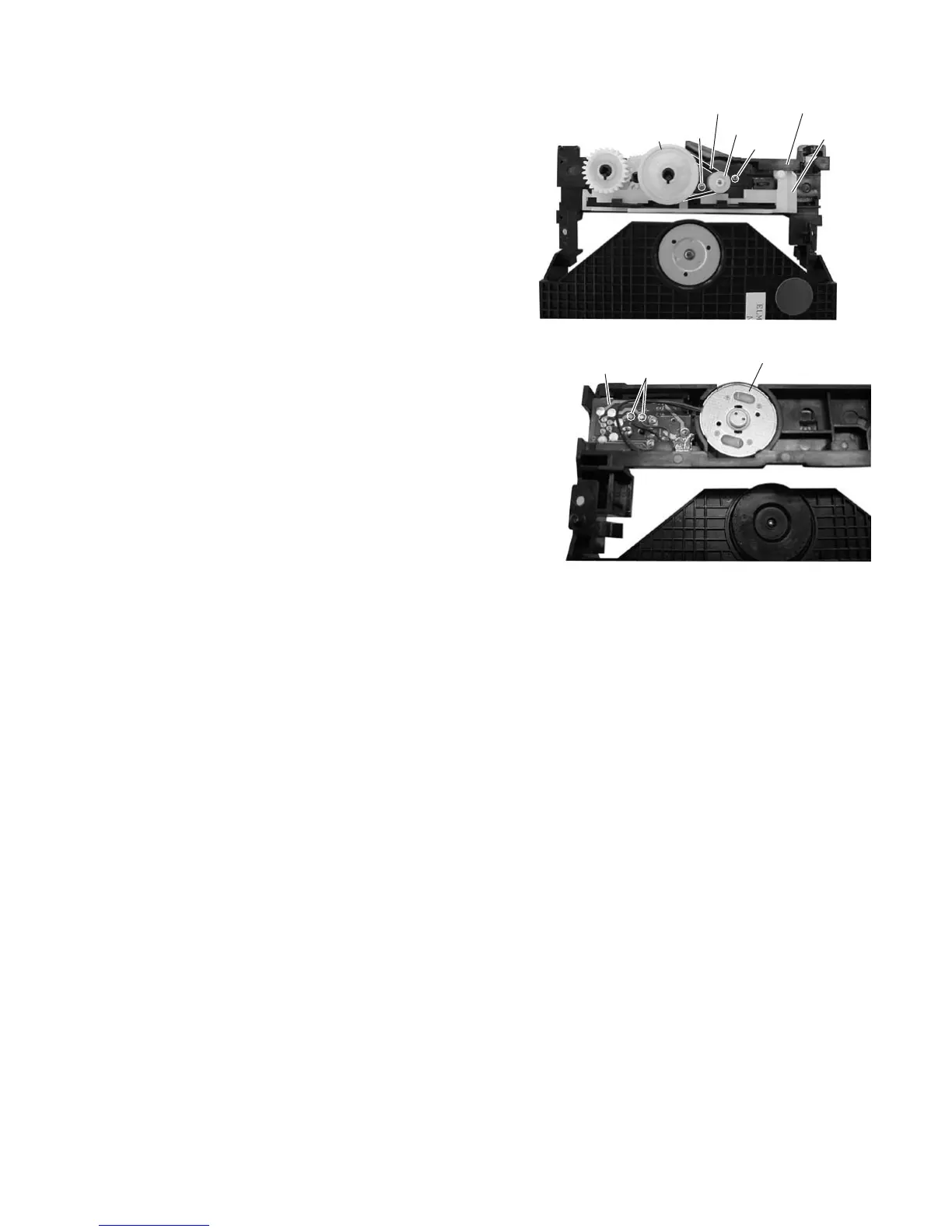

2.2.4 Removing the loading motor (See Figure 10 and Figure 11)
• Prior to the following procedure, remove the tray, the traverse
mechanism assembly, and the elevator.
(1) Remove the belt from the pulley.
(2) Remove two screws C attaching the loading motor.
(3) Remove two solders h on the switch board.
Fig.10
Fig.11
Loading base
Slide cam
Belt
Pulley
Pulley
C
C
Loading motor
Switch board
Part h
