XV-N50BK,XV-N55SL

1-14 (No.A0041)

2.3 Traverse mechanism assembly

2.3.1 Removing the pickup (See Figure 12, Figure 13, and Figure 14)

• Prior to the following procedure, remove the traverse mecha-

nism assembly.

(1) Remove one screw D attaching the plate.

(2) Remove the plate and the leaf spring.

(3) Lift i of the shaft 1, and pull out the shaft 1 from j.

(4) Remove k of the pickup from the shaft 2.

Attaching the pickup:

(1) Engage k of the pickup to the shaft 2.

Note:

As Figure 14 shows, the spring must come under the

shaft 2.

(2) Insert the shaft 1 in j, and attach the shaft 1 to i.

(3) Attach the leaf spring, and then attach the plate. Fix the

leaf spring and the plate by using the screw D.

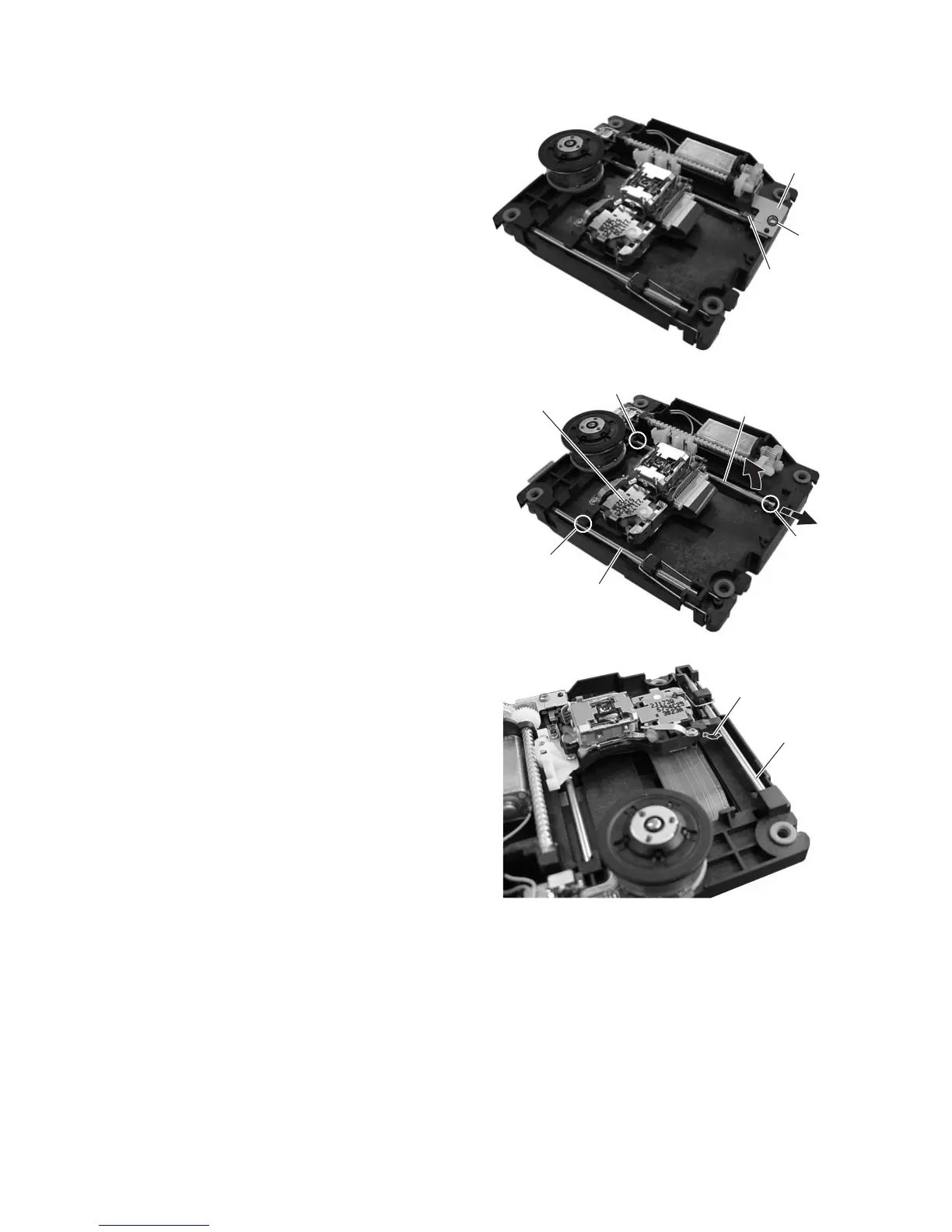

Fig.12

Fig.13

Fig.14

Leaf spring

Plate

Shaft 1

Part j

Part i

Shaft 2

Part k

Pick-up

Spring

Shaft 2
