JVC XV-S42SL Service Manual

XV-S40BK/XV-S42SL/XV-S45GD
XV-S30BK/XV-E100SL
1-9

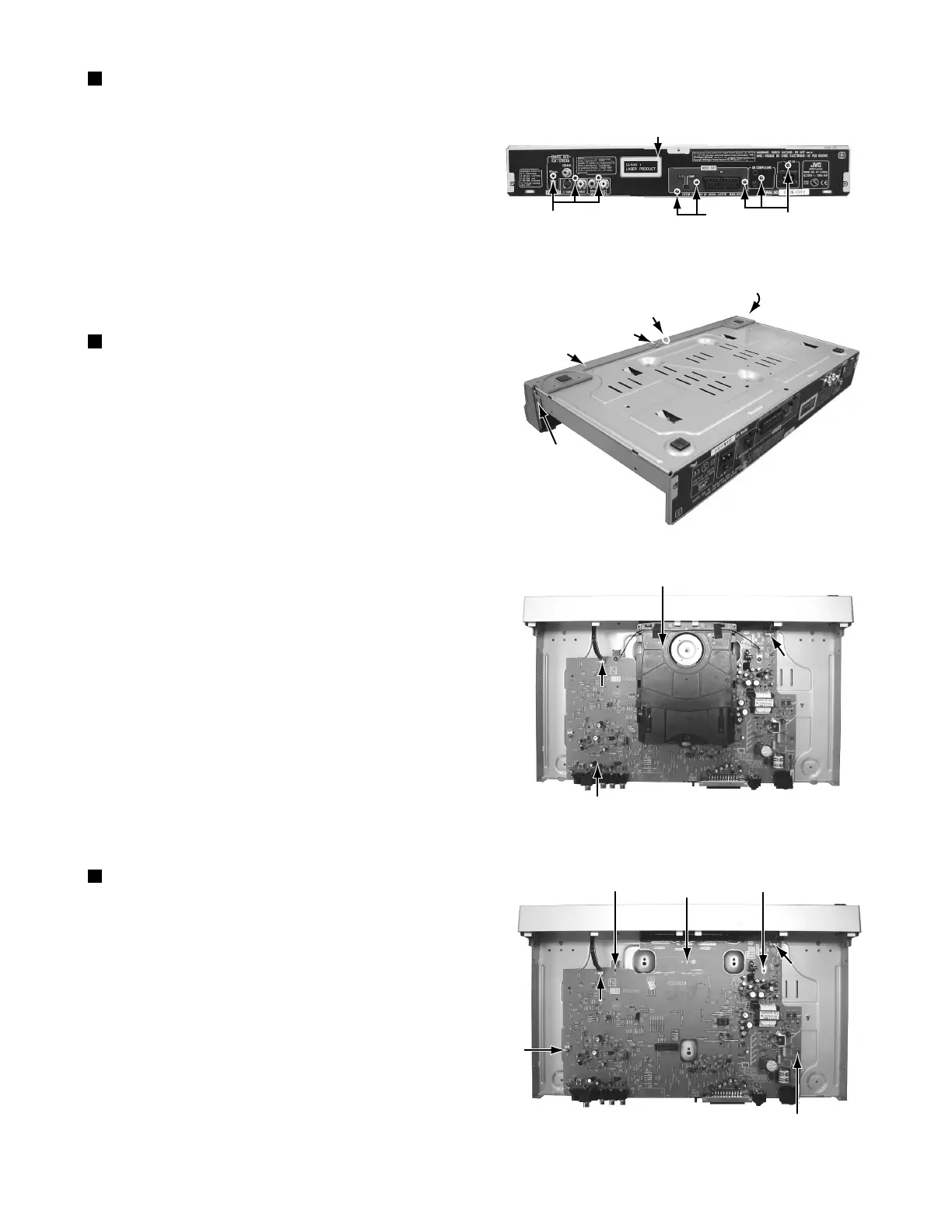

Removing the rear panel (see Fig.5)
Removing the front panel assembly
(see Fig.6,7)
Removing the main board (see Fig.8)
*Prior to performing the following procedure, remove
the top cover.
1.Remove the eight screws D attaching the rear panel
on the back of the body.
* Prior to performing the following procedure, remove
the top cover.
* There is no need to remove the mechanism assembly.
1.Remove the one screw E attaching the front panel
assembly on the bottom chassis.
2.Disconnect the wire from CN702 and CN703 on the
main board respectively.
3.Hook c and d are removed respectively, and the front
panel assembly is removed.
* Prior to performing the following procedure, remove
the top cover, mechanism assembly and rear panel.
1.Disconnect the wire from CN702 and CN703 on the
main board respectively.
2.Remove the four screws F attaching the main board
on the bottom chassis.
D
D
D
Rear panel
Fig.5
E
Hook c
Hook d
Hook d
Front panel
assembly
Fig.6
CN703
CN702
Fig.7
Main board
Mechanism assembly
CN703
CN702
Fig.8
F
F
F
F
Main board
* As for the screw D, the number and the position
are different according to the destination.
