Report # 301-S-02c-4
UL 1482(2010) and S627-00(2000)
- Read this manual carefully and save these instructions

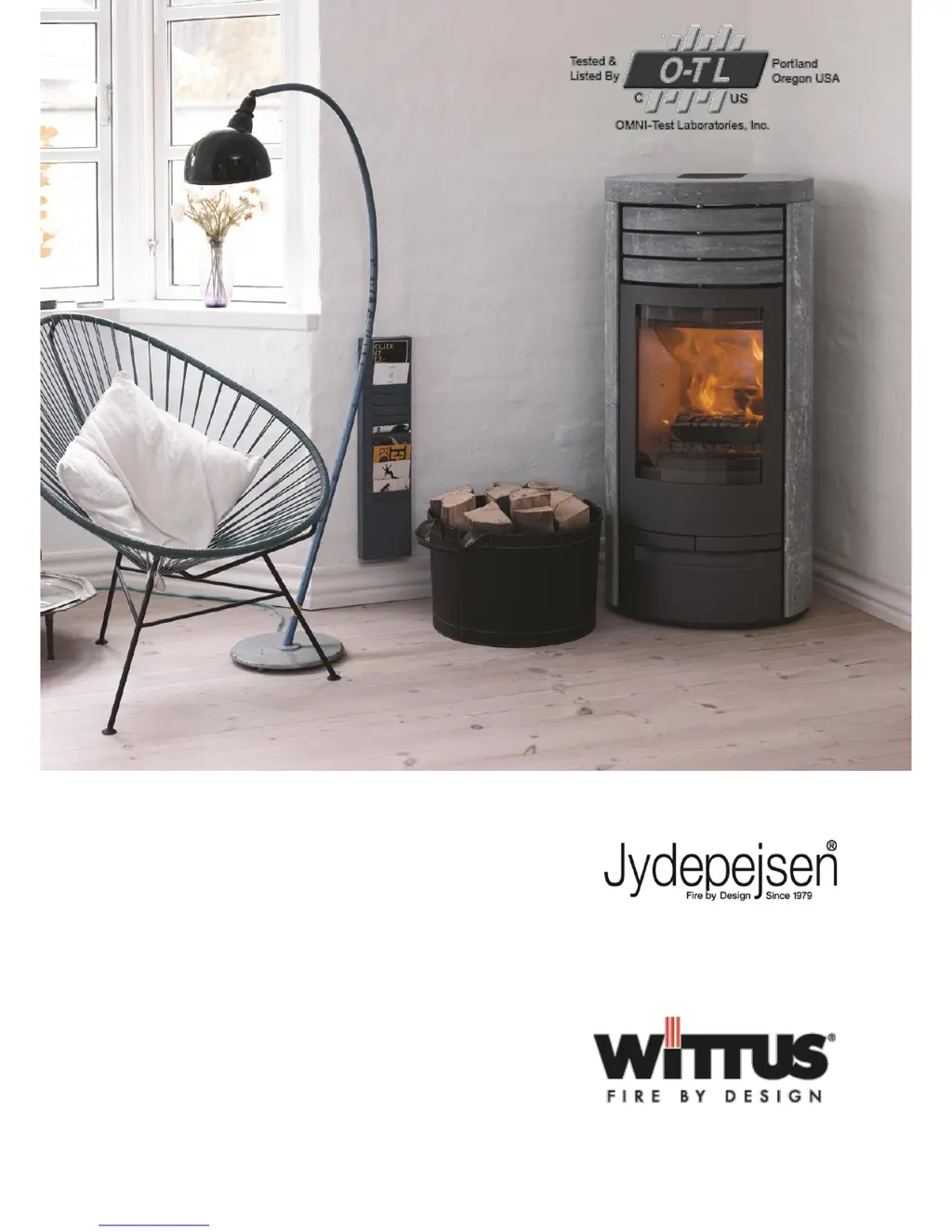

Installation and user manual
Trendline 1+2+3
Troja 1+2+3
Softline
Fineline 1+2
Zeus
Athene
Hera
Avanti
Cubic 109-166-215
Cubic Corner
Cubic Wall
Cubic W200
Cosmo Models
Manufactured by:
Ahornsvinget 3-7 DK-7500 Holstebro
T.+45 96101200 F.+45 97425216
www.jydepejsen.com
Imported by:
PO Box 120 Pound Ridge NY 10576
T.914-764-5679 F.914-764-0465
www.wittus.com

Table of Contents

Other manuals for Jydepejsen Zeus

Preview: Operating Instructions
Operating Instructions40 pages

Questions and Answers

  • K
    Kenneth EdwardsAug 4, 2025
    Why is there insufficient draft in my Jydepejsen Zeus?
    • N
      Nancy BrownAug 4, 2025
      Insufficient draft in your Jydepejsen Wood stove can occur for several reasons. First, ensure that the flue vent is open. Other potential causes include a defective or missing access hatch in the chimney, a chimney blocked by a bird's nest, a sooted flue pipe, or a chimney that's too small. In such cases, contact your chimney sweep/stove dealer for advice or clean the flue pipe and firebox. The baffle plate may also be incorrectly positioned, so check its fitting according to the operating instructions. Finally, negative pressure in the house can cause this issue; increase the air supply to the room to address it.
  • H
    Holly MorganAug 8, 2025
    Why is the glass pane sooting up on my Jydepejsen Zeus?
    • C
      Carolyn DoughertyAug 8, 2025
      The glass pane of your Jydepejsen Wood stove may be sooting up because the wood you're using is too wet. Use dry wood with a maximum moisture content of 20%. Also, ensure that the air vent is sufficiently open to supply more air for combustion.
  • W
    willie94Aug 12, 2025
    How to reduce draft in Jydepejsen Zeus Wood stove?
    • J
      Jennifer ThompsonAug 13, 2025
      Too much draft in your Jydepejsen Wood stove can be caused by several factors. The baffle plate might be incorrectly positioned, so check its fitting according to the operating instructions. If you're using kiln-dried wood, it requires less air than normal wood, so reduce the air supply. Also, if the air vent is constantly wide open, reduce the air supply. Check the sealing strips on the door; if they are worn, replace them as described in the operating instructions. Finally, the chimney might be too large; contact your chimney sweep/stove dealer for further advice.
  • D
    dustin71Aug 17, 2025
    What to do if smoke comes out when I open my Jydepejsen Wood stove?
    • R
      Rebecca LarsenAug 17, 2025
      If smoke comes out into the room when you open the door of your Jydepejsen Wood stove, it could be due to pressure compensation occurring in the firebox. To resolve this, open the air vent wide for about 1 minute before opening the door, and avoid opening the door rapidly. Another potential cause is that the chimney is not a suitable size for the firebox. Check the height of the chimney, as it may be too short for the minimum draught required.
  • K
    kimberly91Aug 21, 2025
    Why is my Jydepejsen Zeus producing white smoke?
    • Y
      ydrakeAug 21, 2025
      White smoke from your Jydepejsen Wood stove can occur if the combustion temperature is too low; increase the air supply to address this. It can also happen if the wood is too damp and contains water vapor; always ensure that you use pure, dry wood in your stove.
  • J
    Judith CrossAug 26, 2025
    What causes clouded glass on my Jydepejsen Zeus Wood stove?
    • K
      Kelsey KrauseAug 26, 2025
      Clouded glass or white film on your Jydepejsen Wood stove can be caused by poor combustion due to too low a temperature in the stove. Follow the instructions for correct burning as specified in this manual. It can also be due to incorrect combustion, such as burning waste wood, painted wood, impregnated wood, laminated plastic, plywood, or similar materials. Ensure that you use pure, dry wood in your stove.
  • L
    Larry FigueroaAug 30, 2025
    Why is my Jydepejsen Wood stove producing black smoke?
    • A
      Alvin GregoryAug 30, 2025
      Black or grayish-black smoke from your Jydepejsen Wood stove indicates incomplete combustion. Increase the air supply to address this issue.

Summary

Jydepejsen Wood-Burning Stoves Overview

Stove Installation and Safety Clearances

Floor Protection Requirements

Requirements for non-combustible floor protection around the stove.

Foundation and Wall Mounting

Installation on non-combustible foundations and wall specifications.

Wall and Corner Model Installation Notes

Specific installation notes for Cubic Wall/Corner/W200 models.

Chimney and Venting Installation

Factory-Built Chimney Systems

Guidelines for Class A chimney systems and masonry chimneys.

Chimney Connector Guidelines

Requirements and material restrictions for chimney connectors.

Wood Burning Operations and Fuel

Heat Distribution and Convection

How the stove generates and distributes heat via convection and radiation.

Efficient Wood Burning Techniques

Proper techniques and process for burning wood effectively.

Fuel Types and Combustion Data

Details on fuel types, heating values, and combustion.

Air Supply and Combustion Control

Preheated Air System Function

Explanation of the preheated air system for efficient combustion.

Startup and Primary Air Usage

How startup and primary air vents function in lighting and burning.

Secondary and Direct Air Benefits

Details on secondary and direct air systems for combustion enhancement.

First Fire, Lighting, and Refueling

First Fire Preparation Steps

Important steps before lighting the stove for the first time.

Stove Lighting Procedure

Step-by-step guide for starting a fire in the stove.

Safe Refueling Practices

Instructions for adding wood to a burning stove.

Stove Troubleshooting Guide

Stove Maintenance and Care

Gasket and Vermiculite Replacement

Procedures for replacing worn gaskets and vermiculite panels.

Door Seals and Glass Cleaning

Checking door seals and cleaning the glass pane.

Ash Management and Disposal

Safe methods for disposing of stove ashes.

Vermiculite Panel Functionality

Benefits and replacement of vermiculite panels for heat efficiency.

General Stove Cleaning

Guide for cleaning the stove, chimney connector, and flue gas outlet.

External Cladding: Ceramic and Soapstone

Ceramic Tile Finish Details

Details on the quality, variations, and appearance of ceramic tiles.

Cleaning Ceramic Tiles

Methods for cleaning and maintaining ceramic tile cladding.

Soapstone Manufacturing and Quality

Information on the manufacturing and quality of soapstone blocks.

Cleaning Soapstone Surfaces

Guidance on cleaning and maintaining soapstone surfaces.

Warranty Information and Spare Parts

Jydepejsen Product Warranty

Details of the 5-year warranty and exclusions.

Replacement Spare Parts List

Article numbers and descriptions for replacement parts.

Cubic Series Assembly Instructions

Cubic Wall Model Assembly

Steps for assembling the Cubic Wall model.

Cubic Corner Model Assembly

Steps for assembling the Cubic Corner model.

Cubic W200 Model Assembly

Steps for assembling the Cubic W200 model.

Cubic 109;166;215 Adjustment

Assembly and adjustment for Cubic 109, 166, and 215 models.

Jydepejsen Zeus Specifications

General IconGeneral
CategoryWood stove
Fuel TypeWood
Efficiency80%
Flue Size6 inches
Construction MaterialSteel
ColorBlack
CertificationsEN 13240
Heat output30, 000-70, 000 BTU
