Instruction Manual
Section Four
1. B855Y Special Nut
2. 5/16 x 3/4 NF Hex Socket Cap Screw
3. B860CN Special Nut
4. Belt Adjustment Handwheel
5. V-Belt
6. Eccentric Shaft Hand Nut
7. Column Lock Lever
3. B955C Lock Screw Assembly

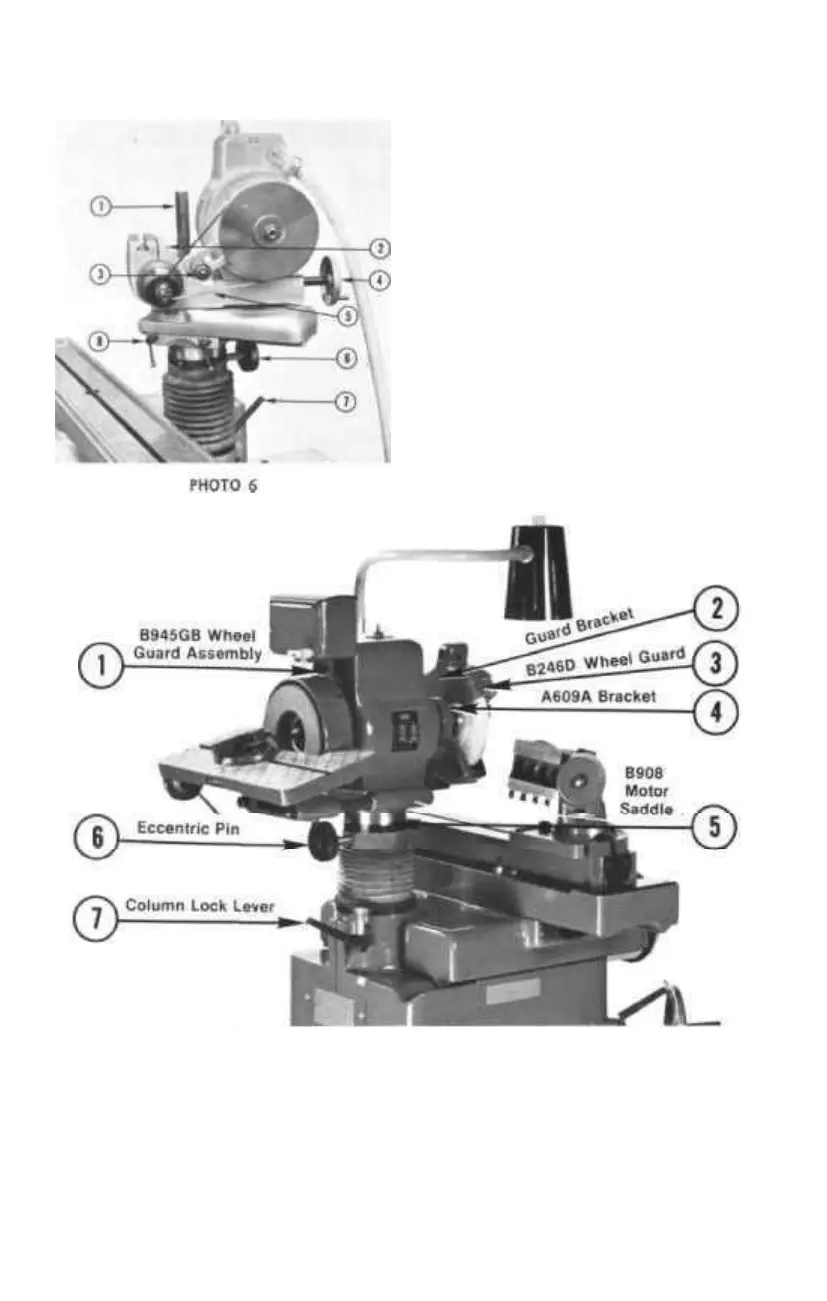

PHOTO 7
(b) All Other Models: The transmission is shipped with gears in neutral
position. The pinion gear is off the rack. To engage the direct drive
ratio, turn and pull the knurled knob (23) Photo 4 to start the pinion
onto the rack. Continue to pull while oscillating the handwheel
until an inner key is felt dropping into the direct drive slot. To en-
gage the low ratio, continue pulling the knob while oscillating the
—10--
