Instruction Manual
Section Four
B827 Plain Micrometer Toothrest
B6027 Plain Micrometer Toothrest
straight arbor, shown in the inset. They may also be used to index cutter
teeth directly. They have a micrometer extendable barrel assembly to hold
various blades.
3, Height gauges B939 and B6039 are used to set the wheel spindle axis at
the same height as the centers of tailstocks or workheads. They are also
employed for putting the face of a cutter tooth to be ground at the height
above the table as the cutter's center. Use the inside of the 'V portion of
the cast sliding pointer for locating the center of work without center holes.
The diamond shaped pointer plate has two surfaces (ONE ON TOP, ONE
ON THE BOTTOM —SEE INSET) which are exactly at
the same height in a horizontal plane. This is for the
purpose of quickly setting the toothrests relative to a
cutter tooth. Consult Section Five, Chapters 1 and 3
for this procedure.

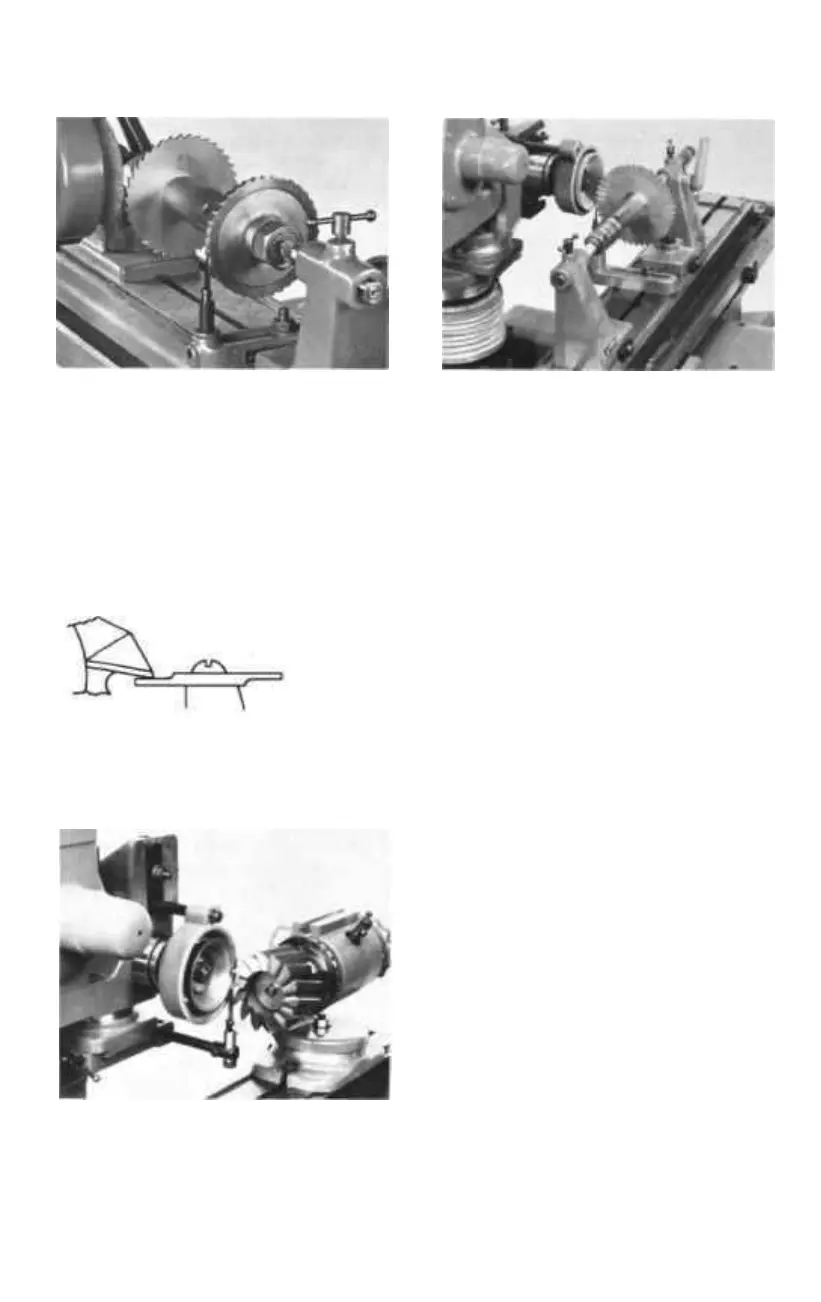

B955PC Dovetail Clamp, standard
with all universal models, is shown
mounted on Dovetail Slide. Arm and
B940H Micrometer Tooth Rest (parts
of BA940 Universal Tooth Rest) are
extended from the B955PC for this
setup, which allows cutters to be
ground with wheel rotating down-
ward, by placing teeth faces onto
tooth rest in this position.
—20—
