Instruction Manual Section Five

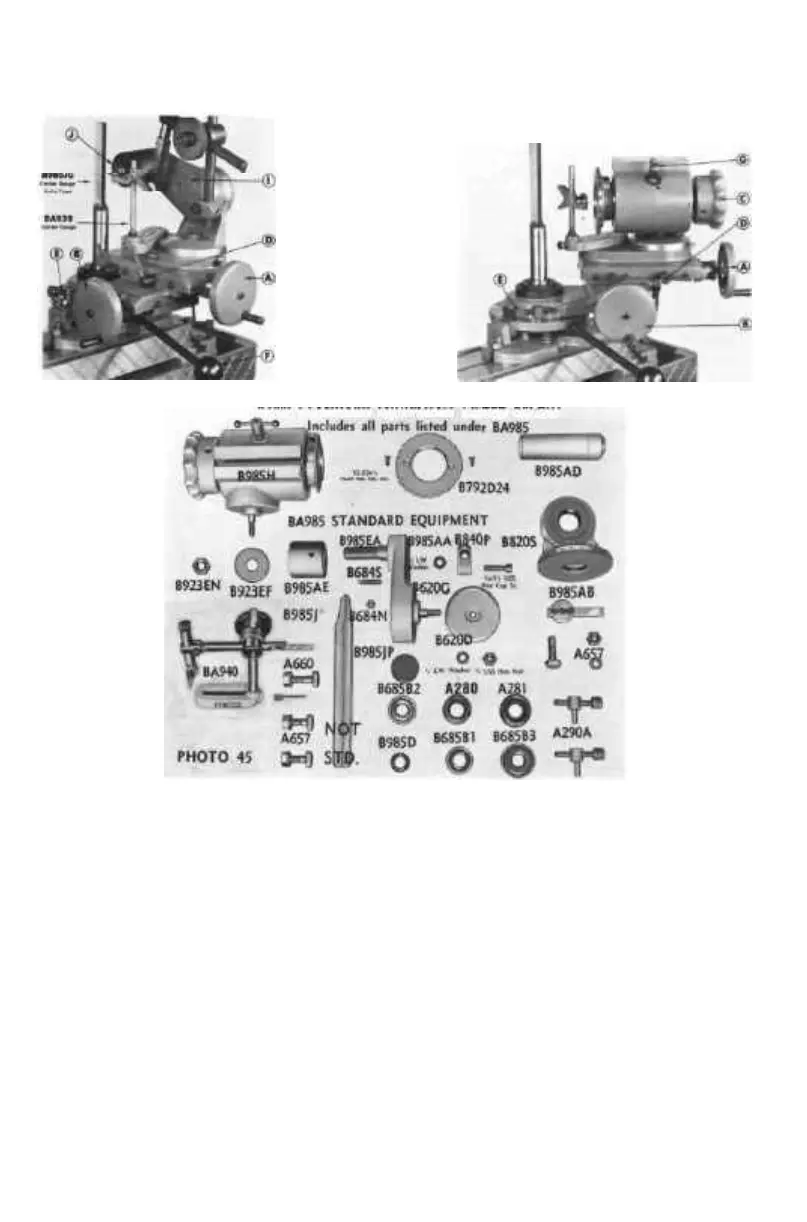

RADIAL GRINDING FIXTURES
PHOTO 43
PHOTO 44
BA986 STANDARD EQUIPMENT LISTED BELOW
BA985 RADIAL GRINDING FIXTURE STANDARD EQUIPMENT
A280 Friction Collar. A281 Friction Collar, A290A Table Adjusting Screw, A657, A660 T-Slot Bolts.
B620D Back Plate B620G Swivel Stud, B684N Nut, B684S Diamond Screw, B685B1 V," Cutter Bushing,
B685B2 1" Cutter Bushing, B685B3 1¼" Cutter Bushing, B820S Swivel, B840P Swivel Block. B923EF
Keyed Wheel Flange, B923EN Special Nut, BA940 Tooth Rest, B985AA Swinging Arm, B985AB Swivel
Index Bar, B985AE Diamond Holder, B985D Guide Bushing, B985EA Stud ¼". *B985J (optional) Center
Gauge, B985JP Cap. (BA939 Center Height Gauge, B985)C Center Gauge. Knife Type, are shown in
BA985 photo upper left.) Net Weight 51 lbs.
BA986 RADIAL GRINDING FIXTURE STANDARD EQUIPMENT
Includes all equipment listed for BA985 Model and the following: B792D24 Index Disc, B985AD
Diamond Holding Arbor, B985H Housing and Spindle Assembly.
AVAILABLE EQUIPMENT
B792D Index Discs 4, 6, 8. 20. 24, 28, 30, 32, 34. 36, 38, 40, 42, 44. 48, 52, 54, 56 divisions available.
B941 Collet Fixture, B641C Collets for B941 Fixture. Available sizes:
3
/
16
" to 1" by 64ths,
1
/
64
" to
11
/
64
"
by 64ths. B641K Straight Sleeves. Available sizes: 1
1
/
16
", 1⅛", 1
3
/
16
" and 1¼". B642K No. II B&S
Adaptor with Standard Milling Machine Taper Socket for holding B&S Cam Lock Tapers. Available
in taper Nos. 10, 20 and 30. B642T Adaptor Sleeves. Available sizes: Morse 1, 2, 3 and 4; B&S
5, 7, 8. 9 and 10. B844E 6" 4-Jaw Independent Chuck mounted on No 11 B&S Arbor. B944 Adjustru
4" 6-Jaw Chuck mounted on No. 11 B&S Arbor. B946 4" 3-Jaw Universal Chuck mounted on No.
11 B & S Arbor.
—55—
