Kaadas K20 Pro Max - Lock explosive view

Lock explosive view

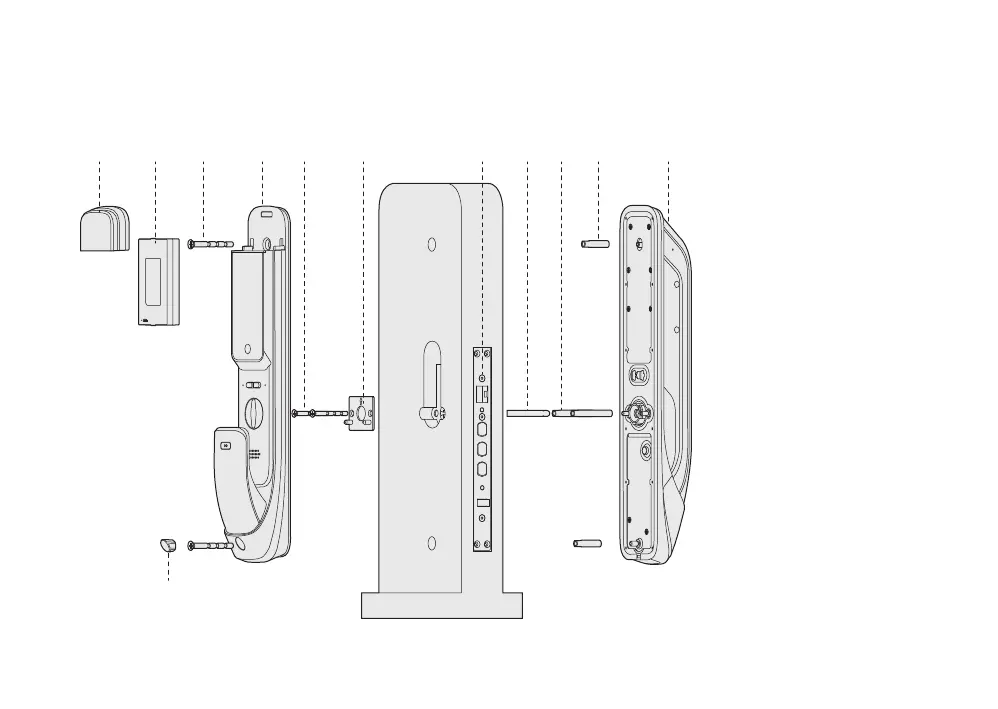

The explosive view helps you understand better the construction the lock.
1. Battery cover
2. Lithium battery
3. M6 screws (2pcs)
4. Back panel components
5. M5 screws (2pcs)
6. Mounting plate
7. Mortise
8. Tailpiece
9. M5 connecting screw post (2pcs)
10. M6 connecting screw post (2pcs)
11. Front panel components
12. Rubber plug
6 8 9 10 1151 2
12
3 4 7
