EF680/EF780 Installation Guide
Installation of the Internal Mounting Plate
Step 7A
Check to make sure that the cable
from the front of the lock and the
cable from the mortice lock is clear
and free.

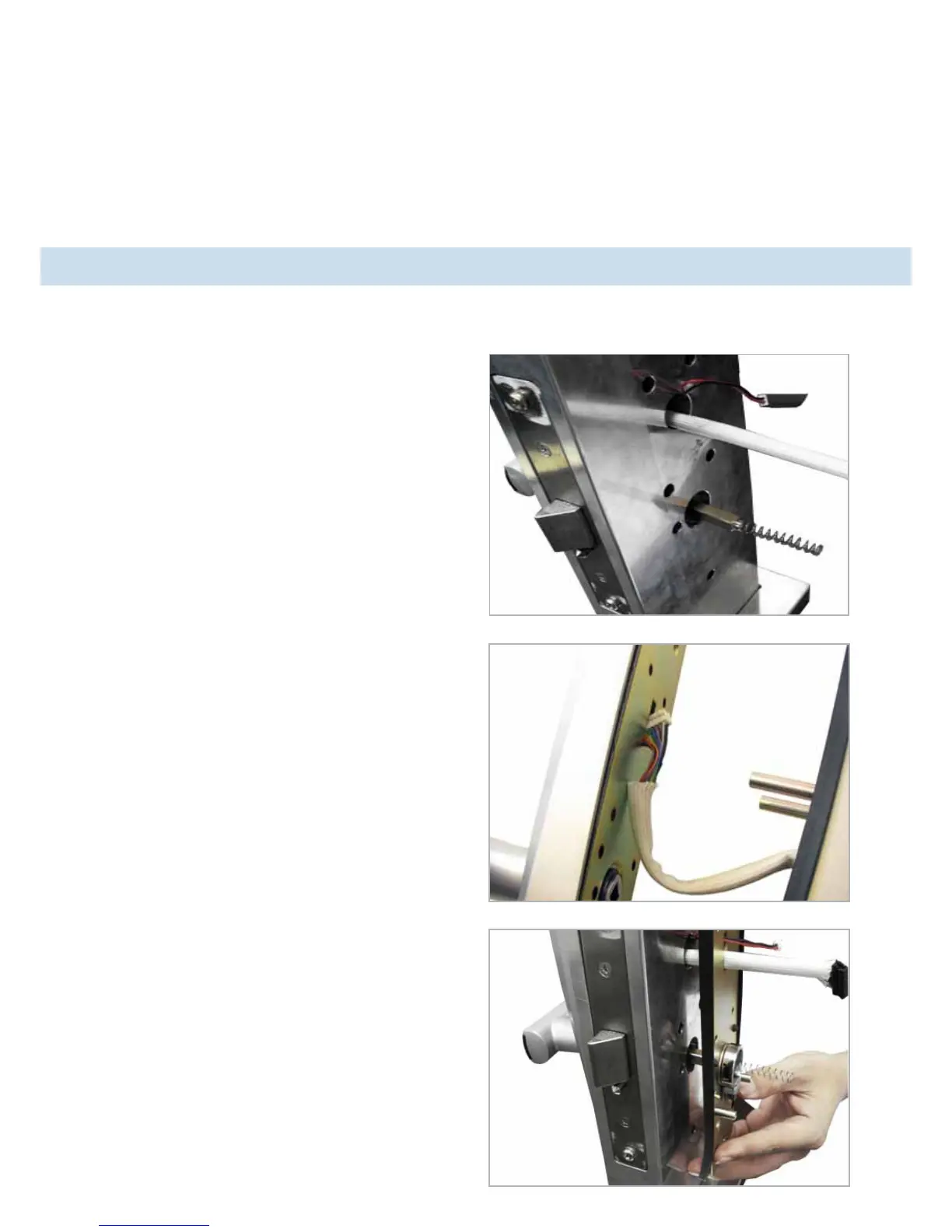

Carefully feed both the main PCB
cable and power cable through the
internal mounting plate.
With the screws provided x the
back plate to the door – making
sure that the guide screw is in
place.
Insert the spindle and spring.
To Next Page
