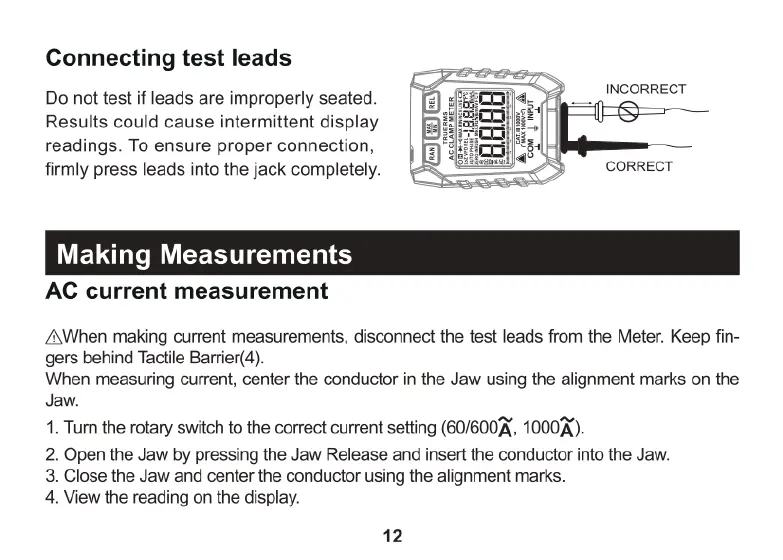

Connecting test leads
Do not test if leads are improperly seated. . o INCORRECT
Results could cause intermittent display
readings. To ensure proper connection,
firmly press leads into the jack completely.
Making Measurements
AC current measurement
CORRECT
/A\When making current measurements, disconnect the test leads from the Meter. Keep fin-
gers behind Tactile Barrier(4).
When measuring current, center the conductor in the Jaw using the alignment marks on the
Jaw.
1. Tum the rotary switch to the correct current setting (60/600, 1000).
2. Open the Jaw by pressing the Jaw Release and insert the conductor into the Jaw.
3. Close the Jaw and center the conductor using the alignment marks.
4. View the reading on the display.
12
