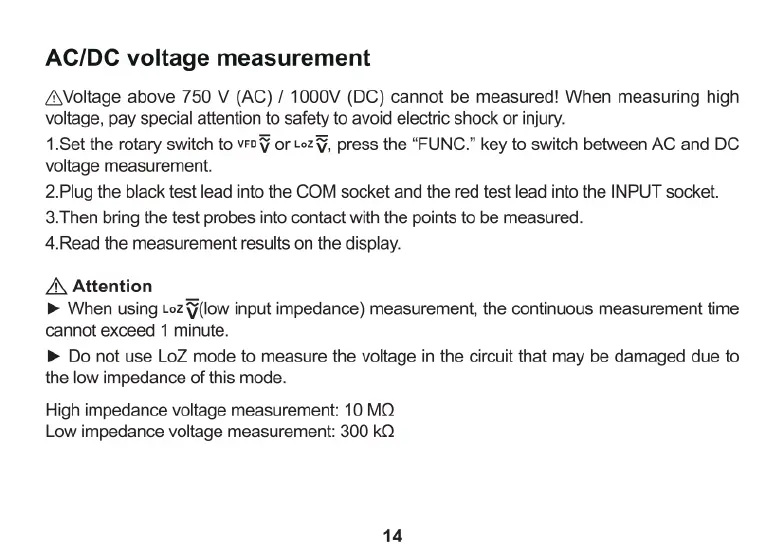

AC/DC voltage measurement
/A\Voltage above 750 V (AC) / 1000V (DC) cannot be measured! When measuring high
voltage, pay special attention to safety to avoid electric shock or injury.
1.Set the rotary switch to veoJ or Loz, press the “FUNC.” key to switch between AC and DC
voltage measurement.
2.Plug the black test lead into the COM socket and the red test lead into the INPUT socket.
3.Then bring the test probes into contact with the points to be measured.
4.Read the measurement results on the display.
/\ Attention
» When using Loz {i(low input impedance) measurement, the continuous measurement time
cannot exceed 1 minute.
» Do not use LoZ mode to measure the voltage in the circuit that may be damaged due to
the low impedance of this mode.
High impedance voltage measurement: 10 MQ
Low impedance voltage measurement: 300 kQ
14
