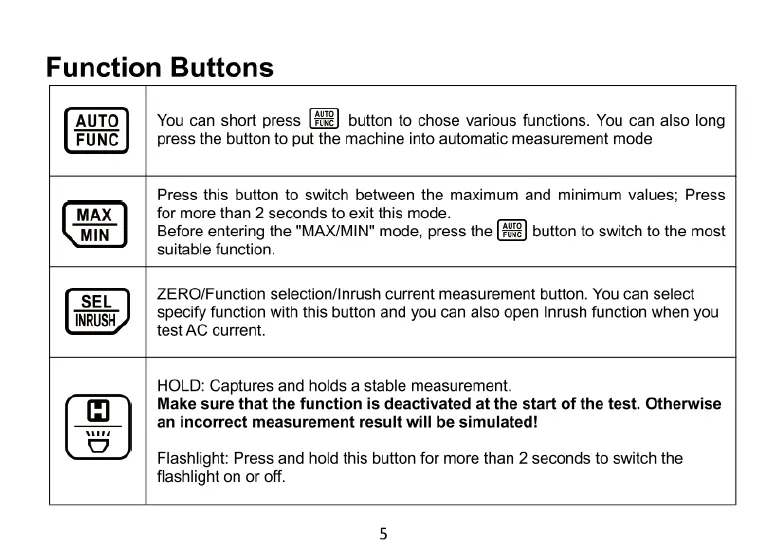

Function Buttons
AUTO] | You can short press button to chose various functions. You can also long
FUNC press the button to put the machine into automatic measurement mode
Press this button to switch between the maximum and minimum values; Press
MAX ] | for more than 2 seconds to exit this mode.
CMIN | | Before entering the "MAX/MIN" mode, press the (2] button to switch to the most
suitable function.
SEL) | ZEROIFunction selection/inrush current measurement button. You can select
TWRUST,) | Specify function with this button and you can also open Inrush function when you
test AC current.
d
HOLD: Captures and holds a stable measurement.
Make sure that the function is deactivated at the start of the test. Otherwise
an incorrect measurement result will be simulated!
Flashlight: Press and hold this button for more than 2 seconds to switch the
flashlight on or off.
