@ Shielded wires/cables, thickness, type of insulation, or complete insulators have an effect on the detection
@ Ploase complete the test on the three lines within 1 minute, otherwise, a detection timeout error will occur, prompted
by the PABC symbol and the P letter flashing. When the timeout error occurs, please return to phase sequence
detection to re-test.
® When the three~phase lines are very close, as far as possible separate the lines to detect, otherwise it is easy to
misjudge.

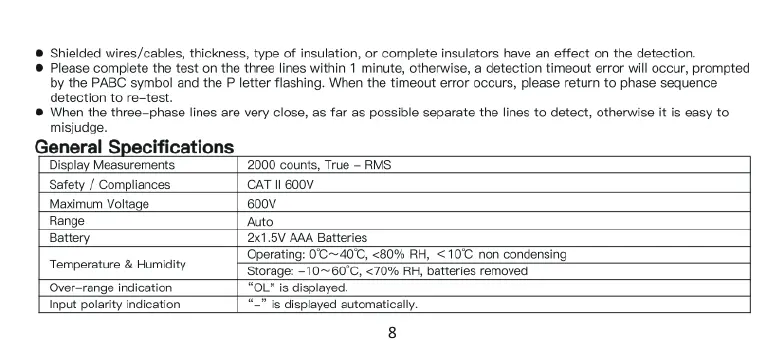

General Specifications
Display Measurements. 2000 counts, True — AMS
Safety / Compliances CAT 11 600V
Maximum Voltage 600V
Range Auto
Battery 41,5V AMA Batteries
Operating: 0C~40'C, <80% RH, <10C non condensing
Storage: ~10~60°C, <70% RH, batteries removed
Over-range indication “OL” is displayed.
Input polarity indication " is displayed automatically.
8
Temperature & Humidity
