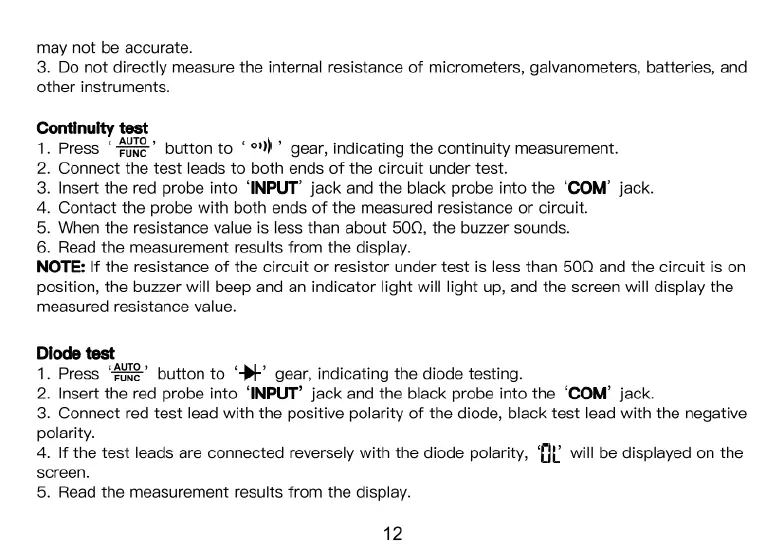

Kaiweets KM601s - Specialized Measurements; Continuity and Diode Test Procedures

may not be accurate.
3. Do not directly measure the interal resistance of micrometers, galvanometers, batteries, and
other instruments.
Continuity test
1. Press ‘fune’ button to ©) * gear, indicating the continuity measurement.
2. Connect the test leads to both ends of the circuit under test.
3. Insert the red probe into “INPUT" jack and the black probe into the ‘COM’ jack.
4. Contact the probe with both ends of the measured resistance or circuit.
5. When the resistance value is less than about 500, the buzzer sounds.
6. Read the measurement results from the display.
NOTE: If the resistance of the circuit or resistor under test is less than 500 and the circuit is on
position, the buzzer will beep and an indicator light will light up, and the screen will display the
measured resistance value.
Diode test
1. Press ‘AR’ button to ‘PF gear, indicating the diode testing.
2. Insert the red probe into ‘INPUT’ jack and the black probe into the ‘COM’ jack.
3. Connect red test lead with the positive polarity of the diode, black test lead with the negative
polarity.
4. If the test leads are connected reversely with the diode polarity, ‘f}}’ will be displayed on the
screen.
5. Read the measurement results from the display.
12
