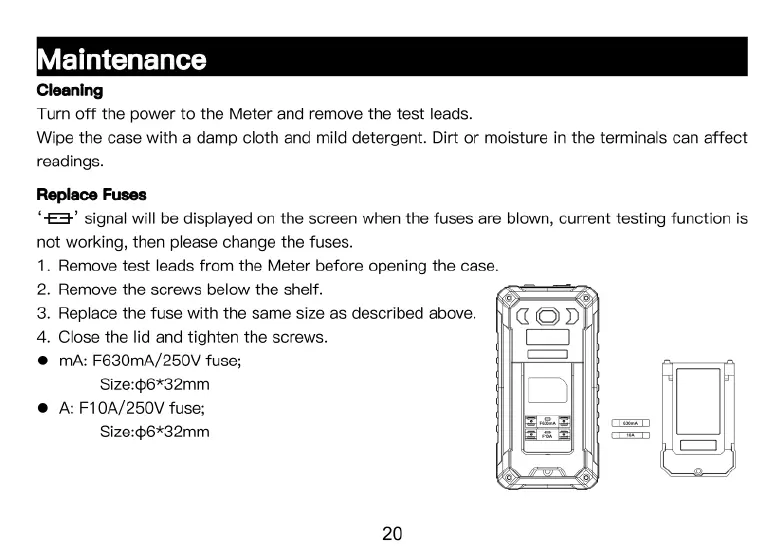

Kaiweets KM601s - Maintenance and Fuse Replacement; Fuse Replacement Procedure

Cleaning
Turn off the power to the Meter and remove the test leads.
Wipe the case with a damp cloth and mild detergent. Dirt or moisture in the terminals can affect
readings.
Replace Fuses
“£3 signal will be displayed on the screen when the fuses are blown, current testing function is
not working, then please change the fuses.
1. Remove test leads from the Meter before opening the case.
2. Remove the screws below the shelf.
3. Replace the fuse with the same size as described above.
4. Close the lid and tighten the screws.
® mA: F630mA/250V fuse;
Size:p6*32mm
® A: F10A/250V fuse;
Size:p6*32mm
20
