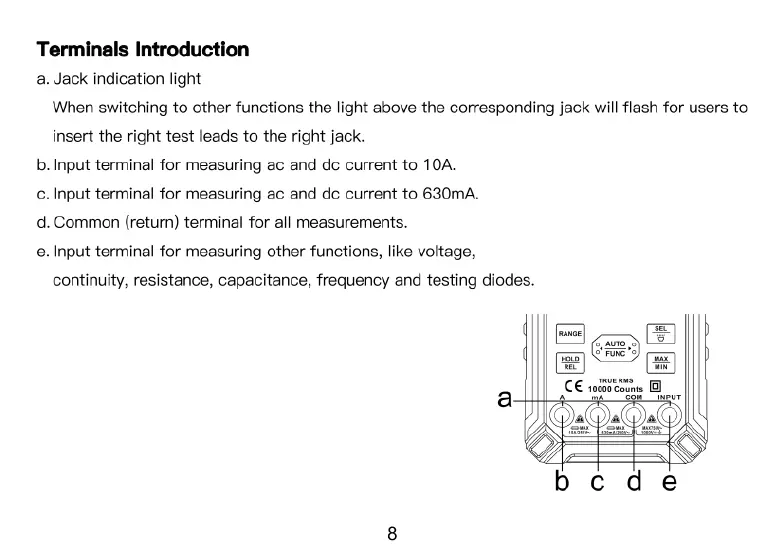

Terminals Introduction
a. Jack indication light
When switching to other functions the light above the corresponding jack will flash for users to
insert the right test leads to the right jack.
b. Input terminal for measuring ac and dc current to 10A.
c. Input terminal for measuring ac and dc current to 630mA.
d. Common (return) terminal for all measurements.
&. Input terminal for measuring other functions, like voltage,
continuity, resistance, capacitance, frequency and testing diodes.
