4. Audio Connection

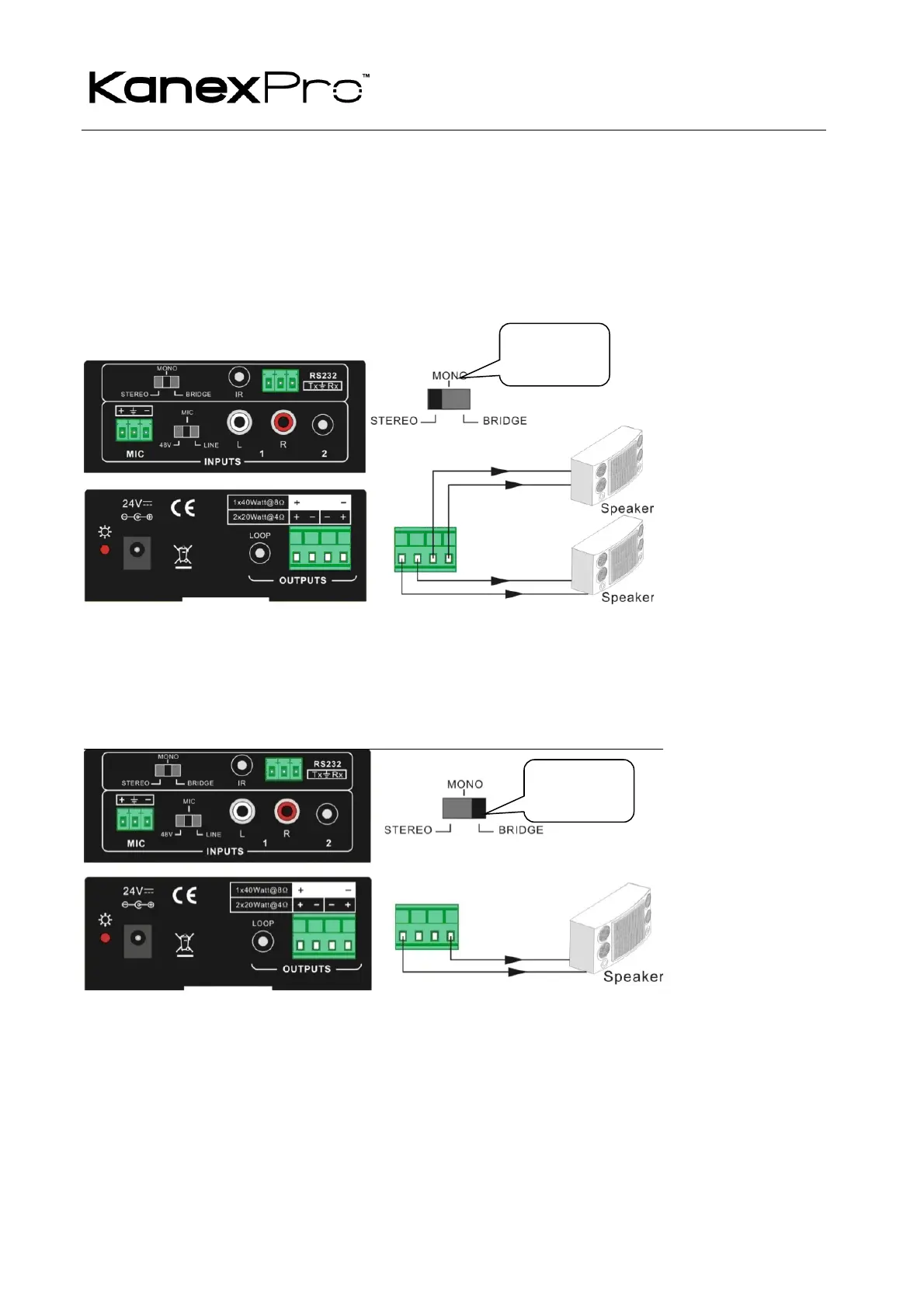

4.1 Audio Output
4.1.1 Default output: 2x20Watt@4Ohm
The default output of amplifier is 2x20Watt@4Ohm, so user can connect the amplifier output in the regular
way. As the picture below:
4.1.2 Bridge connection: 1x40Watt@8Ohm
The AP2DBL has the bridge connection, to double the output power at 1x40Watt@8Ohm. It will sum up the
input left channel and input right channel to be mono output, and the power is up to 40Watt.
The bridge connection is:
Switching to
the “STEREO”
Connecting the four pins, like this
Connecting the two pins, like this
Switching to
the “BRIDGE”
