Jaden Kanga Group

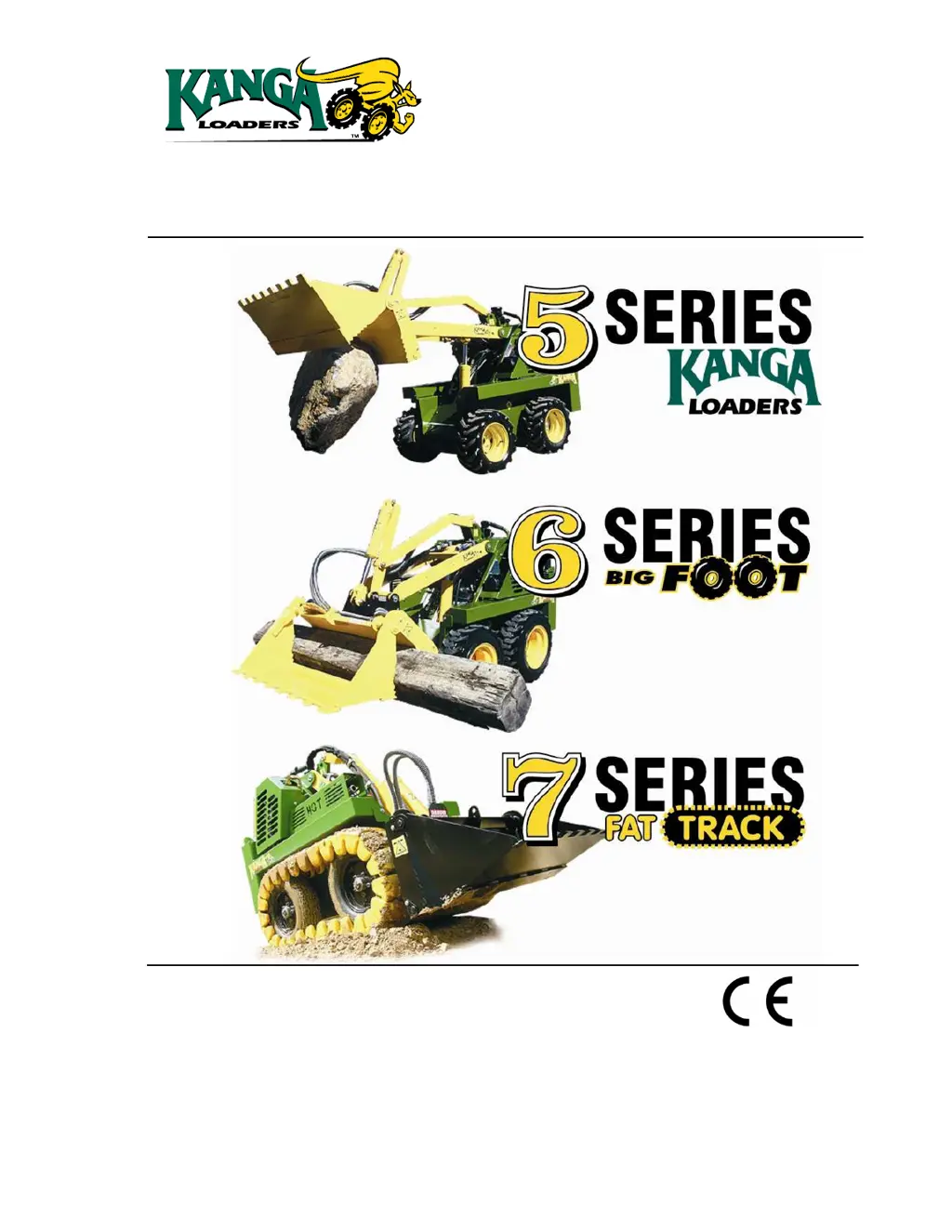

Jaden Kanga – OPERATORS MANUAL Page
1
OPERATORS MANUAL
Patents Pending US 6397967, 438218 & 10/096997 AU 65424/99 UK 2345046
AU Registered Design 138603
JADEN-KANGA GROUP Ph 61 7 5593 4567 Fax 61 7 5593 4398
Email kanga@jaden.com
PO Box 54, Burleigh Heads QLD 4220 Australia

Table of Contents

Questions and Answers

  • K
    Karen JonesAug 17, 2025
    Why my Kanga G-724 machine will not drive forward or backwards?
    • G
      griffinjessicaAug 17, 2025
      If your Kanga Front End Loaders machine won't drive forward or backward, it could be due to several reasons: low hydraulic system oil (check and replenish as necessary, look for leaks), a worn control valve spool (check pressure delivery and repair or replace the valve), a damaged or blocked line (remove any obstructions or replace the line), a broken or disconnected control rod or lever (repair or replace), incorrectly connected hydraulic lines at the control valve (correctly connect the lines), worn or broken drive chains (repair or replace), or a malfunctioning pump (repair or replace).
  • A
    Anita BanksAug 19, 2025
    Why won't the boom raise on my Kanga Front End Loader?
    • D
      djonesAug 20, 2025
      The boom might not raise on your Kanga Front End Loader due to several reasons. It could be that the load capacity has been exceeded; ensure the load does not exceed 250 kg (550 lbs). Other potential causes include a low hydraulic system oil level (check and replenish as necessary), a damaged or blocked hydraulic line (remove obstructions or replace the line), a malfunctioning hydraulic pump (repair or replace), a worn control valve spool (check pressure delivery), a lift control valve relief set too low (adjust the relief valve), or excessive oil leak past the lift cylinder piston seal (repair or replace the cylinder).
  • E
    eortegaAug 22, 2025
    What to do if my Kanga Front End Loader engine will not crank over?
    • T
      Terry NelsonAug 23, 2025
      If your Kanga Front End Loader's engine won't crank over, it could be due to a low battery (recharge or replace), loose, disconnected, or broken battery cables (inspect and tighten connections, repair or replace cables), a faulty starter (repair or replace), faulty circuit wiring (check wiring continuity), or a flooded engine (remove spark plug and crank).
  • P
    penacharlesAug 25, 2025
    What to do if the engine cranks but does not fire on my Kanga Front End Loader?
    • J
      Julia GreeneAug 26, 2025
      If the engine cranks but doesn't fire on your Kanga Front End Loader, possible causes include no fuel in the tank (refill), a fouled spark plug in petrol engines (check the spark plug gap and clean or replace), a dirty fuel filter (clean the filter), a carburetor flood in petrol engines (clear the carburetor), or a closed fuel valve (open the valve).
  • D
    David CarterAug 27, 2025
    Why is the attachment slow or not functioning on my Kanga Front End Loader?
    • A
      Adam HowardAug 27, 2025
      If the attachment on your Kanga Front End Loader is slow or not functioning, it could be due to low hydraulic system oil (check and replenish, look for leaks), a damaged or blocked line (remove obstructions or replace the line), a malfunctioning pump (repair or replace), a worn control valve spool (check pressure delivery, repair or replace the valve), a seized or damaged attachment plate pivot pin (replace pivot pin and bushing and grease), excessive oil leak past the cylinder piston seal or motor rotating group (repair or replace cylinder motor), or a broken or disconnected control rod or lever (repair or replace).
  • P
    Patrick MartinAug 30, 2025
    What causes erratic boom movement in my Kanga Front End Loaders?
    • C
      Caitlin VanceAug 30, 2025
      Erratic boom movement in your Kanga Front End Loaders can be caused by: * A lift control valve relief set too low, allowing oil to return to the reservoir (adjust the relief valve). * Low hydraulic system oil (check and replenish as necessary, look for leaks). * A damaged or blocked line (remove obstructions or replace the line). * A malfunctioning pump (repair or replace). * A worn control valve spool (check pressure delivery and repair or replace the valve). * Excessive oil leak past the lift cylinder piston seal (repair or replace the cylinder). * A seized or damaged boom pivot pin (replace the pivot pin and bushing and grease).
  • R
    Robert ScottSep 1, 2025
    Why is the hydraulic pump so noisy on my Kanga Front End Loader?
    • D
      Desiree TranSep 2, 2025
      A noisy hydraulic pump on your Kanga Front End Loader could be due to air in the hydraulic system (check the suction side for defects and ensure no leaks exist in the suction line), low hydraulic system oil (check and replenish as necessary, look for leaks), a worn or broken drive shaft or coupling (inspect and repair or replace), or worn or chipped pump gears (repair or replace).
  • L
    Larry DavisSep 4, 2025
    Why does my Kanga Front End Loader engine run but then stall?
    • J
      John WalterSep 4, 2025
      If your Kanga Front End Loader engine runs but stalls, it could be due to a fouled spark plug in petrol engines (check the spark plug gap and clean or replace), a closed fuel valve (open the valve), low battery output (recharge or replace the battery), or the power take-off engaged (shift the power take-off lever into neutral).
  • C
    Carl WellsSep 6, 2025
    What causes the drive speed to be erratic on my Kanga Front End Loader?
    • C
      Christine WardSep 6, 2025
      Erratic drive speed on your Kanga Front End Loader could be caused by low hydraulic system oil (check and replenish, look for leaks), a damaged or blocked line (remove obstructions or replace the line), binding drive motor(s) (repair or replace), loose drive chain(s) (check the chain tensioner, adjust or repair), or the relief valve setting (adjust the relief valve).
  • C
    christopher74Sep 9, 2025
    Why won't the boom arm raise, or why does it raise so slowly on my Kanga G-724?
    • J
      Jeffery OwensSep 9, 2025
      The boom arm on your Kanga Front End Loaders might not raise, or might raise slowly, due to several potential issues: a lift control valve relief set too low (adjust the relief valve), a worn control valve spool (check pressure delivery), excessive oil leak past the lift cylinder piston seal (repair or replace the cylinder), a broken or disconnected control rod or lever (repair or replace), or hydraulic lines incorrectly connected at the control valve (correctly connect the lines).

Summary

SAFETY

HOW TO CONTACT US

PREPARATION FOR USE

SAFE OPERATION

Safe Loading;Unloading and Transportation

Procedures for safely loading, unloading, and transporting the Kanga Loader.

Before Commencing Work

Checks and procedures to perform before starting work.

SAFETY-Summary

NO GO ZONES FOR UNDERGROUND UTILITY SERVICES

SAFE - JOB SAFETY CHECK SHEET

TASK PLANNING FOR THE KANGA LOADER

RISK RANKING CHART

SAFETY - Rules for Attachments

LOG SPLITTER SAFETY RULES

FORK LIFT TYNES SAFETY RULES

ANGLED BACK-FILL BLADE SAFETY RULES

LOADER BOOM MAINTENANCE

4 IN 1 BUCKET SAFETY RULES

TERMINATOR STUMP GRINDER SAFETY RULES

TRENCHER SAFETY RULES

POST HOLE AUGER & TREE PLANTER AUGER SAFETY RULES

ROTARY HOE (TILLER) SAFETY RULES

BUCKET BROOM SAFETY RULES

OPERATING INSTRUCTIONS

BEFORE STARTING

Checks required before starting the engine and machine.

STARTING

Steps for starting the engine and machine safely.

CONTROLS

PARKING AND SHUTDOWN

UNLOADING AND LOADING ON A RAMP

MANOEUVRING

SAFE AND EFFICIENT USE OF BUCKETS

DAILY OPERATOR MAINTENANCE

OPERATOR MAINTENANCE - SAFETY CHECKS

SERVICE CHART

SERVICE TASKS - Hydraulics

Hydraulic Pressure Settings

SERVICE TASKS - Grease Nipple

SERVICE TASKS - Tyre Pressure

SERVICE TASKS - Battery

SERVICE TASKS - Drive Chain

SERVICE TASKS - Pivot Pins

TROUBLESHOOTING

Boom

Troubleshooting common issues related to the loader boom.

Drive System

Hydraulic Pump

Auxiliary Hydraulic

Engine

TRACKS (Series 7 only) - Safety;Parts

TRACKS INSTALLATION

spare parts

DRIVE TRAIN - ASSEMBLY DRAWING

Exploded view and parts list for the drive train components.

MAIN FRAME & ARM 5, 6 & 7 SERIES - ASSEMBLY DRAWINGS

MAIN FRAME - PARTS LIST

ENGINE & HYDRAULICS 5 SERIES - ASSEMBLY DRAWINGS

ENGINE & HYDRAULICS - PARTS LIST

HYDRAULIC CONNECTIONS - Series 5

HYDRAULIC CONNECTIONS - Series 6

HYDRAULIC CONNECTIONS - Series 7

DECALS

HOW TO ORDER SPARE PARTS

attachments

HYDRAULIC ATTACHMENT CONNECTIONS

Explains how to connect hydraulic attachments using QRCs.

4 IN A BUCKET

ROTARY HOE (TILLER) SAFETY RULES

STANDARD AUGER POWER HEAD

HIGH TORQUE AUGER POWER HEAD

POWER HEAD OPERATING INSTRUCTIONS

STANDARD TRENCHER

HEAVY DUTY KC TRENCHER

KC TRENCHER CRUMBER BAR

TRENCHER OPERATING INSTRUCTIONS

SETTING THE TRENCHING VALVE

How to set the trenching valve for optimal performance.

BUCKET BROOM

warranty

1 Year or 1000 Hour Warranty

Details the standard warranty period and coverage.

Purchasers Responsibilities

Outlines the owner's duties for warranty validation and service.

Exclusions (No Warranty)

Lists items and conditions not covered by the warranty.

LIMITATION OF REMEDY AND DAMAGES

DISCLAIMER OF FURTHER WARRANTY

SPARE PARTS WARRANTY: 6 MONTHS

SPECIFICATIONS - 5 Series

DIMENSIONS - 6 Series

SPECIFICATIONS - 6 Series

SPECIFICATIONS - 7 Series

DIMENSIONS - 7 Series

JOB SAFETY AND ENVIRONMENTAL ANALYSIS (JSEA) WORKSHEET

Kanga G-724 Specifications
