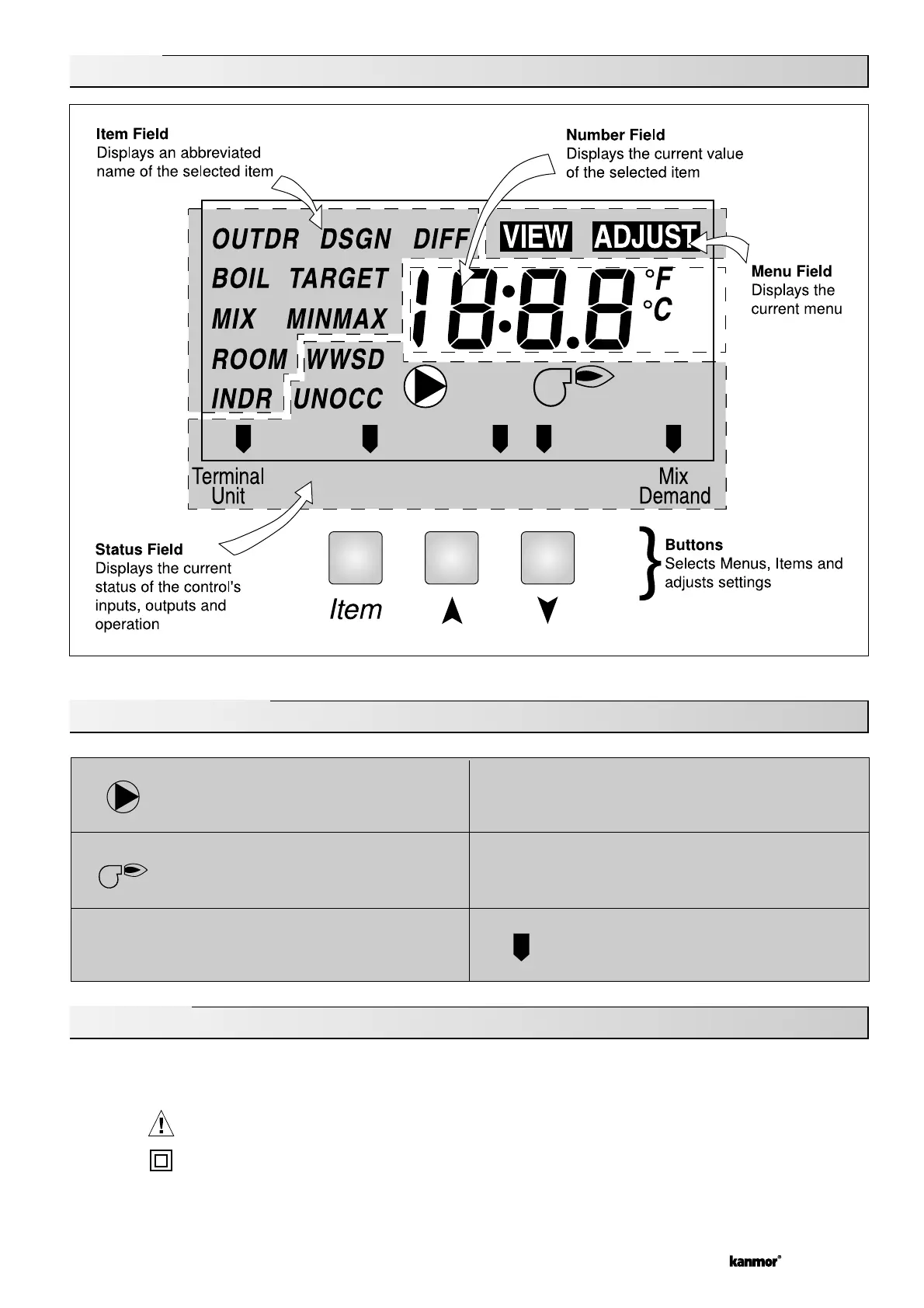

Symbol Description
Display
Defi nitions
The following defined terms and symbols are used throughout this manual to bring attention to the presence of hazards of various
risk levels, or to important information concerning the life of the product.
- Warning Symbol: Indicates presence of hazards which can cause severe personal injury, death or
substantial property damage if ignored.
- Double insulated
- Local level, appliances
INSTALLATION
CATEGORY II
OCC
UNOCC
°F, °C
Pump
Displays when the mixing system pump is in
operation.
Burner
Displays when the boiler relay is turned on.
Occupied Schedule
Displays when the control is in occupied (Day)
mode.
Unoccupied Schedule
Displays when the control is in unoccupied
(Night) mode.
°F, °C
Displays the unit of measure that all of the tem-
peratures are to be displayed in the control.
Pointer
Displays the control operation as indicated by
the text.
OpenMotor
Speed
Close
