BOILER ENABLE (30% Enable / 10% Enable)
The 360e has a DIP switch that allows for the selection between a 30% boiler enable and a 10% boiler enable. This switch is
only functional when the Boiler Sensor DIP switch is set to Return.
In the 30% position, the 360e closes the Boiler contact when the position of the mixing valve exceeds 30%. The Boiler contact
remains closed until the position of the mixing valve reduces below 15%. This setting would normally be chosen for low mass
boilers (copper fin-tube, etc.) or systems with low thermal mass in the loop between the boiler and the mixing valve.
In the 10% position, the 360e closes the Boiler contact when the position of the mixing valve exceeds 10%. The Boiler contact
remains closed until the position of the mixing valve reduces below 5%. This setting is normally chosen for high mass boilers
(cast iron, steel, fire-tube, etc.) or systems with large thermal mass in the loop between the boiler and the mixing valve.
In order to prevent short cycling, the Boiler contact has a minimum on time, and a minimum off time.
CAUTION
Improper installation and operation of this control could result in damage to the equipment and possibly even personal injury.
It is your responsibility to ensure that this control is safely installed to all applicable codes and standards. This electronic
control is not intended for use as a primary limit control. Other controls that are intended and certified as safety limits must
be placed into the control circuit. Do not open the control. Refer to qualifed personnel for servicing. Opening voids warranty
and can result in damage to the equipment and possibly even personal injury.
STEP ONE
GETTING READY
Check the contents of this package. If any of the contents listed are missing or damaged, please contact your wholesaler or
kanmor sales representative for assistance.
Type 360e includes: One Mixing Control 360e, One Outdoor Sensor 070e, Two Universal Sensors 071e, Data
Brochures D 360e, D 070e, Essay E 021e.
Note: Carefully read the details of the Sequence of Operation t o e n s u r e t h a t y o u h a v e c h o s e n t h e proper control for your application.
STEP TWO
MOUNTING THE BASE

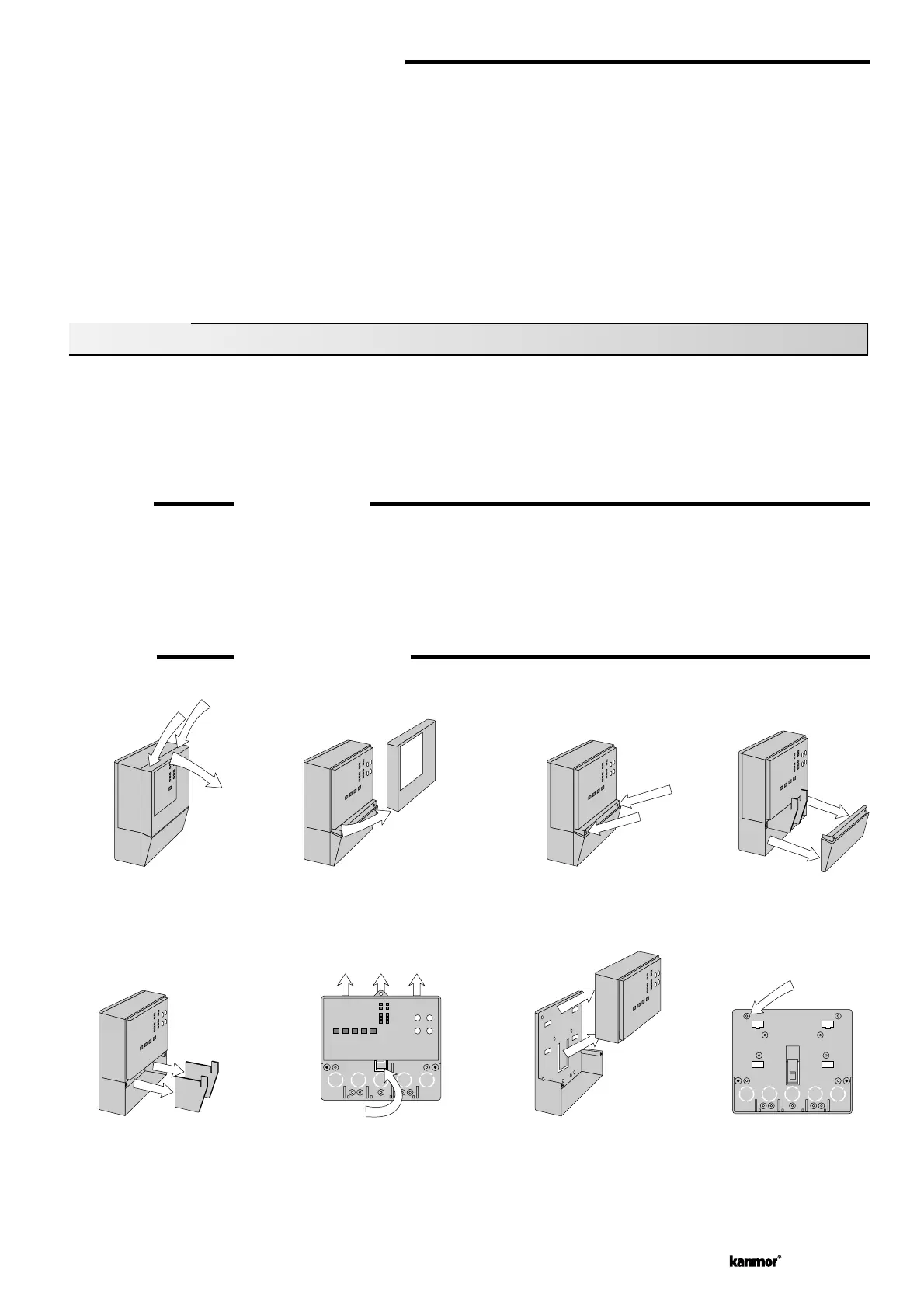

Installation
Press down at the fingertip
grips on top of the front cover
and pull out and down.
Lift the front cover up and
away from the control.
Loosen the screws at the
front of the wiring cover.
The wiring cover pulls
straight out from the
wiring chamber.
Remove the safety dividers
from the wiring chamber by
pulling them straight out of
their grooves.
Press the control release
clip on the base inside the
wiring chamber and slide
the control upwards.
The control lifts up and away
from the base.
The base is ready for
mounting. There are
10 conduit knock-
outs at the back and
bottom of the wiring
chamber.
Release Clip
13 mounting holes
To Next Page
