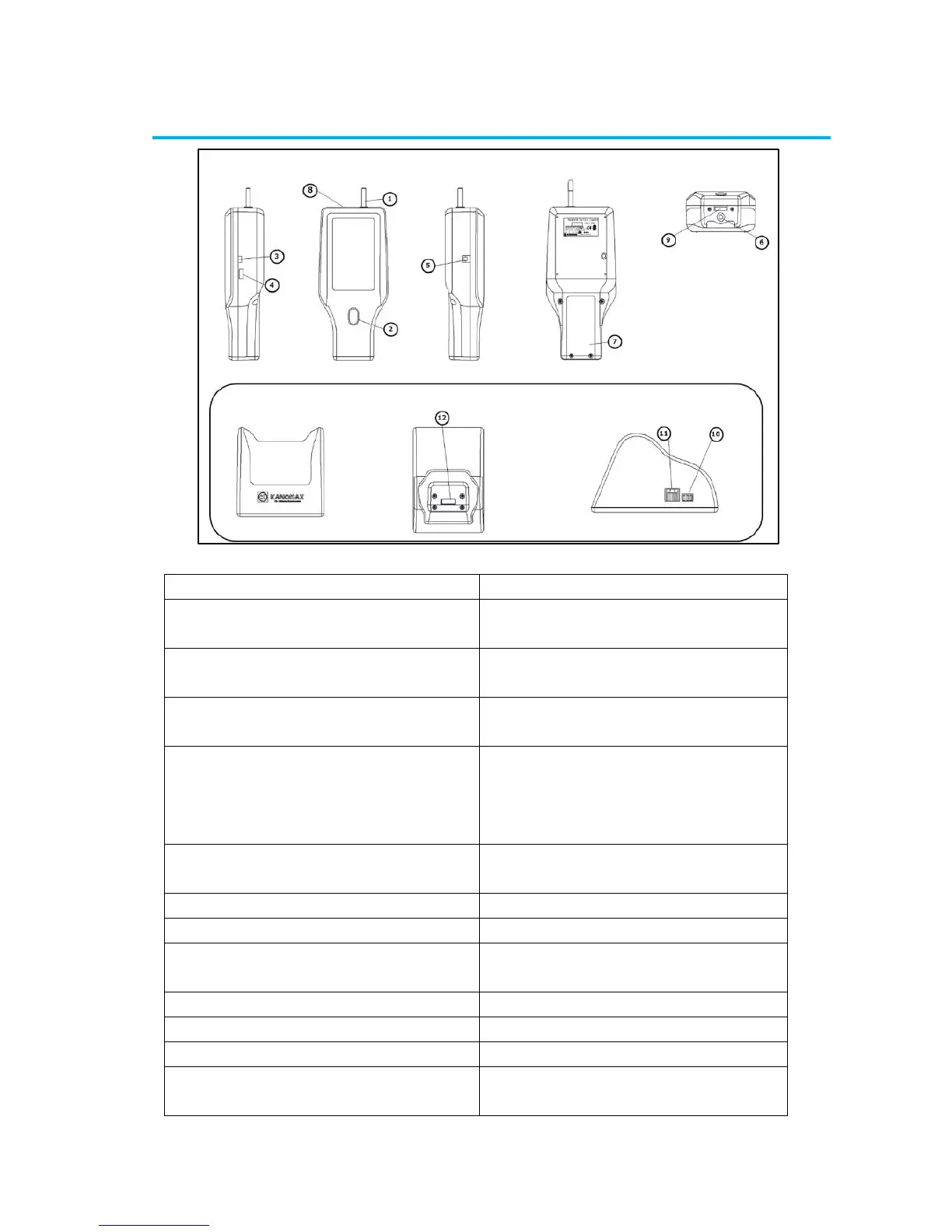

Part Names and Functions §１
The cradle is an optional accessary.
Names
Functions
1. Inlet
2.83L/min suction volume
Outer diameter 6.4mm
2. Power/Home button
Turns the power ON/OFF
To return to the Main screen in operation
3. USB port (for PC)
Connects with your PC by using the USB
cable
4. USB port (for Printer, for USB flash
memory)
Connects with the printer by using the
USB cable
Allows you to copy the measurement
results to the USB flash drive
5. DC jack
Supplies power with the provided AC
adaptor
6. Threaded tripod mount
Attaches instrument to the tripod
7. Battery compartment
The battery is replaceable
8. Temperature/Humidity probe terminal
(only for 3889)
Connects the temperature/humidity
probe
9. Communication port with cradle
Communicates with the cradle
10. Communication port
RS-485 port
11. Communication port
Communicates with the Ethernet
12. Communication port with the Main
body
Communicates with the main body
