FRONT PANELS
9
KPC-2400

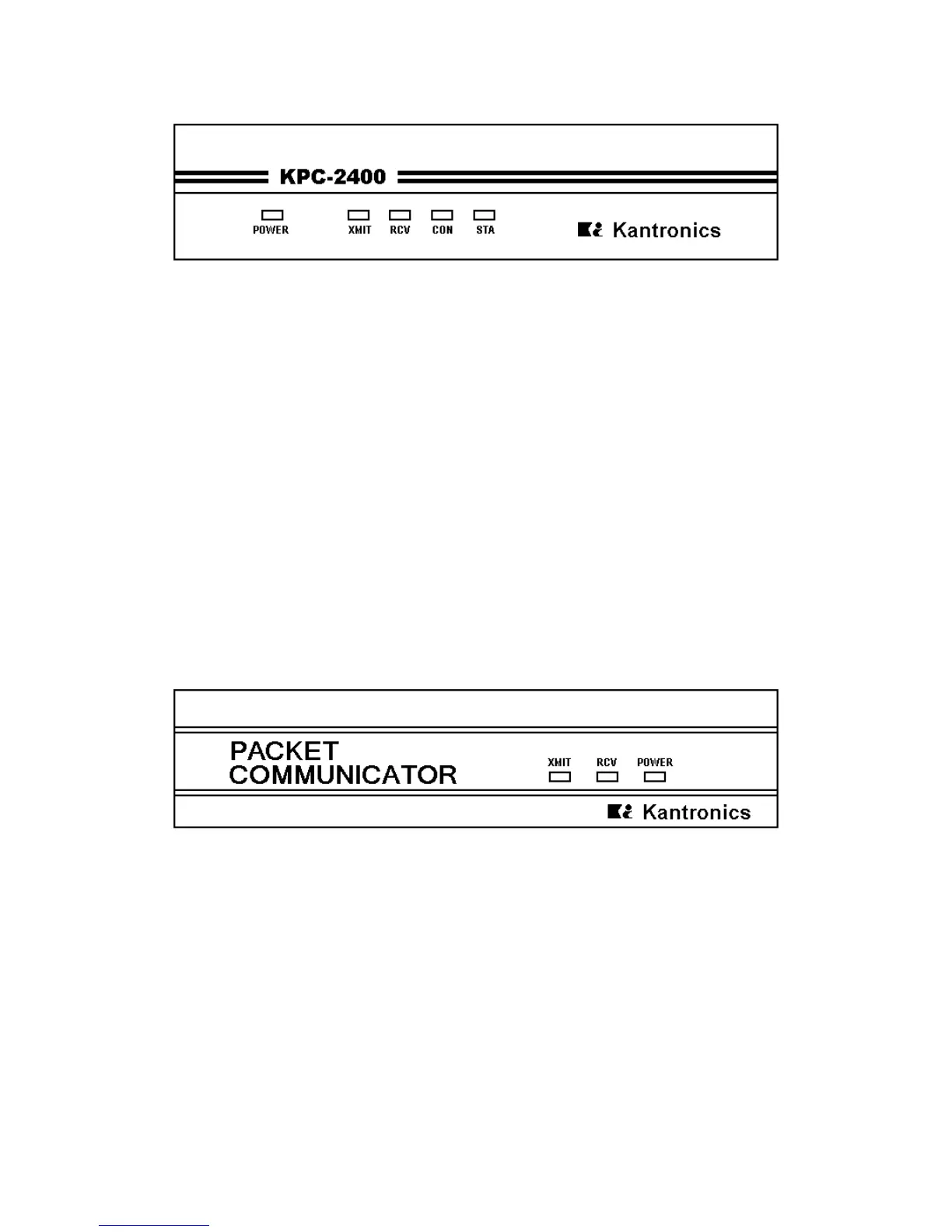

The front panel has five LED indicators which provide information as follows:
POWER – This LED illuminates when power is applied. The power ON/OFF switch is located on
the rear panel.
XMIT – This LED illuminates when the TNC keys the PTT line of your radio to send data.
RCV – This LED illuminates when the TNC detects a signal on the radio frequency.
CON – This LED illuminates when you have a Packet connection on the current stream. The cur-
rent stream is the stream to which the I/O is directed. (See STREAMSW in the Commands Man-
ual.)
STA – This LED illuminates when the TNC has outgoing packets which have not been acknow-
ledged on the current stream. Also, if the CON light is OFF, the STA light is used to indicate PBBS
status – ON steady indicates someone is connected to the PBBS and blinking indicates mail in the
Kantronics TNC for you.
KPC-1
The front panel has three LEDs which provide information as follows:
POWER – This LED illuminates when power is applied. The power ON/OFF switch is located on
the rear panel.
XMIT – This LED illuminates when the TNC keys the PTT line of your radio to send data.
RCV – This LED illuminates when the TNC detects a signal on the radio frequency.
