[ANDROID NAVIGATION]
ROiK-10

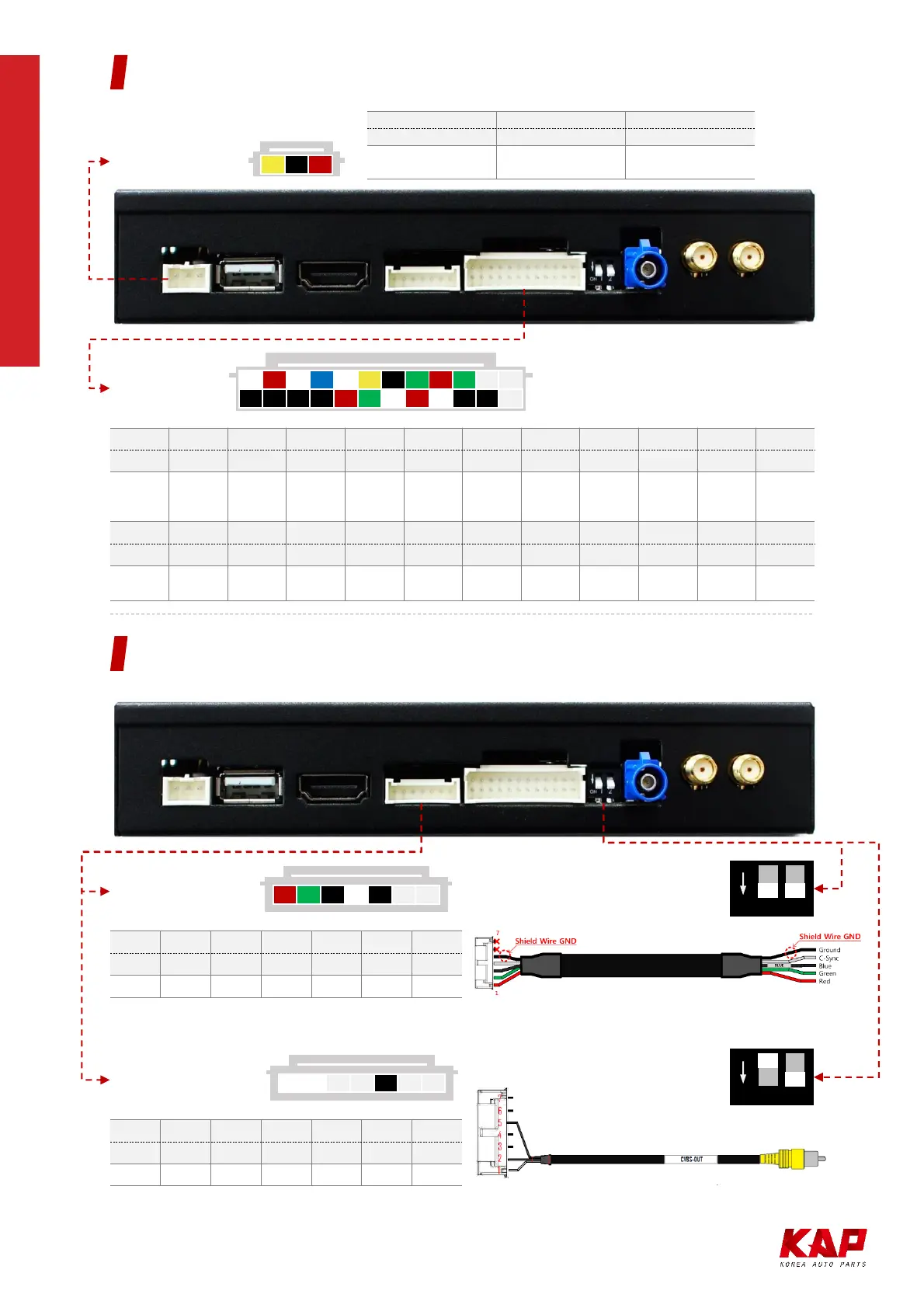

CONNECTOR PIN ASSIGNMENT – POWER / AV
CONNECTOR PIN ASSIGNMENT – RGB OUT / CVBS OUT
1 2 3
1 2 3
Yellow Black Red
BATTERY Power GND ACC 12V IN
POWER
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
Power Cable
(POWER/CAN)
AV Cable
(AV IN/OUT)
1 3 5 7 9 11 13 15 17 19 21 22
White Red White Blue White Yellow Black Green Red Green
Speaker +
Touch
Interrupt
Touch X- Touch X+ UART TX UART RX NC NC
2 4 6 8 10 12 14 16 18 20 22 24
Black Black Black Black Red Green White Red White Black Black
Speaker - GND GND GND
Touch Y- Touch Y+ MIC + MIC - NC NC
AV/IN OUT
RGB OUT DIP S/W
1 2
ON
1 2 3 4 5 6 7
RGB OUT Cable
(RGB OUT)
1 2 3 4 5 6 7
Red Green Black White Black
Red Green Blue C-Sync GND NC NC
1 2
ON
1 2 3 4 5 6 7
CVBS OUT Cable
(RGB OUT)
1 2 3 4 5 6 7
White White Black
CVBS CVBS NC NC GND NC NC
To Next Page
