9.800-414.0 • Rev. 11/09
OPERATOR’S MANUAL
PRESSURE WASHER
16

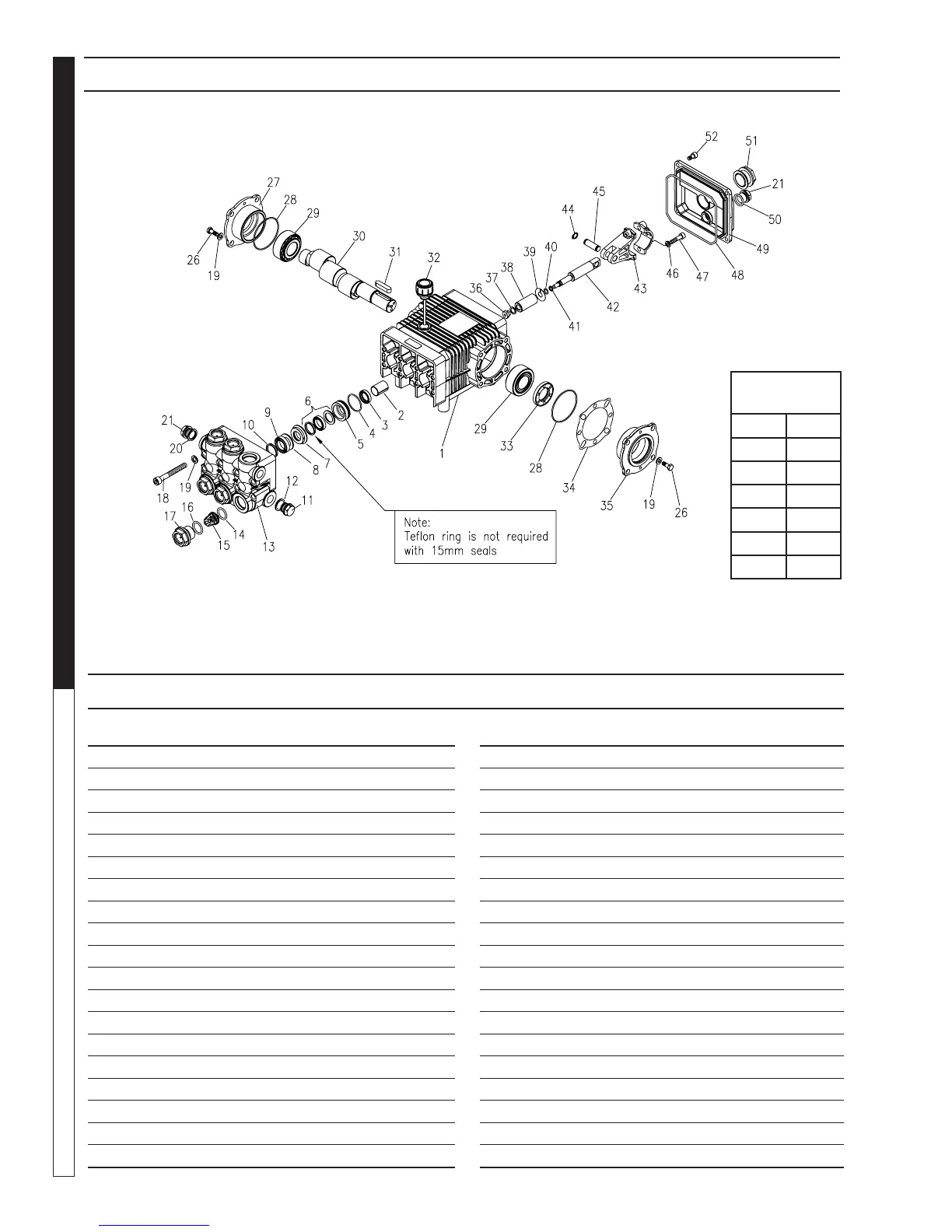

M.2 SERIES PUMP EXPLODED VIEW
ITEM PART NO. DESCRIPTION QTY
1 8.933-012.0 Crankcase 1
2 9.803-196.0 Plunger Guide 3
3* See Kits
Plunger Oil Seal 3
4* See Kits O-Ring Ø1.78 x 31.47 3
5* See Kits Pressure Ring 3
6* See Kits U-Seal 3
7* See Kits Intermediate Ring 3
8* See Kits Back-up Ring 3
9* See Kits U-Seal 3
10* See Kits Support Ring 3
13 9.802-932.0 Manifold Head 1
14* See Kits O-Ring Ø2.62 x 17.13 6
15* See Kits Valve Assembly 6
16* See Kits O-Ring Ø2.62 x 20.29 6
17 9.802-928.0 Valve Plug 6
18 9.802-938.0 Manifold Stud Bolt 8
19 9.802-884.0 Washer 16
20 9.803-198.0 Copper Washer 3/8 1
21 9.802-925.0 Brass Plug 3/8 1
ITEM PART NO. DESCRIPTION QTY
26 9.802-944.0 Hexagonal Screw 8
27 8.717-210.0 Closed Bearing Housing 1
28 9.803-192.0 O-Ring Ø1.78 x 60.05 2
29 8.933-011.0 Tapered Roller Bearing 2
30 9.803-146.0 Crankshaft (5030, 3540) 1
9.803-147.0 Crankshaft
(4030, 4035, 6035)
1
31 9.803-167.0 Crankshaft Key 1
32 9.802-921.0 Oil Dip Stick 1
33 9.803-140.0 Crankshaft Seal 1
34 9.803-178.0 Shim 2
35 8.717-209.0 Bearing Housing 1
36* See Kits Plunger Bolt 3
37* See Kits Copper Spacer 3
38* See Kits O-Ring Ø1.78 x 7.66 3
39* See Kits Teflon Ring 3
40* See Kits Plunger (4035, 6035) 3
See Kits Plunger (4030, 5030) 3
See Kits Plunger (3540) 3
41* See Kits Copper Spacer 3
TORQUE
SPECS
Item # Ft.-lbs
17 75
18 30
26 8
36 7
47 13
52 7.6
KM.2 PUMP EXPLODED VIEW PARTS LIST
9.802-343.0
8.904-734.0
8.904-866.0
