9.800-414.0 • Rev. 11/09
OPERATOR’S MANUAL
PRESSURE WASHER
18

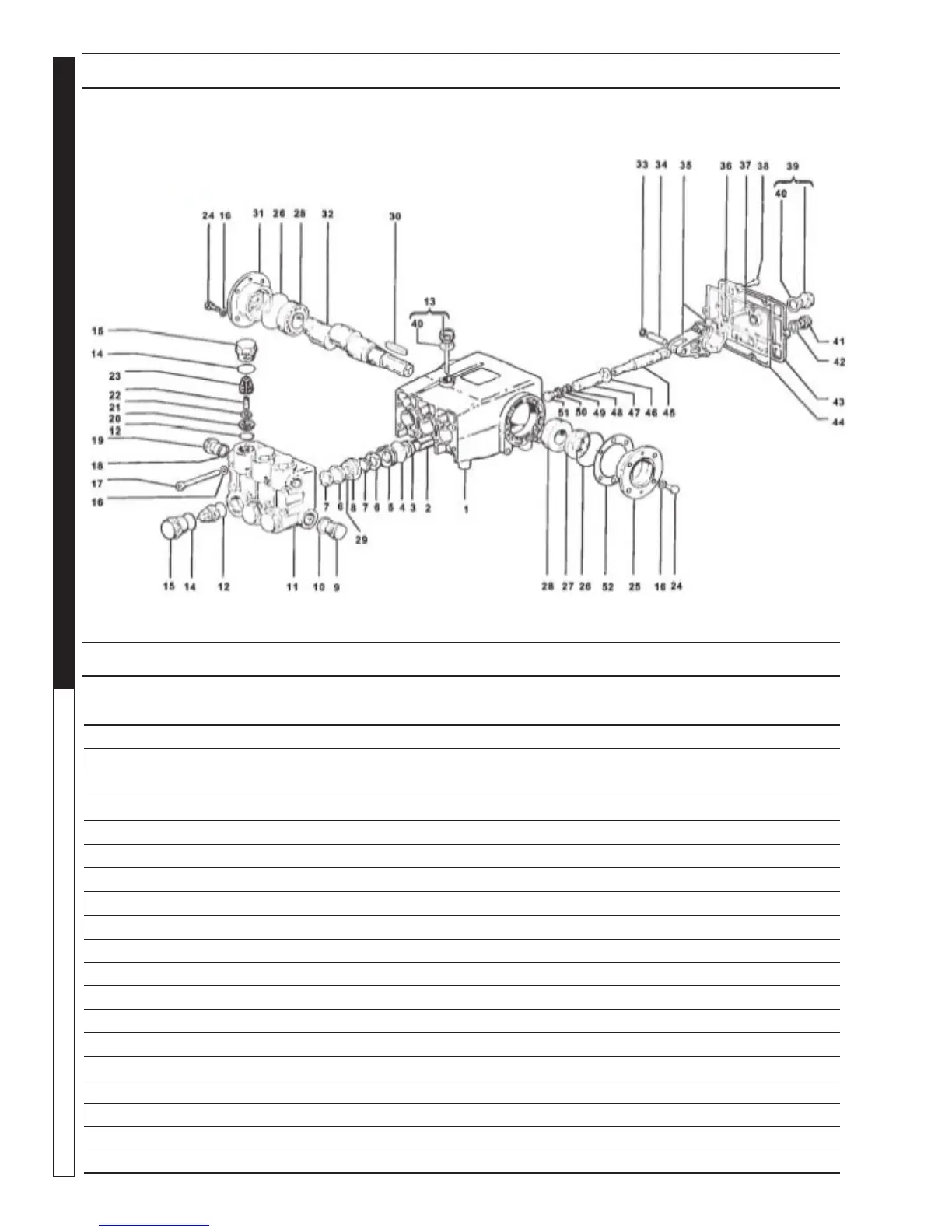

HHC 930 PUMP EXPLODED VIEW
HHC 930 PUMP PARTS LIST
8.715-242.0
ITEM PART NO. DESCRIPTION QTY
1 636930 Crankcase 1
2 860360 Plunger Guide 3
3
▼❖
Plunger Seal 3
4
▼◆
Pressure Ring O-Ring 3
5
▼
Pressure Ring 20 mm 3
6
▼◆
V-Sleeve 20 mm 6
7
▼◆
Support Ring 20 mm 6
8
▼
Intermediate Ring 20 mm 3
9 915630 Plug 3/8" 1
10 780565 Copper Washer 3/8" 1
11 784930 Manifold Housing 1
12
★
Valve Seat O-Ring 6
13 835280 Oil Dipstick 1
14
★
Manifold Plug O-Ring 6
15 829939 Manifold Plug 6
16 936931 Lock Washer 8
780560 Washer 8
17 875937 Manifold Stud Bolt 8
18 836932 Copper Washer 1/2" 1
