9.800-414.0 • Rev. 11/09
OPERATOR’S MANUAL
PRESSURE WASHER
20
9.802-345.0

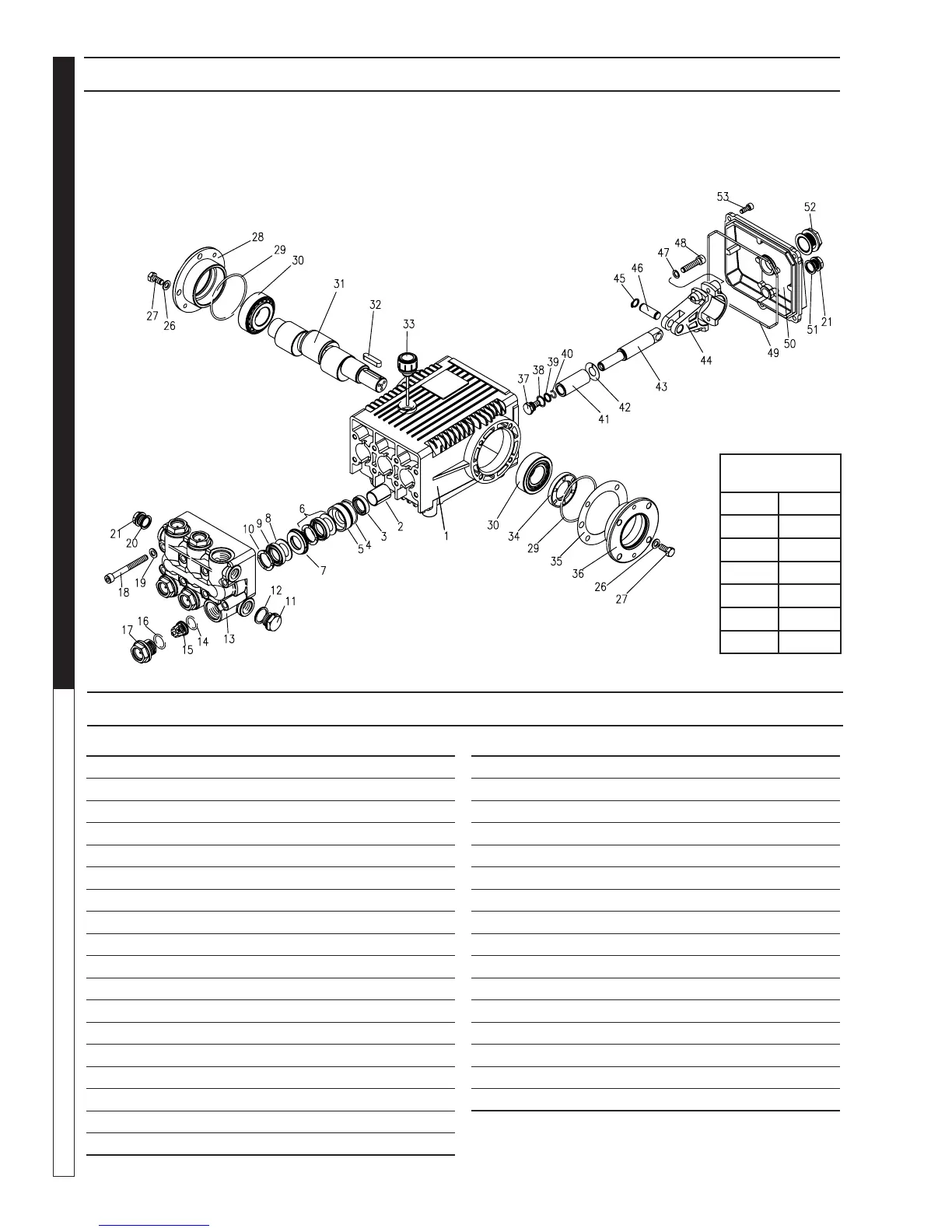

T.1 SERIES PUMP EXPLODED VIEW
T.1 SERIES PUMP EXPLODED VIEW & PARTS LIST
TORQUE SPECS
Item # Ft.-Lbs.
17 75
18 45
27 18
37 10
48 30
53 7.6
ITEM PART NO. DESCRIPTION QTY
1 9.804-604.0 Crankcase 1
2 9.803-195.0 Plunger Guide 3
3* See Kit
Plunger Oil Seal 3
4* See Kit
O-Ring Ø1.78 x 31. 47 3
5* See Kit
Pressure Ring, Brass 3
6* See Kit
"U" Seal Low Pressure 3
7* See Kit
Intermediate Ring, Brass 3
8* See Kit
Support Ring, Teflon Bronze 3
9* See Kit
"U" Seal High Pressure
3
10* See Kit
Support Ring 3
11 9.802-926.0 Brass Plug, 1/2" 1
12 9.803-199.0 Copper Washer 1/2" 1
13 9.802-933.0 Manifold Head 1
14* See Kit
O-Ring Ø2.62 x 17.13 6
15* See Kit
Valve Assembly 6
16 See Kit
O-Ring Ø2.62 x 20.29 6
17 9.802-928.0 Valve Plug 6
18 9.802-943.0 Manifold Stud Bolt 1
ITEM PART NO. DESCRIPTION QTY
19 9.802-890.0 Washer 8
20 9.803-198.0 Copper Washer 3/8" 1
21 9.802-925.0 Brass Plug 3/8"
1
26 9.802-884.0 Washer 8
27 9.802-944.0 Hexagonal Screw
8
28 9.803-182.0 Closed Bearing Housing
1
29 9.803-186.0 O-Ring Ø2.62 x 71.12 2
30 9.803-160.0 Roller Bearing, Tapered 2
31 9.803-149.0 Crankshaft (4035.1) 1
32 9.803-167.0 Crankshaft Key 1
33 9.802-923.0 Oil Dip Stick 1
34 9.803-139.0 Crankshaft Seal 1
35 9.803-177.0 Shim 2
36 9.803-181.0 Bearing Housing 1
37* See Kit
Plunger Bolt 3
38* See Kit
Copper Spacer 38
To Next Page
