Unit functions

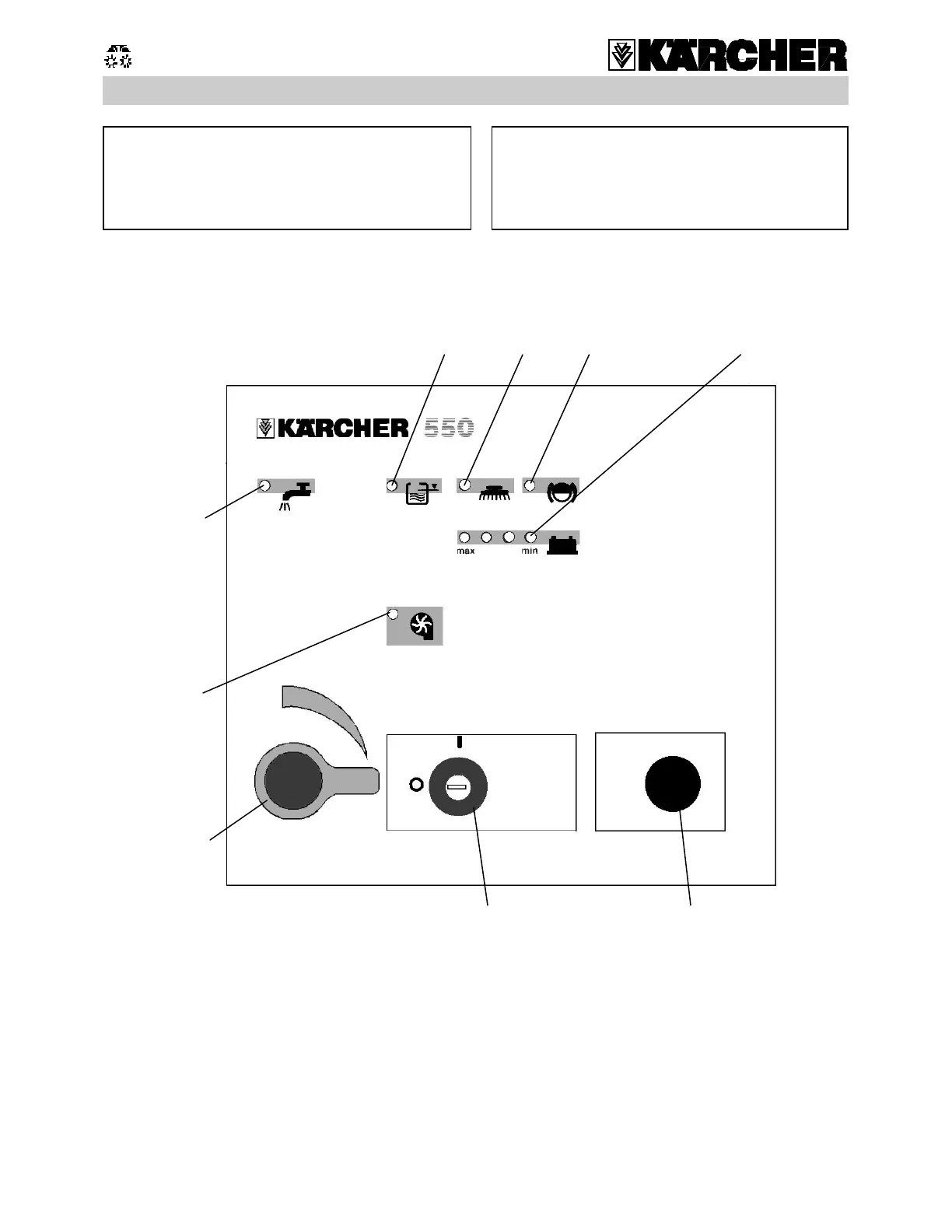

Instrument panel
1
/
2
3
4
5
6
7
8
9
1
0
1 Master switch (mains-powered unit only)
2 Emergency-stop switch (battery-powered unit only)
3 Key switch (battery-powered unit only)
4 Water supply control knob and water pump on/off switch
5 Suction turbine sealed pushbutton with indicator light (green)
6 Water pump indicator light (green)
7 Dirty-water tank full indicator light (red)
8 Brush overload indicator light (red)
9 Parking brake indicator light (red)
10 Battery charge indicator lights (3 green, 1 red) (battery-powered unit only)
