Kärcher BR 550 BAT - Schematic Diagram

BR/BD 550
New Product Information
Service-Information-
International
No. 90/95 dated 18 Dec 1995
_________________________________________________________________________________________________
International Service Information Page 7/33
Unit functions

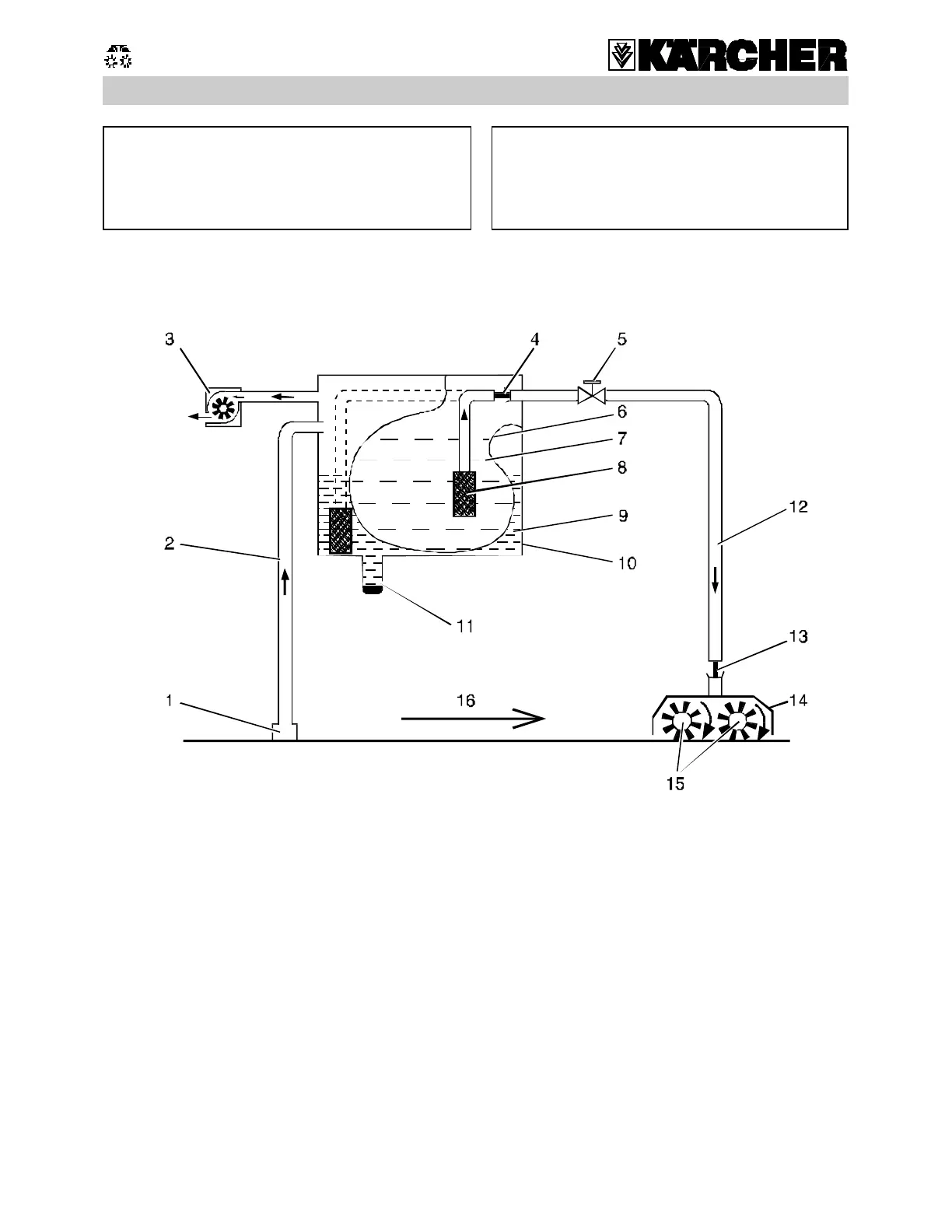

Schematic diagram
1 Suction bar
2 Dirty-water suction hose
3 Suction turbine
4 Hose coupling
5 Water control valve
6 Fresh-water membrane bag
7 Fresh-water storage
8 Water pump with filter
9 Dirty-water tank
10 Water tank
11 Dirty-water drain hose
12 Fresh-water feed hose
13 Hose coupling
14 Cleaning head
15 Brush rollers or circular brush
16 Direction of working motion
