ASSEMBLY INSTRUCTIONS

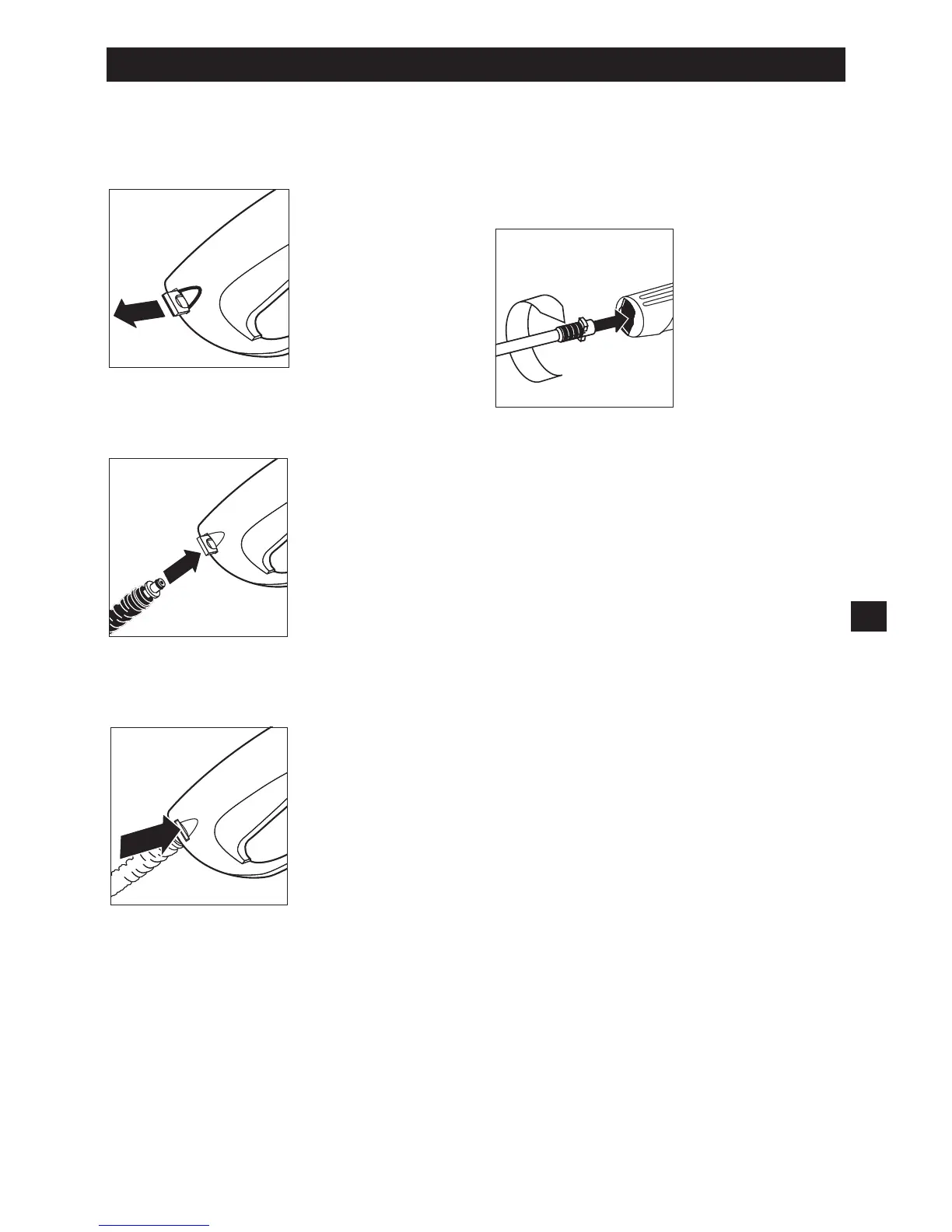

Step 1
Push the clip from the other side if it is
completely set. Use a small screwdriver to
help push out of the locking clip.
Step 2
Insert the small end of the high pressure
hose into place.
Step 3
Push the locking slide back into the trigger
gun to lock the hose in position.
Step 4
Insert the spray wand into the gun. Push in
and turn clockwise to lock spray wand in
place. Turn the wand collar clockwise onto
the spray wand threads.
